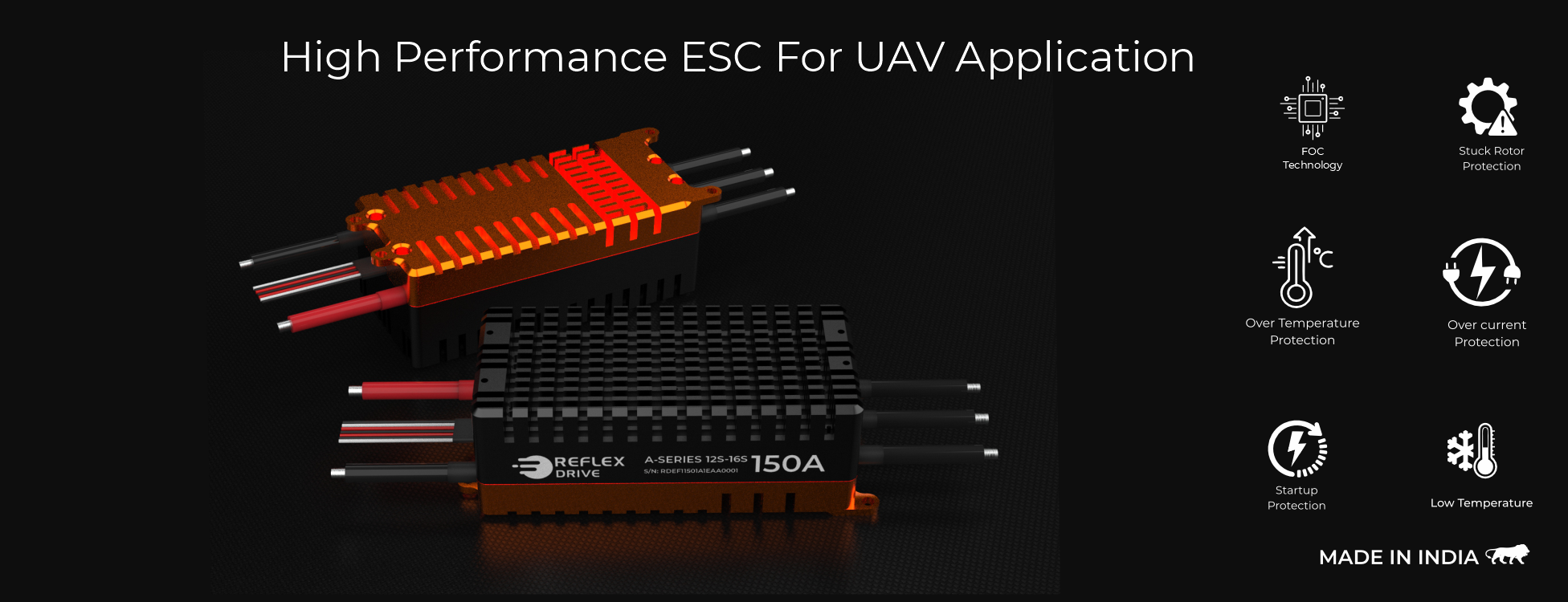

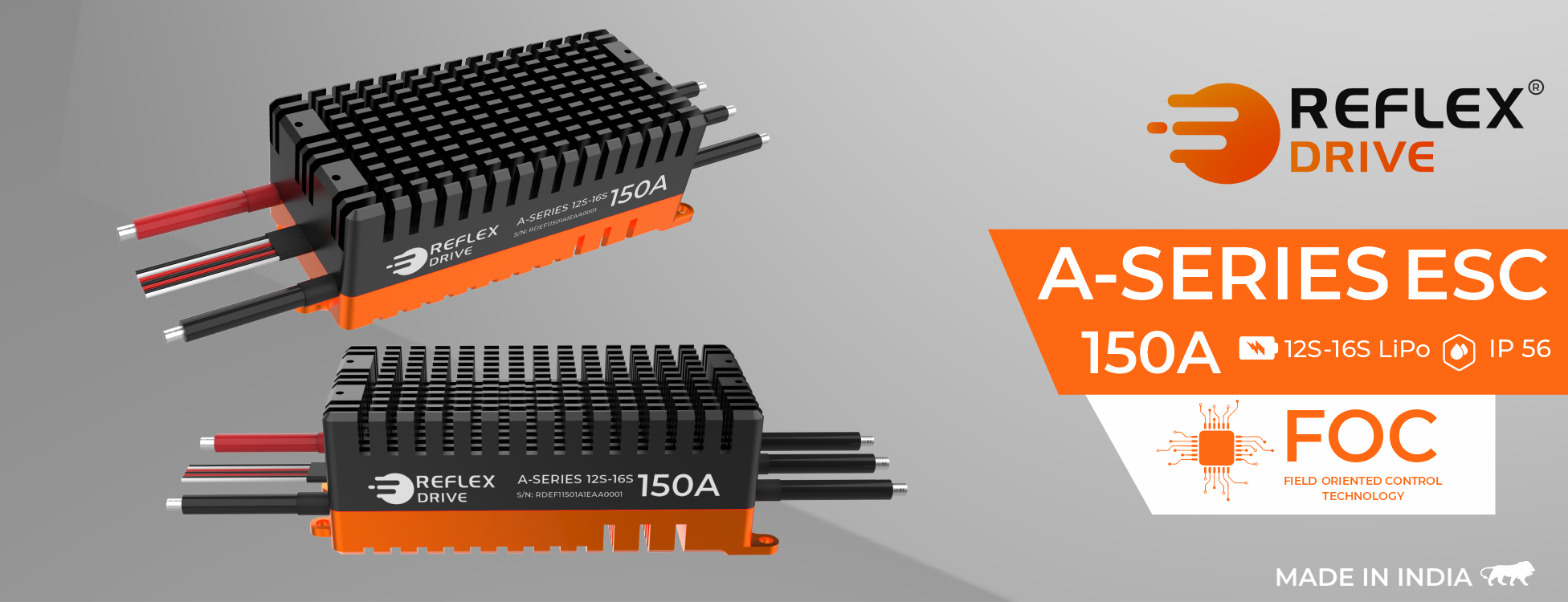

This high-performance, Made-in-India, ultra-lightweight 12.3 kW peak FOC ESC is optimized for UAV propulsion systems. The ESC delivers precise and efficient motor control using advanced Field Oriented Control (FOC) technology.
Key Features:
Voltage Rating: 12S (48V) to 16S (70V)
Current Rating: Up to 150A continuous
Control Algorithm: Efficient and responsive FOC for smooth, quiet, and high-performance operation
Weight: TBD
Noise & Vibration: Low noise and minimal vibration for enhanced UAV stability
Efficiency: Optimized for endurance and battery life
Protection Features: Built-in safeguards against overcurrent, overtemperature, and undervoltage
| Specification | Details |
|---|---|
| Continuous Current Range (with active cooling) | 150A |
| Voltage Range | 12S – 16S |
| BEC | No |
| Max Operating Temperature | 100 °C (TBD) |
| Enclosure | Yes |
| Dimensions | TBD |
| Weight | TBD |
| Telemetry | Yes |
| Current Sensing | Yes |
| Communication Protocols | PWM, DShot300 |
| Overcurrent Protection | Yes |
| Overtemperature Protection | Yes |
| Stuck Rotor Protection | Yes |
| Startup Protection | Yes |
| Waterproof Rating | IP57 |
| Production Status | Pre-Production |
