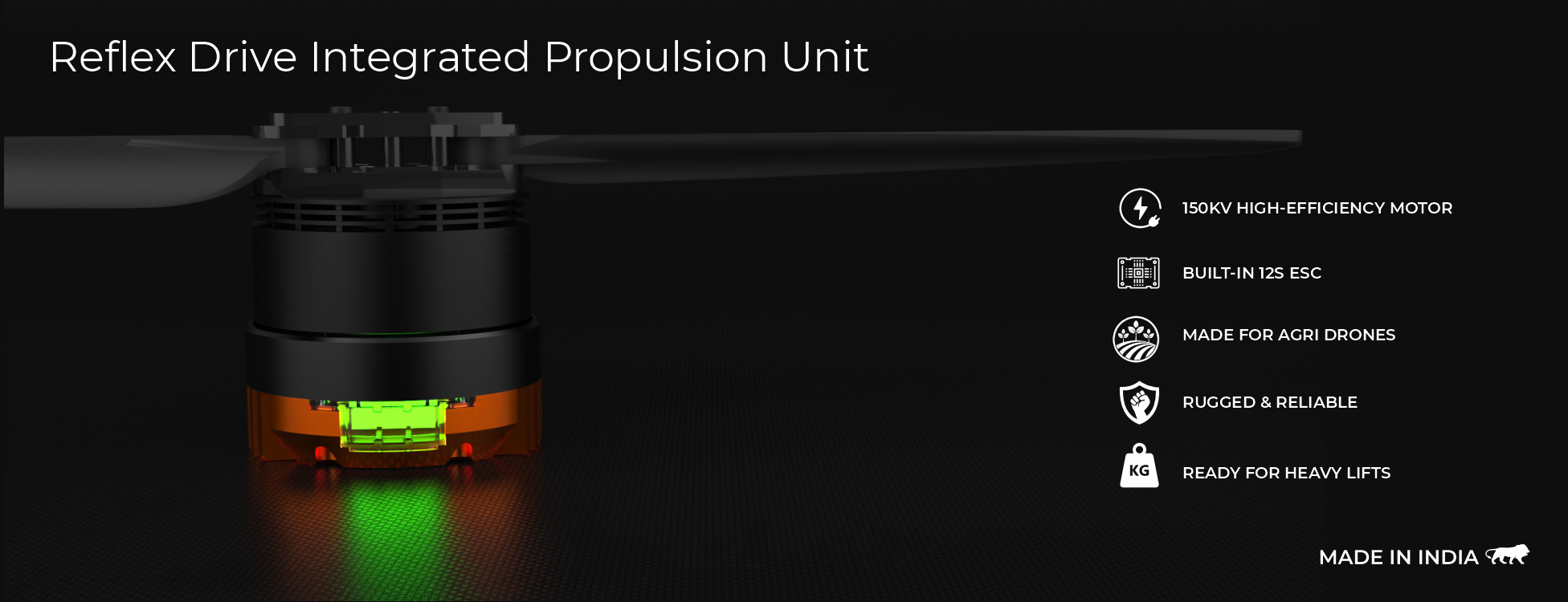

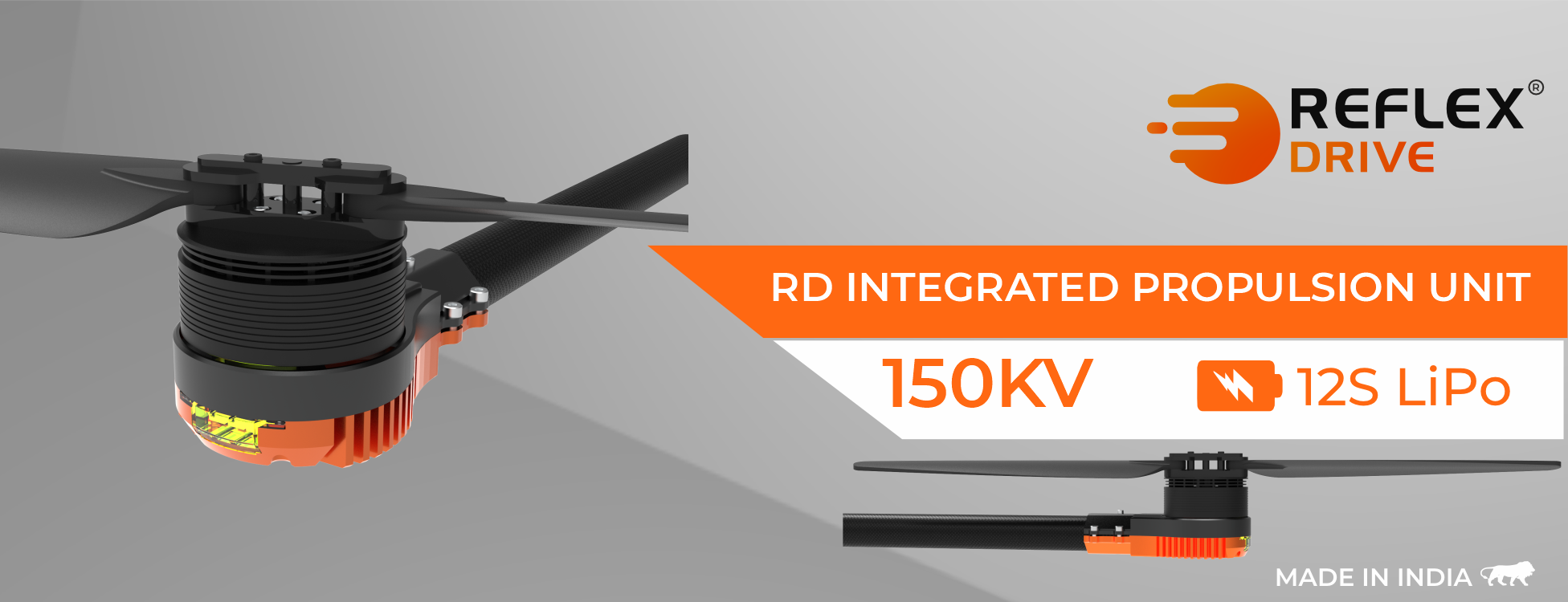

The RD IPU X6 6218 150KV is a high-performance Integrated Propulsion Unit (IPU) specifically designed for agricultural drone applications. This all-in-one solution features a fully enclosed Electronic Speed Controller (ESC), ensuring optimal protection and reliability in demanding environments. Made in India, the RD IPU X6 combines advanced propulsion technology with a robust design, making it ideal for precision agriculture, crop monitoring, and spraying tasks.
| Specification | Details |
|---|---|
| Motor Type | Outrunner |
| ESC | 12S 60A ESC |
| KV Rating | 150 KV |
| Maximum Thrust | 10 KG |
| Stator Poles / Magnet Poles | 24 / 28 |
| No Load Current | 1.7 A |
| Motor Efficiency | 93.57% |
| Weight (Including Cable) | 800 grams |
| Voltage Range | 44.4 V (12S LiPo – 4.2 V/cell) |
| Peak Current (30 Sec) | 60 A |
| Peak Power (30 Sec) | 2400 W |
| Motor Dimensions | Ø70 mm x 38.85 mm |
| Cable Length | 100 mm |
| Shaft Diameter (Internal) | Ø6 mm |
| Magnet Temperature Rating | 150 ℃ |
| Cable Type / Length | 16 AWG / 100 mm |
| Copper Wire Temperature Rating | 150 ℃ |
| Winding Material | 100% Copper |
| IP Rating | IP34 |
| Maximum Operating Temperature | 60 ℃ |
| Recommended Propeller | 23*88 (Folding) |
| Production Status | Production |
