RD T-Pro ESC 65A

RD T-Pro ESC 65A

RD T-Pro ESC 65A

4S-14S, 65A

Product Description

RD T-Pro ESC is an advanced electronic speed controller (ESC) designed for high-performance applications – and is proudly made in India. This upgraded model in the T-Series incorporates heavy copper on the PCB, significantly enhancing thermal and current handling capabilities. With its sleek and durable aluminium enclosure, the trapezoidal ESC provides excellent heat dissipation and protection against harsh environmental conditions.

Key Features

  • Durability: Continuous 65A operation for 1 hour with active cooling.
  • Thermal Management: Continuous 55A operation for 20 minutes without active cooling.
  • Enhanced Design: Heavy copper PCB improves thermal capacity and current distribution.
  • Reliability: Rigorous testing ensures operational stability and durability under various conditions

Testing and Validation

RD T-Pro ESC has undergone extensive and rigorous testing to ensure reliability, including:

  • Continuous current durability tests without active cooling at 55A.
  • Sync-loss Testing
  • Thermal Testing
  • Step Test
  • Thrust Bench Performance Test

Specifications

Specification Details
Continuous Current (with active cooling) 65A
Voltage Range 4S – 14S
BEC No
Max Operating Temperature 90 °C
Enclosure Yes
Dimensions (with Enclosure) 79 mm × 36 mm × 26 mm
Weight (with Enclosure) 110 grams (including wire)
Telemetry Yes
Current Sensing Yes
Communication Protocols PWM, DShot300
Overcurrent Protection Yes
Overtemperature Protection Yes
Stuck Rotor Protection Yes
Startup Protection Yes
Waterproof Rating IP56
Production Status Production

Engineering Data

Brochure

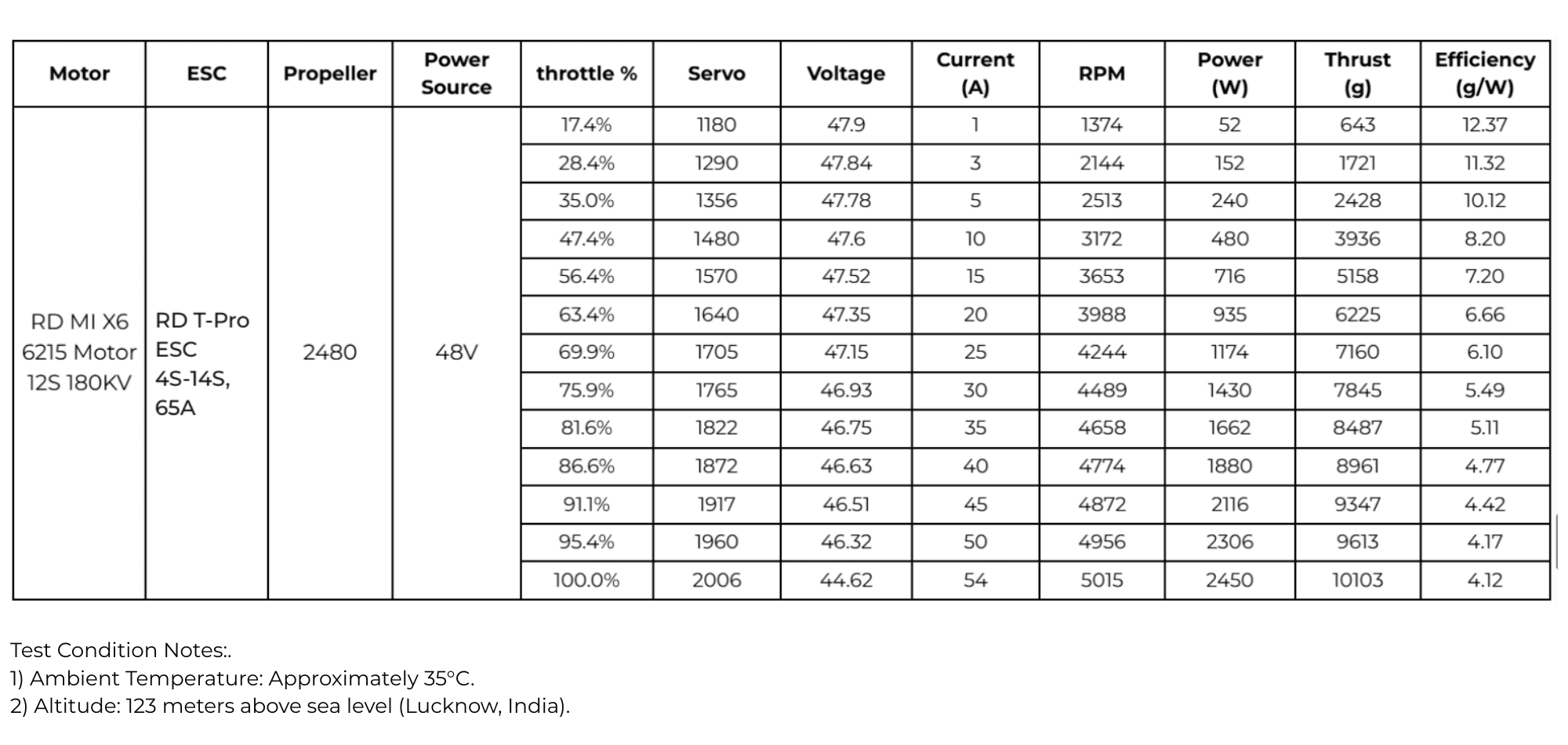

Performance Data

3D-CAD File

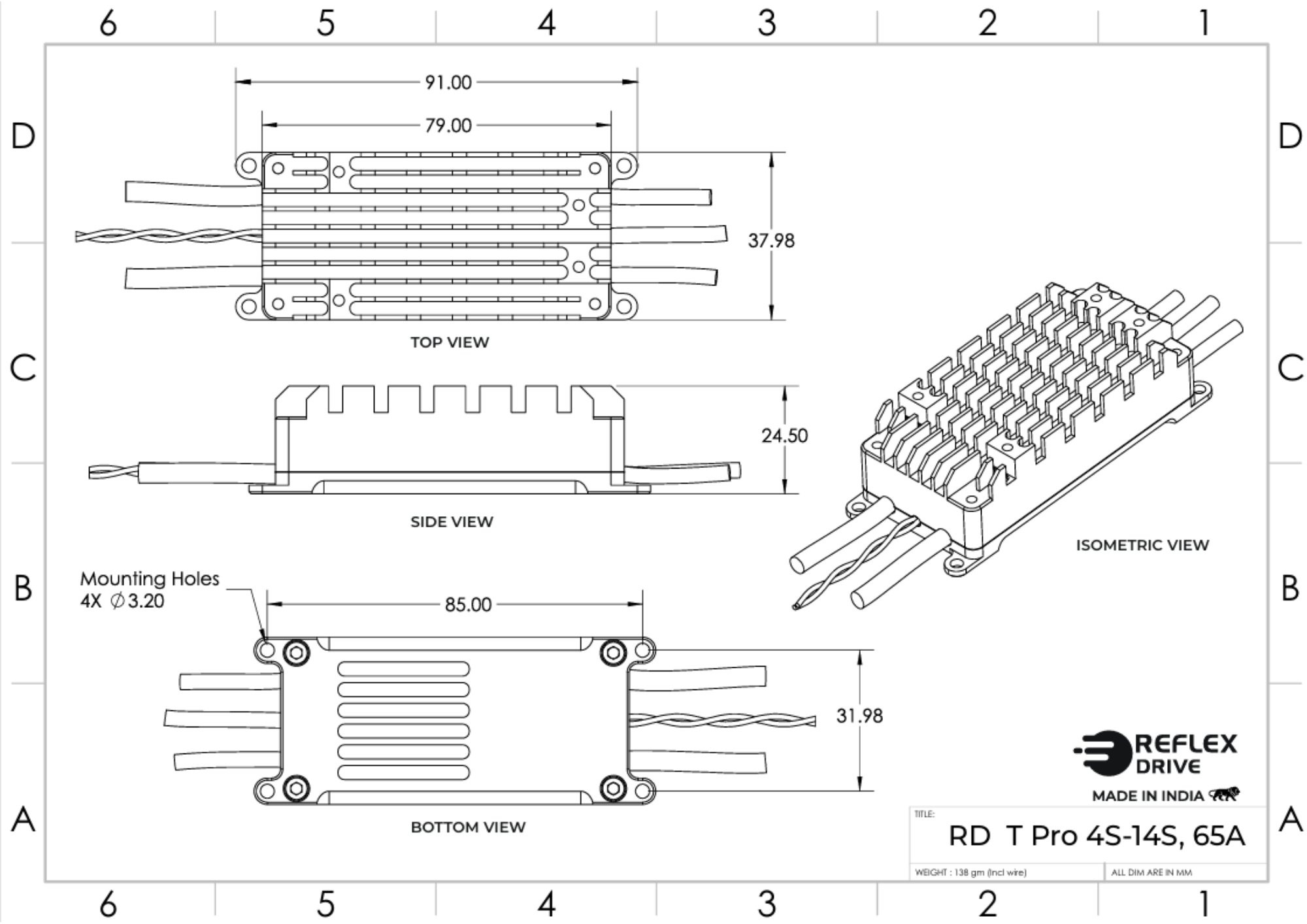

2D-CAD File
