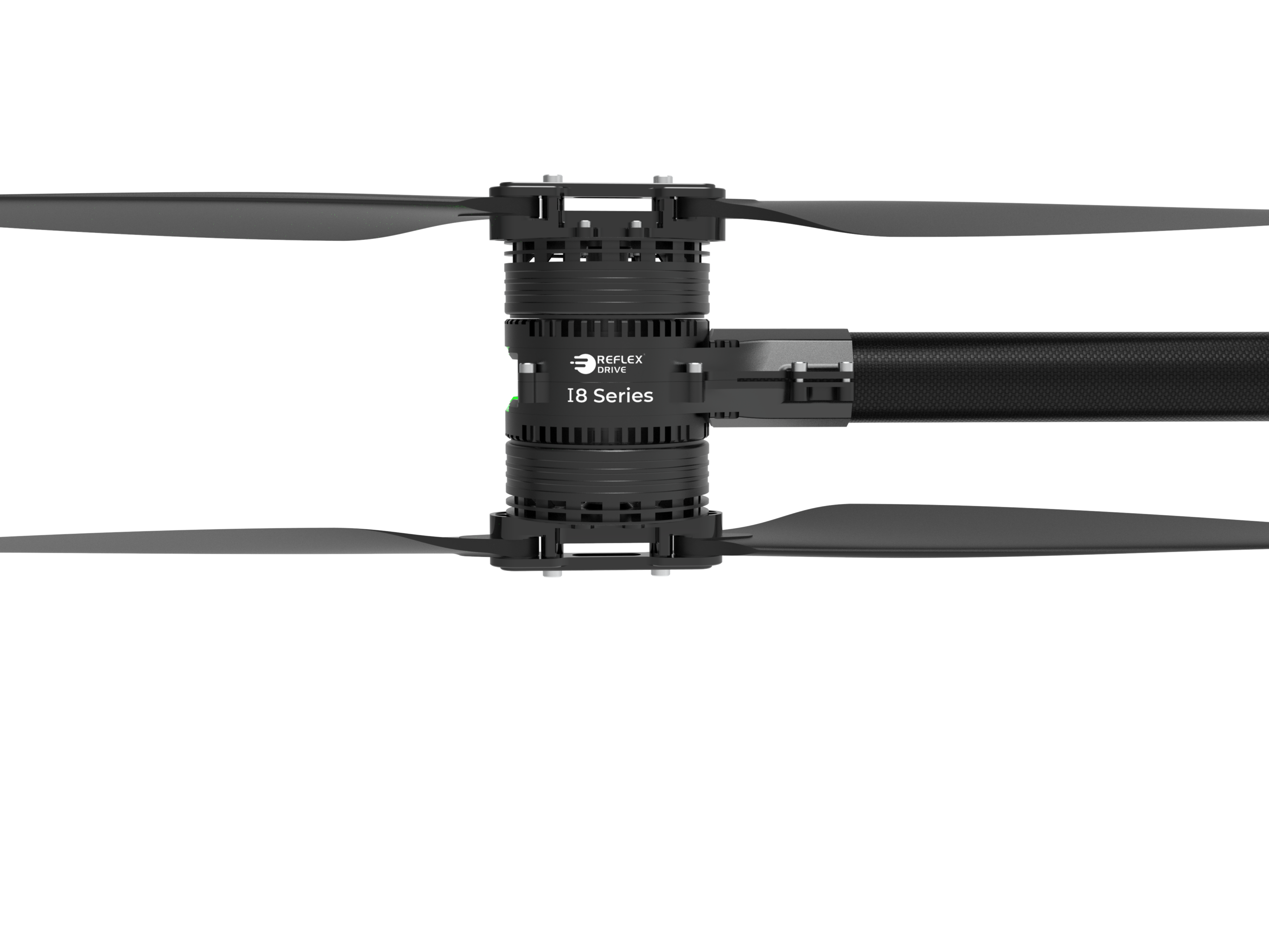

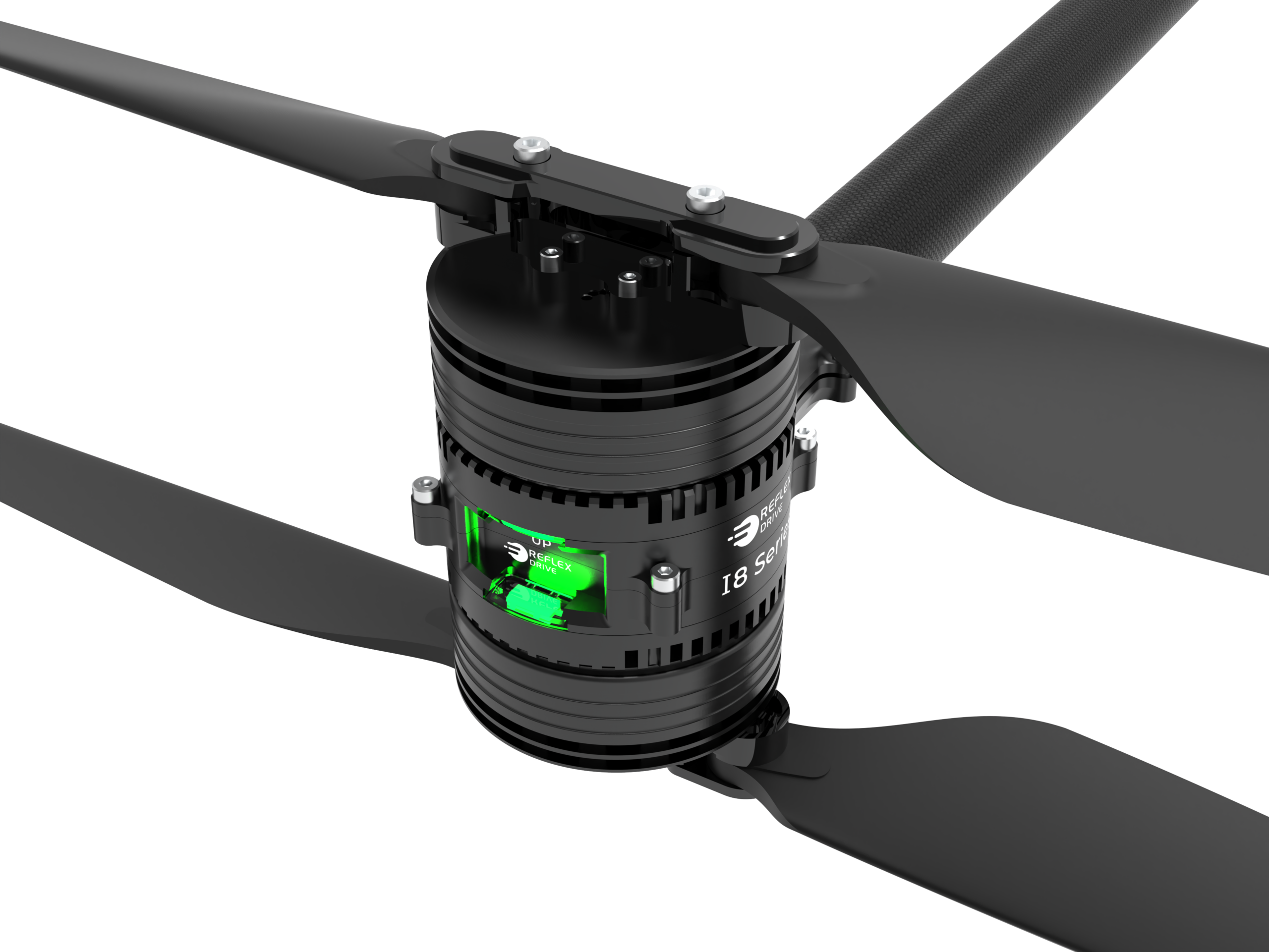

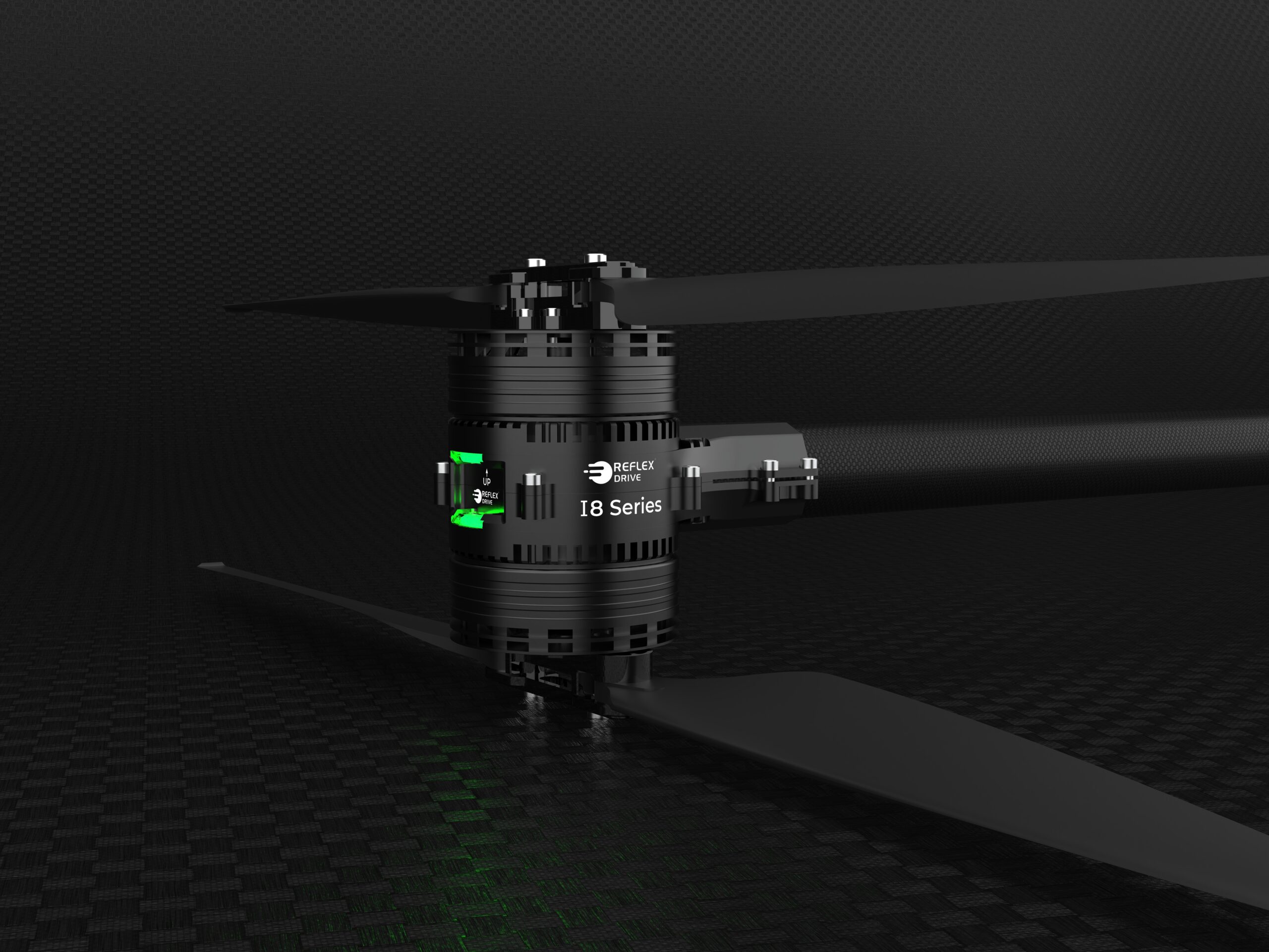

Integrated dual 8015 motor coaxial propulsion system with advanced RD FOC ESC. Delivers thrust with high efficiency and optimized power-to-weight performance. Engineered with enhanced thermal management for superior cooling during continuous heavy-load operation.Â
| Power Leads (AWG & Length) | 12AWG, 200°C & 1 mtr. |
| ESC Signal Control lead | 22 AWG, 2-wire JR (W-B) |
| ESC Telemetry lead | 22 AWG, 2-wire JR (R-B) |
| Protection/Warning | Overcurrent Protection |
| Over temperature Indication | |
| Low Voltage Protection | |
| Throttle Loss Protection | |
| Stall Protection | |
| MOTORÂ | |
| Motor KV Rating | 115KV |
| Stator Poles / Magnet Poles | 24/2 |
| Motor Dimension | Ø89.50mm x 48.55mm |
| Recommended Propeller | 3011(Foldable) |
| Product name | RD I8 series cpu  |
| Country of Origin | India |
| Compliant | IPC Class 2 |
| Throttle signal frequency | 50-450Hz |
| Weight (without propeller) | 920 gm |
| Total weight (incl.propeller) | 1200 gm |
| Arm tube dia (OD) | 40 mm |
| operating Temperature | -20~50°C |
| ESCÂ | |
| Voltage Range | 6S-12S (24V-58V) LiPo |
| Max. Input Current | 80A (180 sec) with airflow |
| PWM Range | 1050-1950us |
| BEC | No |
| PWM Input Signal | 3.3V-5V |
| Telemetry (over CAN) | Voltage, Current, Temperature, Motor RPM, Fault status |
| Communication Protocol | PWM, CAN |
