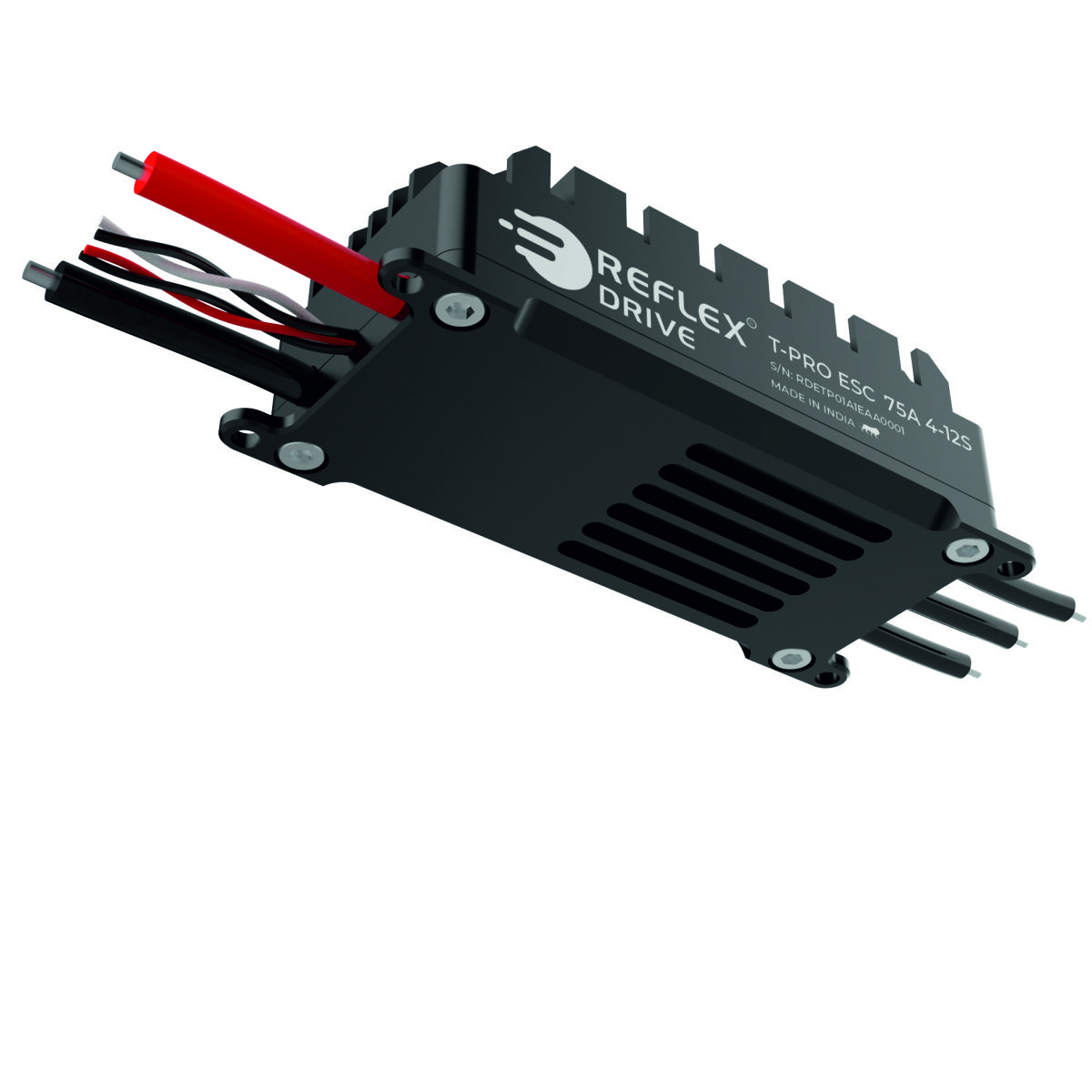

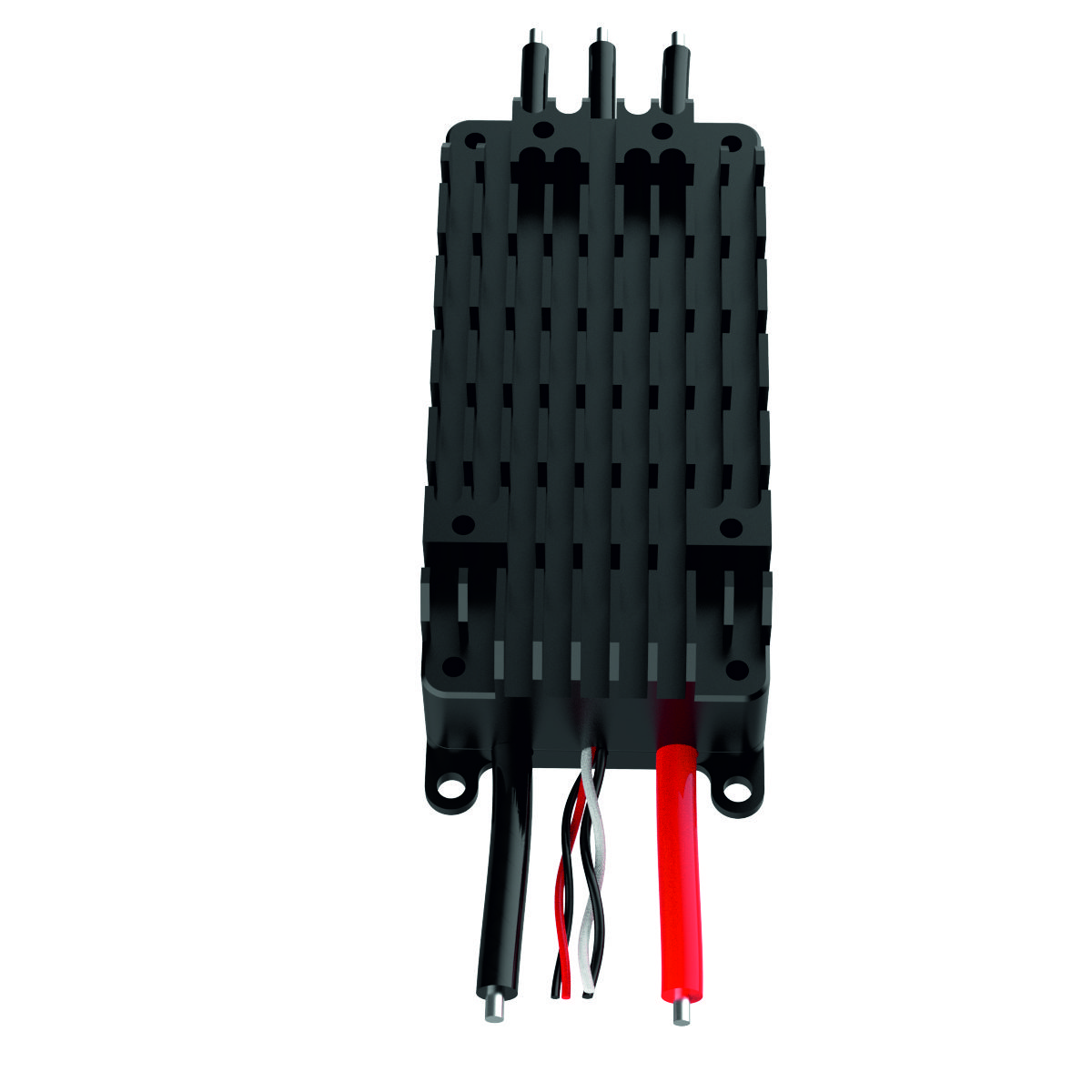

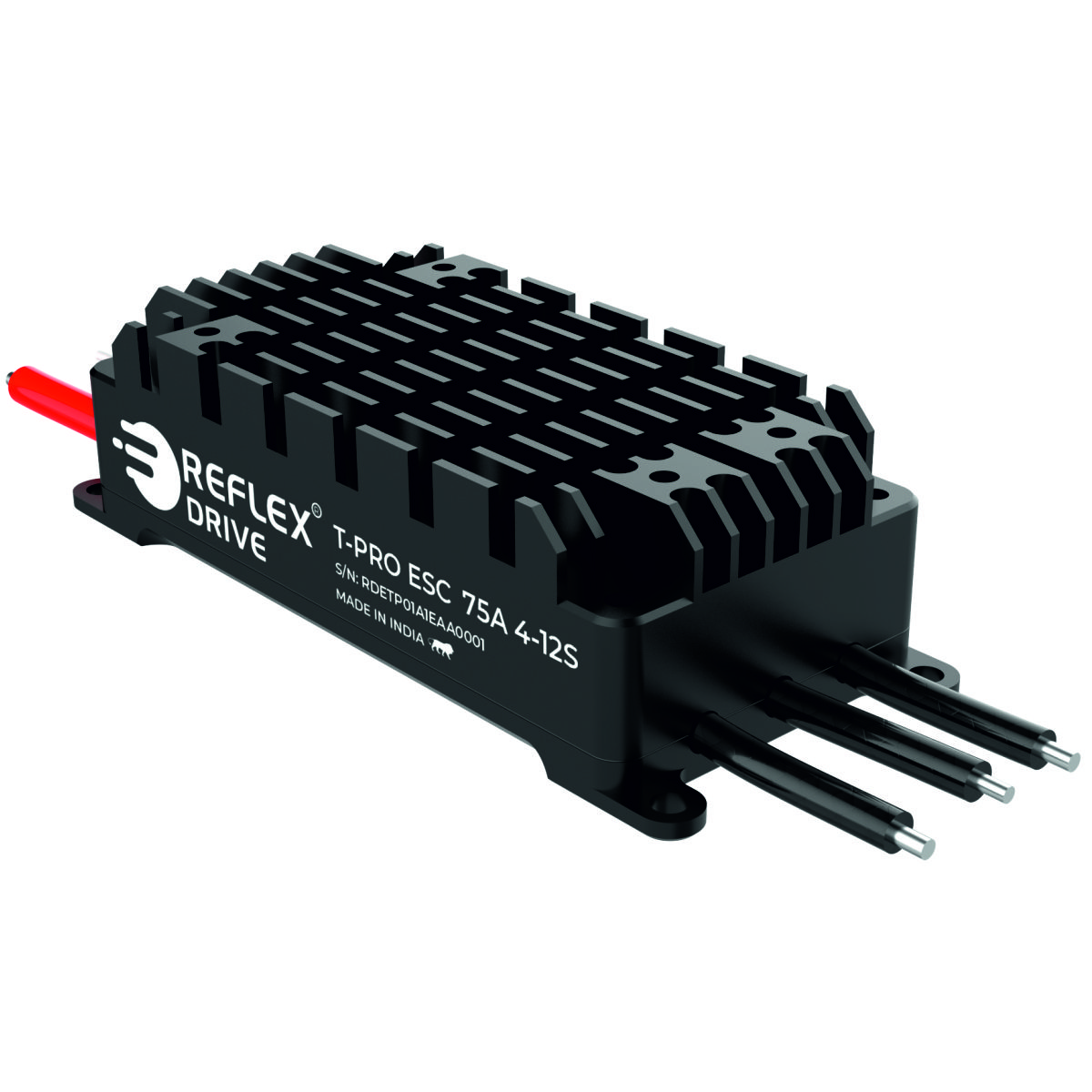

The RD T-Pro V3 4S-14S 75A ESC is a high-performance electronic speed controller built for maximum reliability in demanding environments. Designed to support a versatile input range and deliver stable current output, it handles sustained high-load operations with ease.
Integrated safety features like over-temperature, overcurrent, and stalled rotor protection ensure consistent performance even under extreme stress. Encased in a sealed, IP56-rated aluminum enclosure, the T-Pro V3 75A combines rugged durability with advanced thermal management. Optimized for PWM control and featuring integrated telemetry for real-time monitoring, it is a dependable solution for precision motor control in industrial and heavy-lift UAV applications.
| S.No. | Parameter | Value | Remarks |
|---|---|---|---|
| 1 | Input Voltage | 4~14S LiPo | — |
| 2 | Continuous Current | 65A (60min, With Active Cooling) | Tested in 12.5 m/s continuous airflow and 28℃ ambient temperature |
| 3 | Peak Current | 75A (120s, With Active Cooling) | If OTP is inactive |
| 4 | BEC Output Voltage | No | — |
| 5 | Operating Ambient Temperature | (-20℃) ~(+65℃) | ±5℃ |
| 6 | Operating Humidity | 15% ~ 85%RH | ±5%RH |
| 7 | Storage Temperature | (-40℃) ~(+65℃) | ±5℃ |
| 8 | Preservation Humidity | 15% ~ 85%RH | ±5RH |
| 9 | Standby Current (24V) | ≤ 25mA | — |
| 10 | Throttle Range (Can’t be calibrated) | 1050us ~ 1950us | Fixed Range |
| 11 | Recommended Throttle Refresh Frequency | 50Hz | — |
| 12 | Throttle I/P Mode | PWM Only | — |
| 13 | Over Temperature Protection | Yes | — |
| 14 | Overcurrent Protection | Yes | — |
| 15 | Stuck Rotor Protection | Yes | — |
| 16 | Waterproof Rating | IP56 | — |
| 17 | Startup Protection | Yes | — |
| 18 | Invert Motor Spin | Yes | Configured using RD GUI |
| 19 | Telemetry | Yes | Voltage, Current, PCB Temperature, Motor eRPM |
| 20 | Braking Feature | No | — |
| 21 | Dimensions | 79mm x 38mm x 24.5mm | — |
| 22 | Weight (Incl. ESC with wire) | 135g | — |
