900KV | 6S

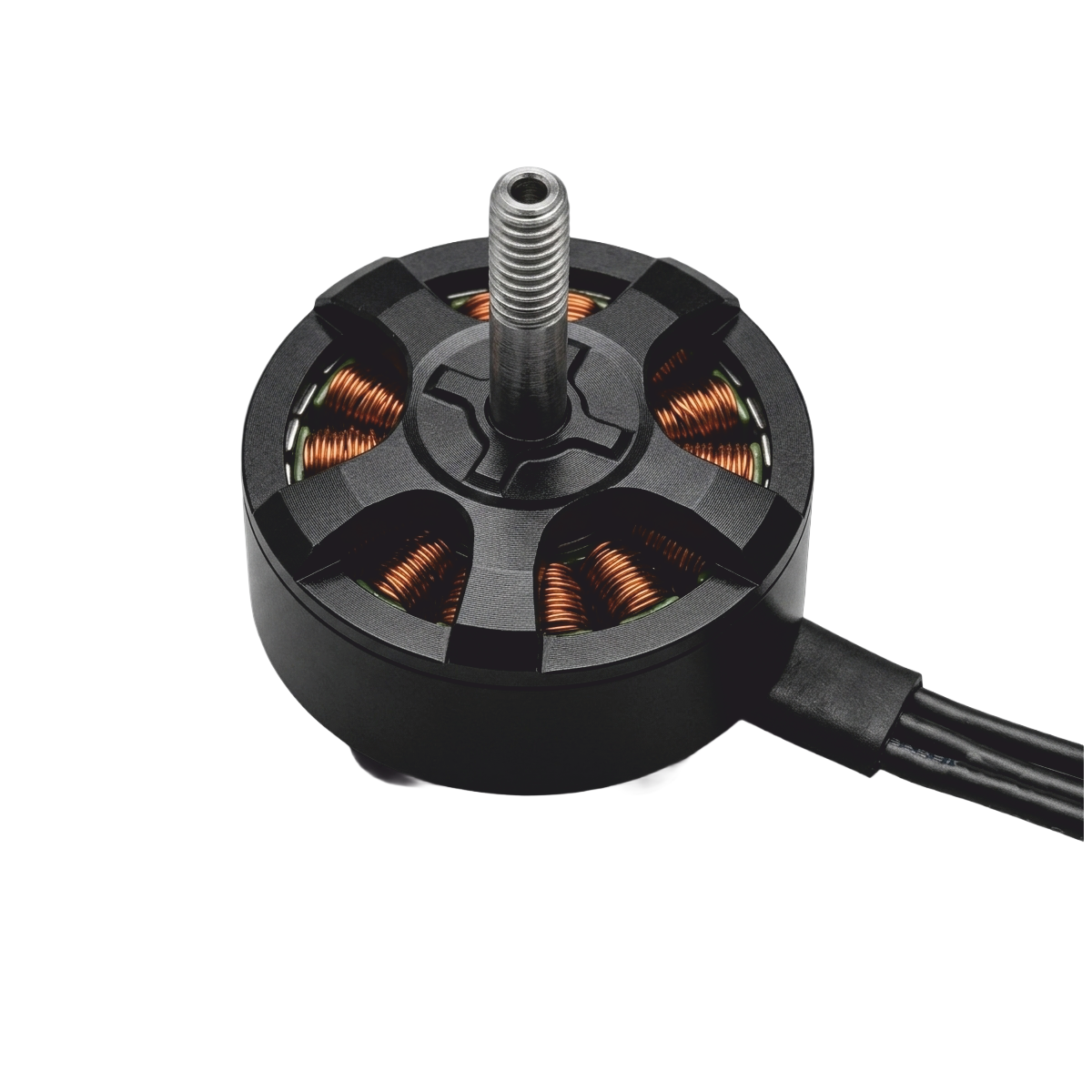

Product Description

RD3115 is engineered for serious FPV flyers who push limits with every flight. With a KV range of 900–1050, it offers punchy throttle response and stable power delivery—ideal for both precision freestyle and high-speed racing. This motor empowers aggressive manoeuvres, vertical punches, and extended hang time with confidence. Built for 4–6 S setups, the RD3115 ensures optimal efficiency across a range of FPV platforms. Despite its powerful output, it maintains agility with a lightweight 126g profile. Deliver smooth, vibration-free operation. Whether you’re ripping gates or flowing through technical lines, RD3115 provides the raw power and reliability trusted by performance-focused FPV pilots.

Specifications


Product name RD 3115 DRONE MOTOR
Country of Origin  India
Max Thrust 5.1 kg
Total weight 126 g
Stator configuration 12N-14P
Kv rating 900 kv
Motor Size Ø37 x 32 mm
Starting voltage 24 V
Reached voltage 21.6 V
Max current 50.71 A

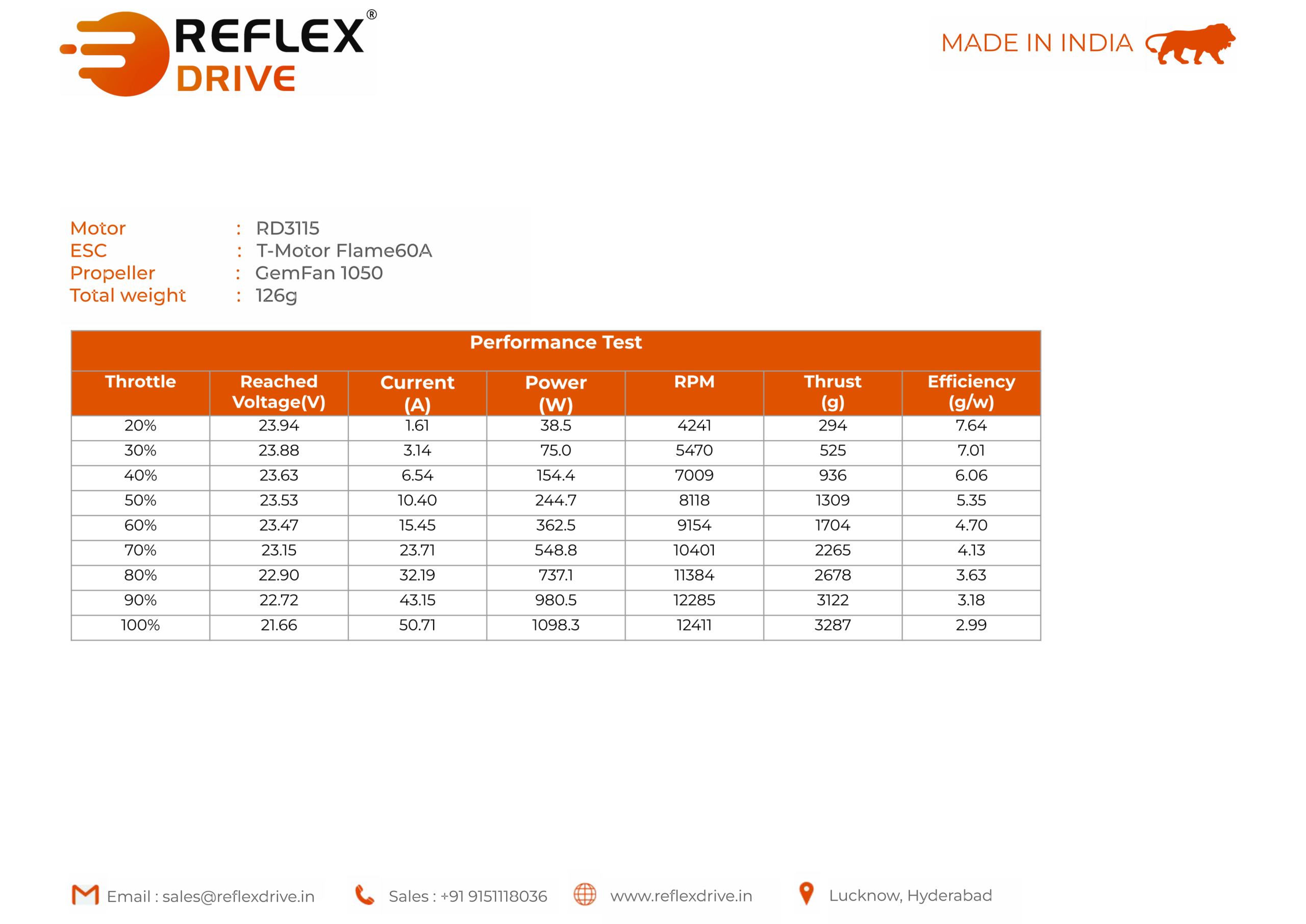

Engineering Data

Brochure

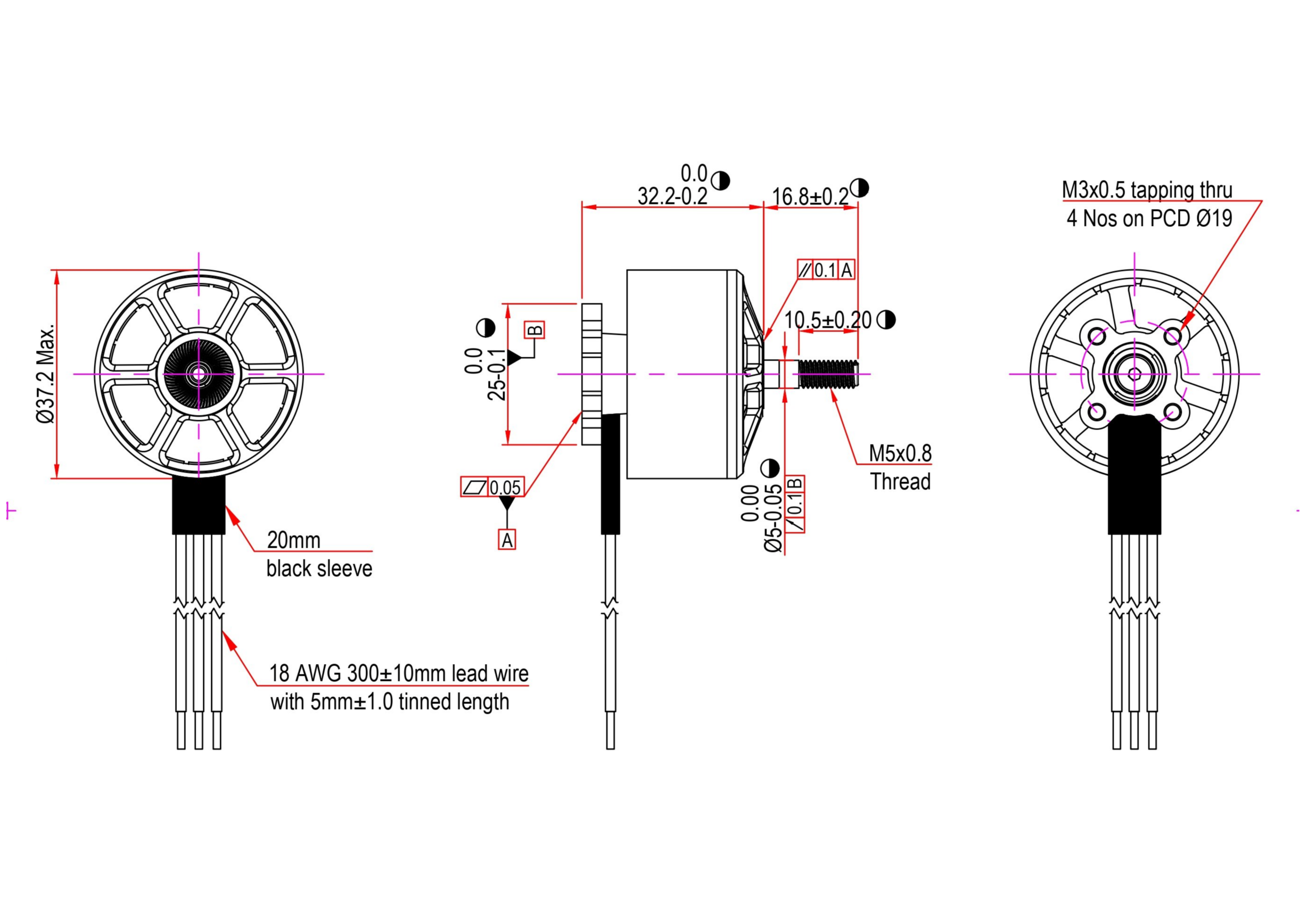

2D CAD
