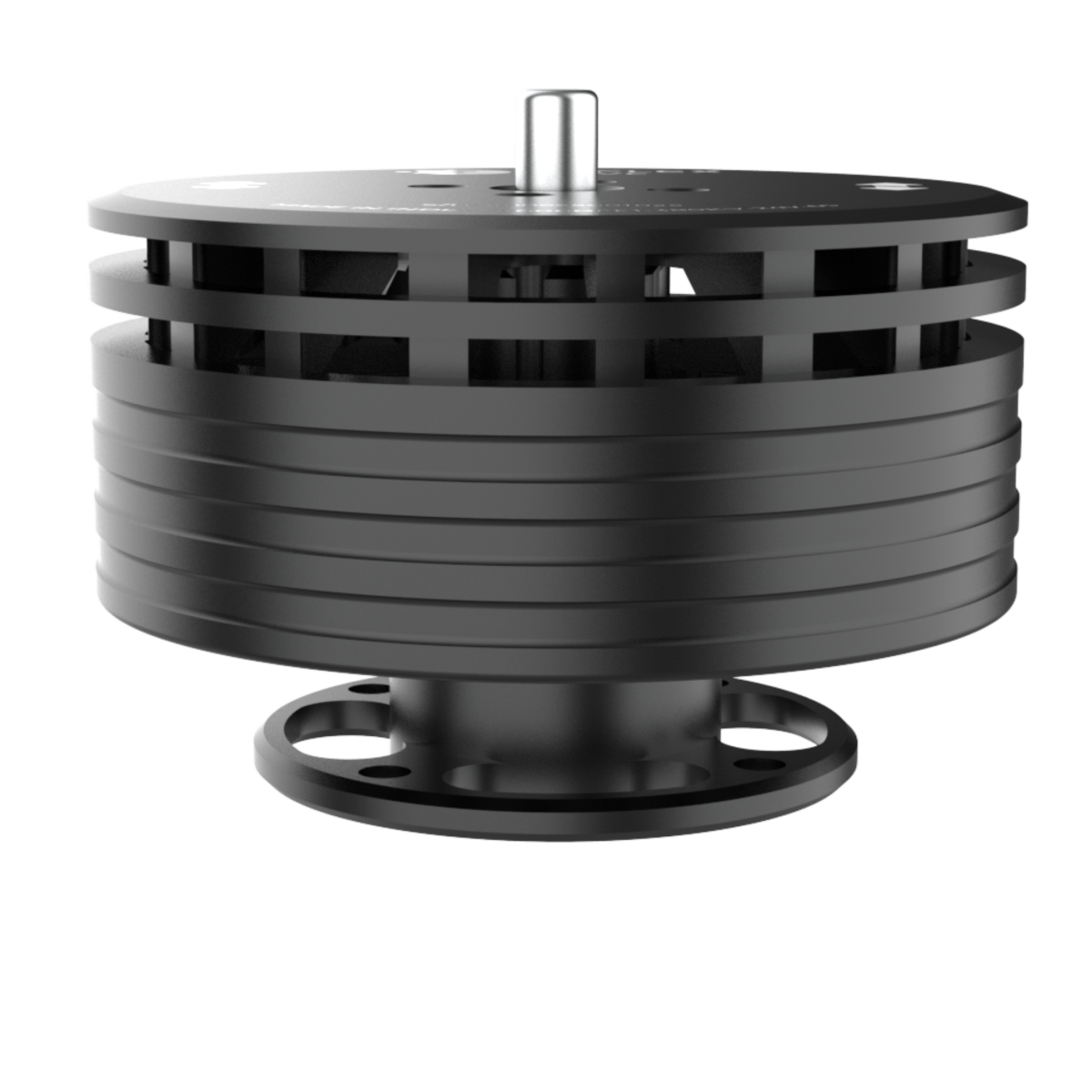

RD 4006 Brushless Motor is a compact and versatile motor with a KV rating of 415, Made in India.  It is designed to deliver superior power, efficiency, and stability across a range of applications.  The motor is compatible with 15-inch to 17-inch propellers, making it ideal for UAVs.
| Product name | RD 4006 UAV BLDC MOTOR |
| Country of Origin | India |
| Motor Type | Outrunner |
| KV Rating | 415 KV |
| Maximum Thrust | 1.7 KG |
| Stator Poles / Magnet Poles | 18/24 |
| No load Current | 0.8 A |
| Motor Efficiency | 90.99 % |
| Weight (Incl. Wire) | 69 grams |
| Voltage Range | 4-6S |
| Peak Current (15 sec) | 15 A |

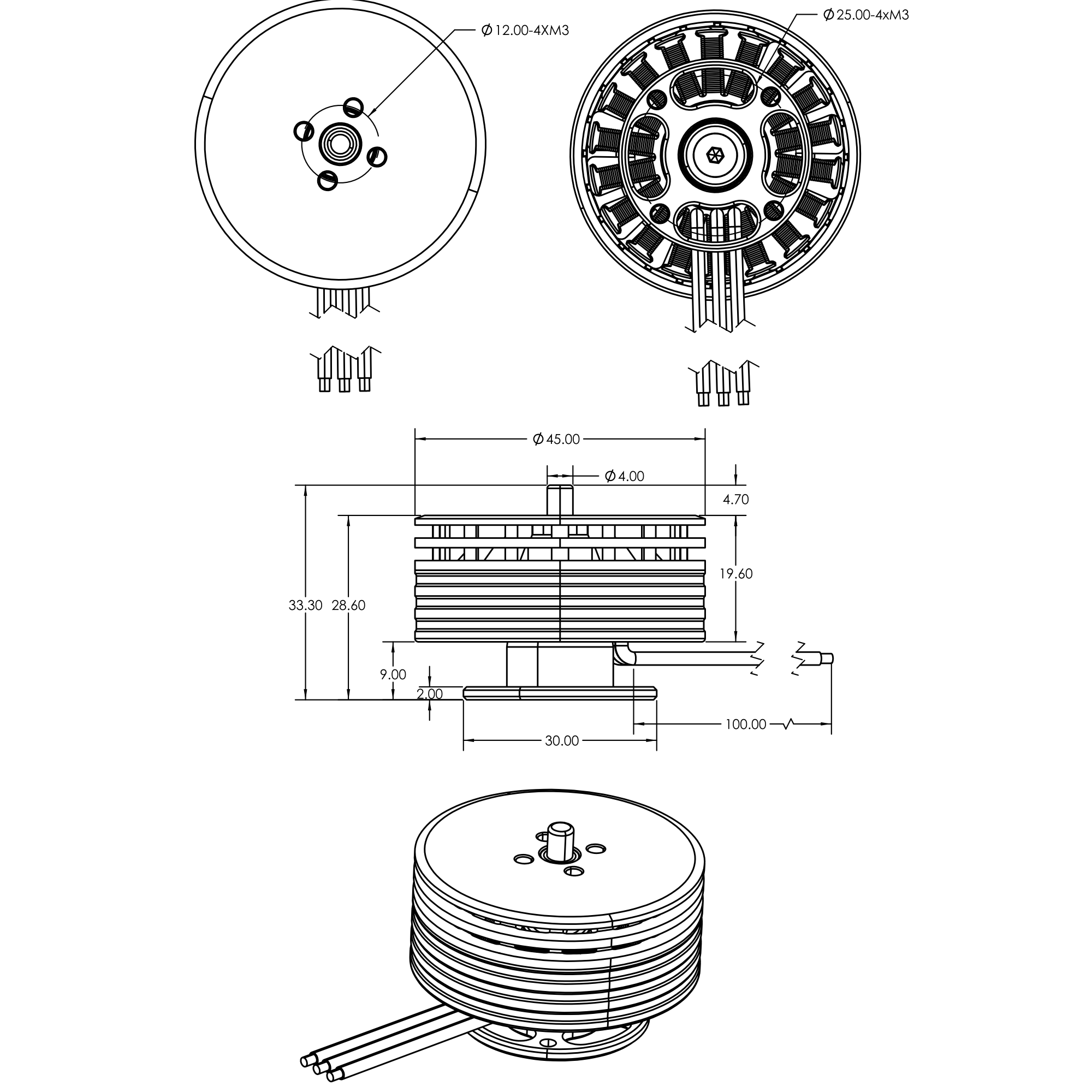

| Motor Size | Ø45 mm x 33.30 mm |
| Stator Size | Ø40 mm x 6 mm |
| Cable Length | 100 mm |
| Cable Type | 16 AWG |
| Magnet Temperature Rating | 150 ℃ |
| Shaft Diameter | Ø4 mm |
| Winding Material | 100% Copper |
| IP Rating | Ip34 |
| Maximum Operating Temperature | 60 ℃ |
| Production Status | Production |
