RD T-Series V2 ESC 60A is an advanced Electronic Speed Controller (ESC) designed for high-performance applications. Made in India, this model significantly enhances thermal and current handling capabilities. Housed in a sleek and durable Aluminum enclosure, the ESC offers excellent heat dissipation and protection against harsh environmental conditions.
| S. No. | Parameter | Value | Remarks |
|---|---|---|---|
| 1. | Input Voltage | 4 – 12S LiPo | – |
| 2. | Continuous Current | 60A (60min , With Active Cooling) | Tested in 12.5 m/s continuous airflow and 28℃ ambient Temperature |
| 3. | BEC Output Voltage | No | – |
| 4. | Operating Ambient Temperature | (-20℃) ~(+ 65℃) | – |
| 5. | Standby current (48V) | ≤ 30mA | – |
| 6. | PWM Range (Can be calibrated) | 1050us ~ 1950us | Calibration Enable |
| 7. | Recommended Throttle refresh frequency | 50Hz | – |
| 8. | Throttle I/P mode | PWM & Dshot300 | – |
| 9. | Over Temperature Protection | Yes | – |
| 10. | Overcurrent Protection | Yes | – |
| 11. | Stuck Rotor Protection | Yes | – |
| 12. | Waterproof Rating | IP54 | – |
| 13. | Start-up Protection | Yes | – |
| 14. | Invert Motor Spin | Yes | Configured using RD GUI |
| 15. | Telemetry | Yes | Voltage, Current, PCB Temperature, Motor eRPM |
| 16. | Braking Feature | No | – |

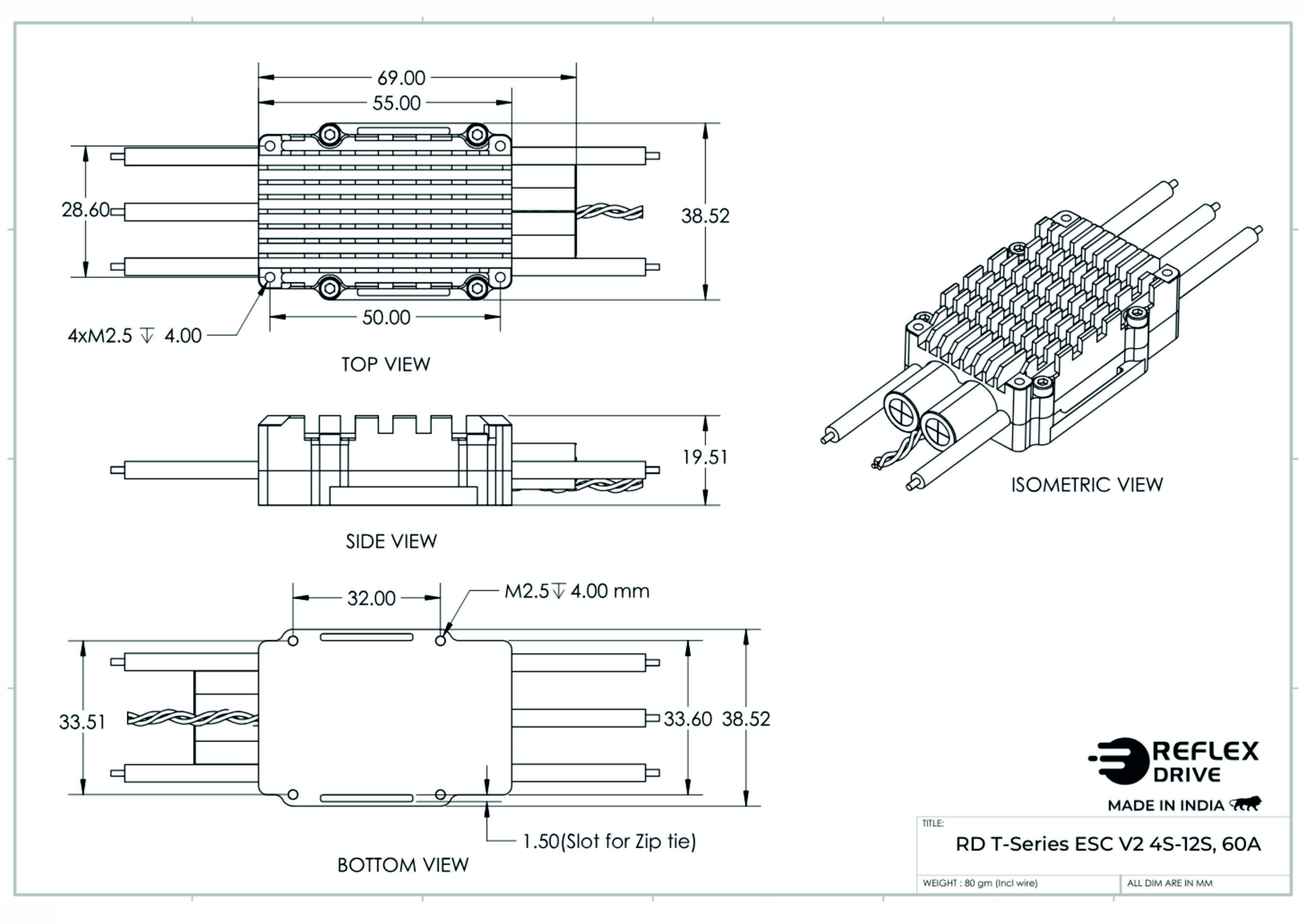

| Dimensions | 55 x 38.52 x 19.51 |
| Weight | 80g |
