RD R8 IPU

RD R8 IPU

Peak Thrust 14 kg

₹15,999

Per unit, for orders under 50 units, excl. GST. Discounts apply to volume orders: for 50 units or more, contact [email protected]. See the full price list

Price on requestContact [email protected] for a quote. Discounts apply to volume orders.

Pricing will be announced at launch. Contact [email protected] for availability and early orders.

Product Description

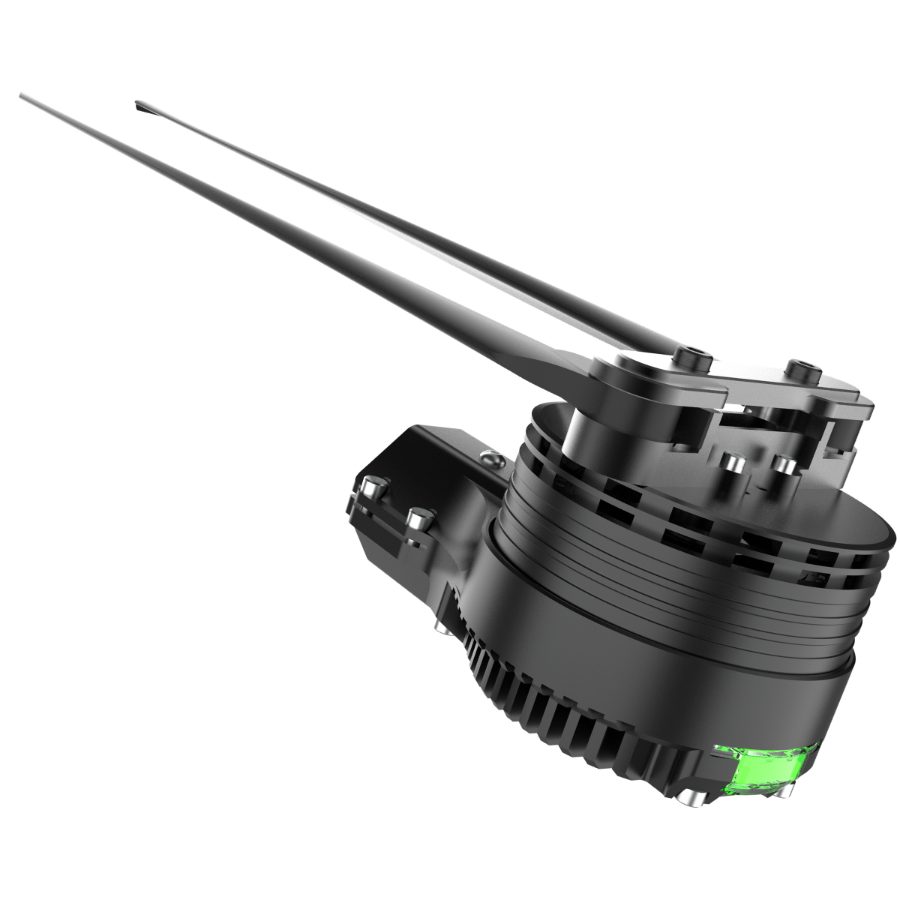

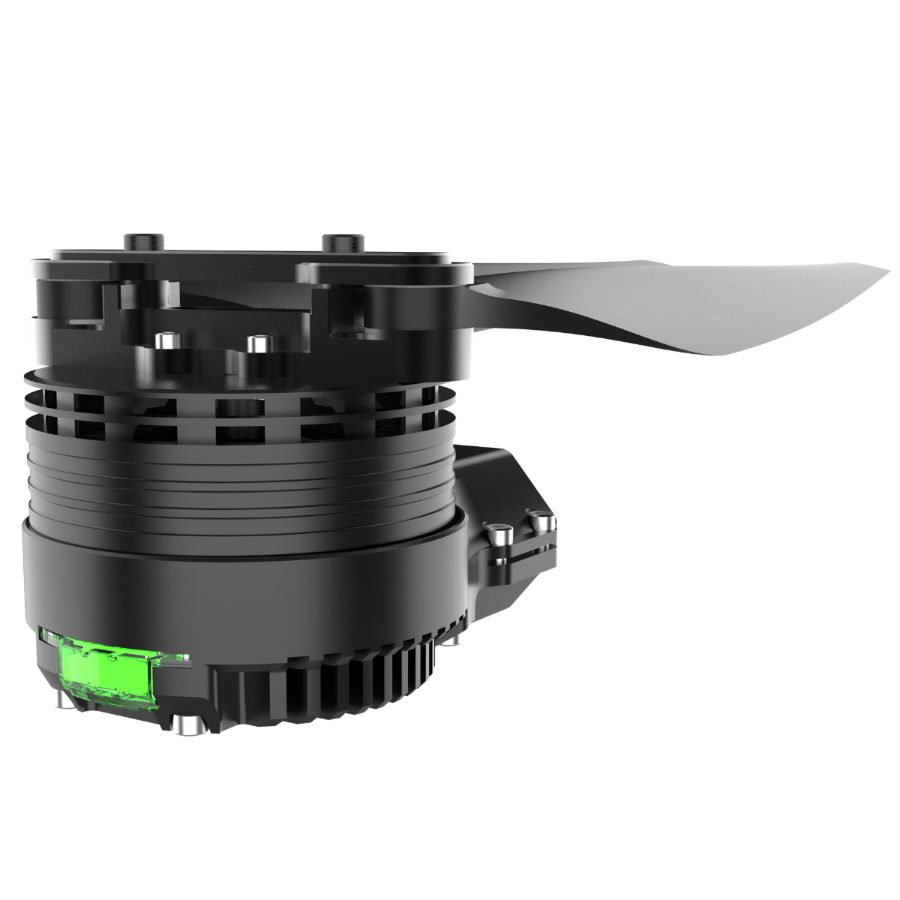

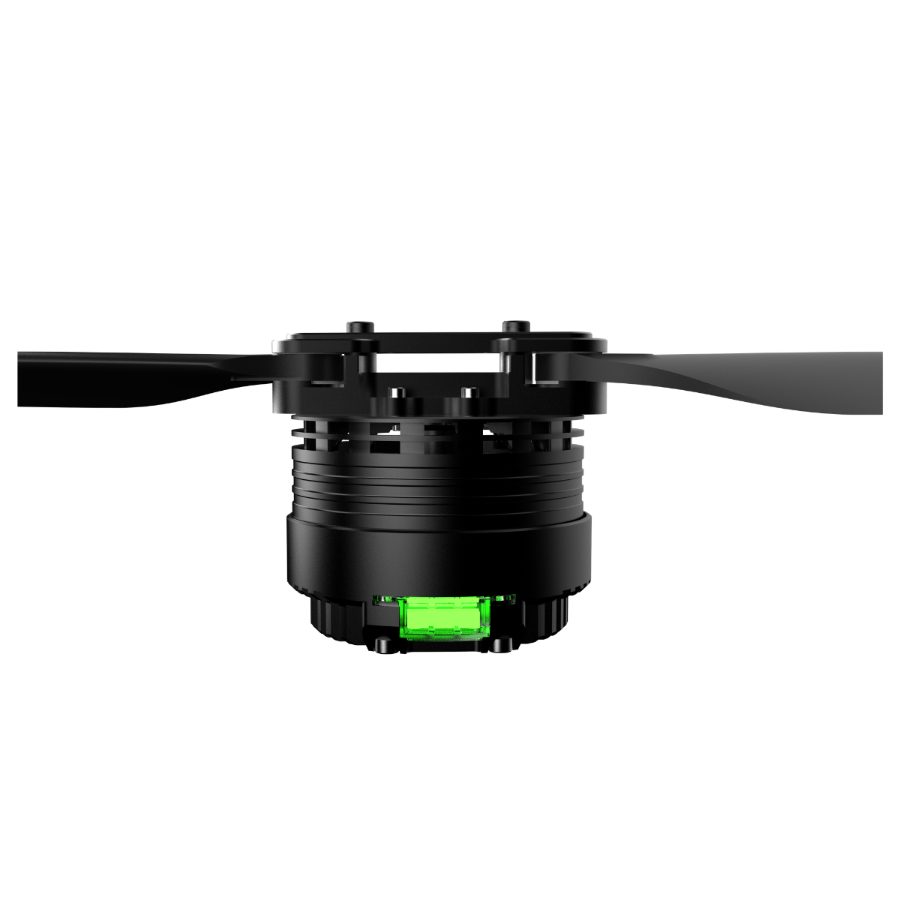

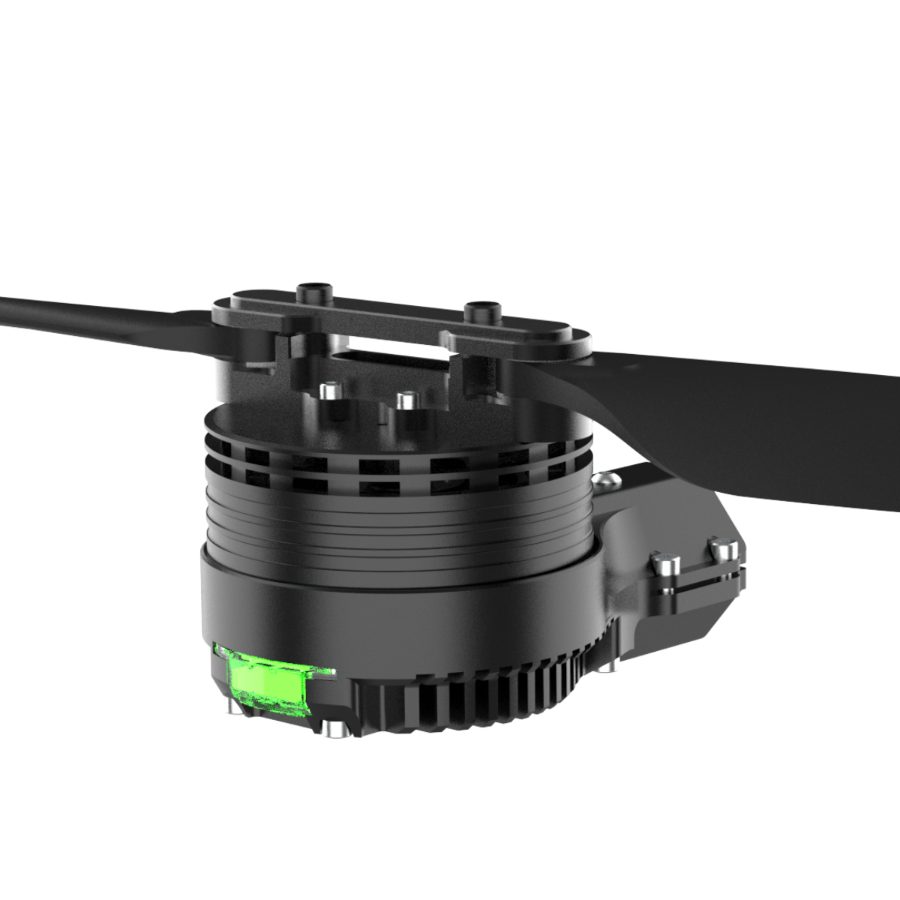

The R8 IPU is an integrated propulsion unit (IPU) for drone applications. It has a fully enclosed electronic speed controller (ESC) for protection in demanding environments. It is used on surveillance, payload, agriculture, crop monitoring and spraying platforms.

Where the R8 IPU fits

The R8 IPU is an integrated propulsion unit that combines the motor, ESC and propeller in one assembled unit for heavier multirotors. The datasheet lists 14 kgf of maximum thrust, 2400 W maximum power, 920 g weight without a propeller (1200 g with one), a 40 mm arm tube and a recommended take-off weight of 5.0 to 7.0 kg per rotor at 48 V and sea level. It is listed as compliant with IPC Class 2 and certified to JSS 55555, and it works from -20 to 50 °C with throttle signals from 50 to 450 Hz. That makes it a good fit for programmes that specify those standards.

How it compares

Among our integrated propulsion units, the R8 gives more thrust and a larger arm tube than the R6 IPU (12.5 kg, 30 mm tube, 800 g without propeller). The weight cost is about 120 g without the propeller. Choose the R8 when your take-off weight per rotor goes above the R6’s recommended range. Contact [email protected] for availability and integration support.

Specifications

Product name RD R8 IPU
Country of Origin India
Throttle signal frequency 50-450Hz
Weight (without propeller) 920 gm
Total weight (incl.propeller) 1200 gm
Arm tube dia (OD) 40 mm
Maximum Thrust 14 kg
Recommended take-off weight 5.0-7.0kg/rotor (48V sea level)
Max. Power 2400W
operating Temperature -20~50°C
Compliant IPC Class 2
Certification JSS 55555

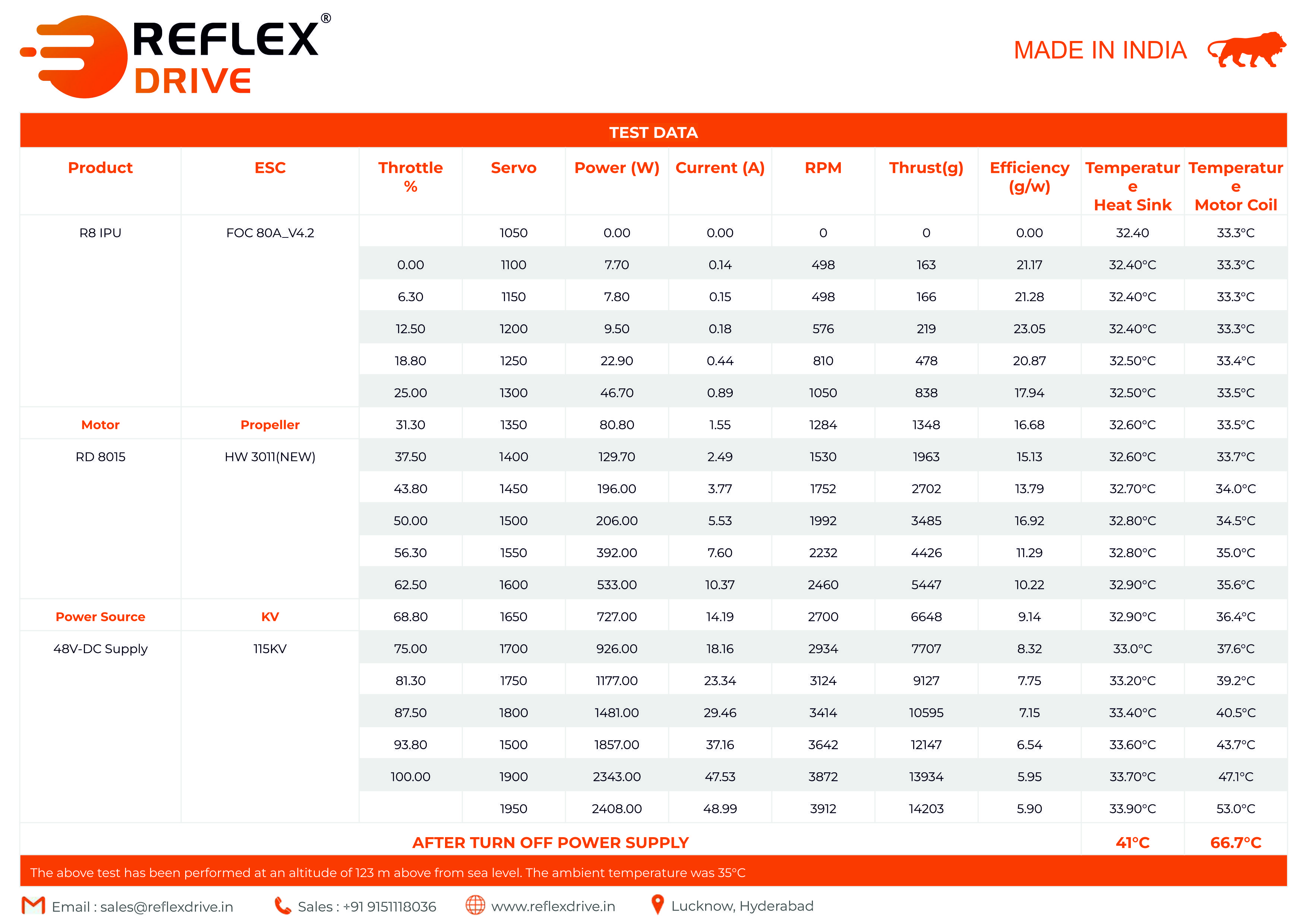

Engineering Data

Product R8 IPU
ESC FOC 80A V4.2
Motor RD 8015 (115KV)
Propeller HW 3011 (new)
Power source 48 V DC supply
Throttle % Servo (µs) Power (W) Current (A) RPM Thrust (g) Efficiency (g/W) Heat sink temp (°C) Motor coil temp (°C)
– 1050 0.00 0.00 0 0 0.00 32.4 33.3
0.0 1100 7.70 0.14 498 163 21.17 32.4 33.3
6.3 1150 7.80 0.15 498 166 21.28 32.4 33.3
12.5 1200 9.50 0.18 576 219 23.05 32.4 33.3
18.8 1250 22.90 0.44 810 478 20.87 32.5 33.4
25.0 1300 46.70 0.89 1050 838 17.94 32.5 33.5
31.3 1350 80.80 1.55 1284 1348 16.68 32.6 33.5
37.5 1400 129.70 2.49 1530 1963 15.13 32.6 33.7
43.8 1450 196.00 3.77 1752 2702 13.79 32.7 34.0
50.0 1500 206.00 5.53 1992 3485 16.92 32.8 34.5
56.3 1550 392.00 7.60 2232 4426 11.29 32.8 35.0
62.5 1600 533.00 10.37 2460 5447 10.22 32.9 35.6
68.8 1650 727.00 14.19 2700 6648 9.14 32.9 36.4
75.0 1700 926.00 18.16 2934 7707 8.32 33.0 37.6
81.3 1750 1177.00 23.34 3124 9127 7.75 33.2 39.2
87.5 1800 1481.00 29.46 3414 10595 7.15 33.4 40.5
93.8 1850 1857.00 37.16 3642 12147 6.54 33.6 43.7
100.0 1900 2343.00 47.53 3872 13934 5.95 33.7 47.1
– 1950 2408.00 48.99 3912 14203 5.90 33.9 53.0

Maximum temperature after turning off the power supply: heat sink 41 °C, motor 66.7 °C.

Performance data tested at approximately 35 °C and 123 m above sea level in Lucknow, India.

2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
