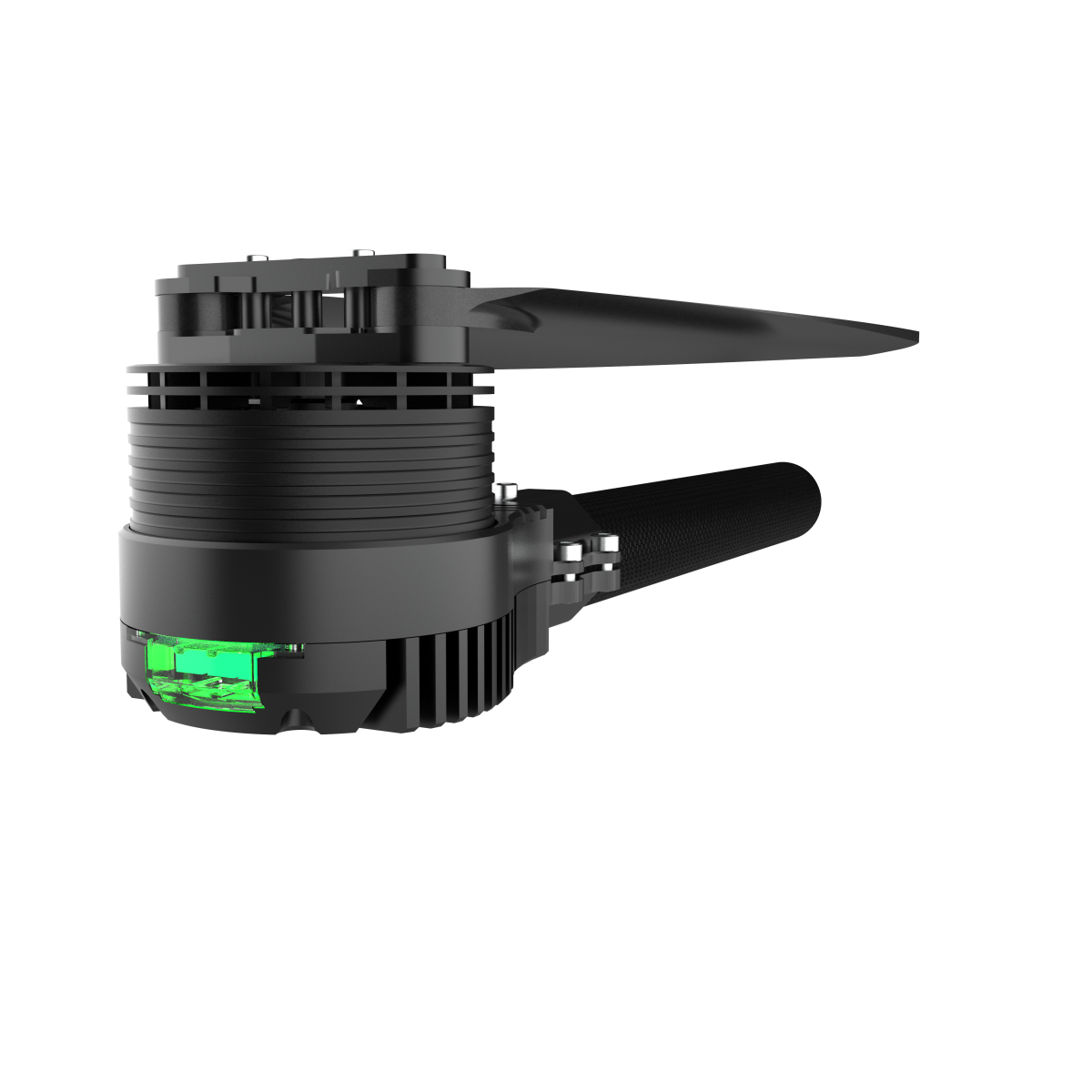

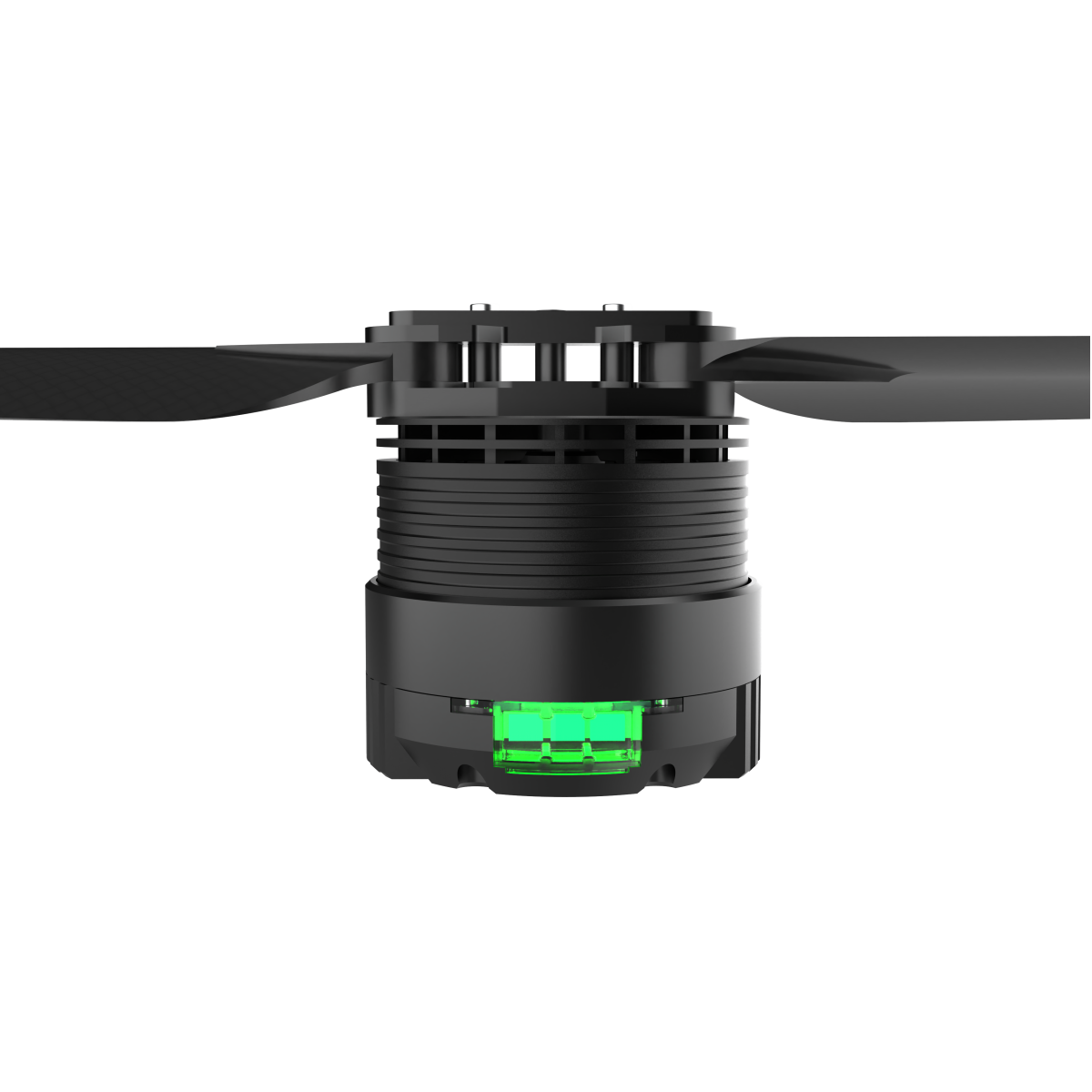

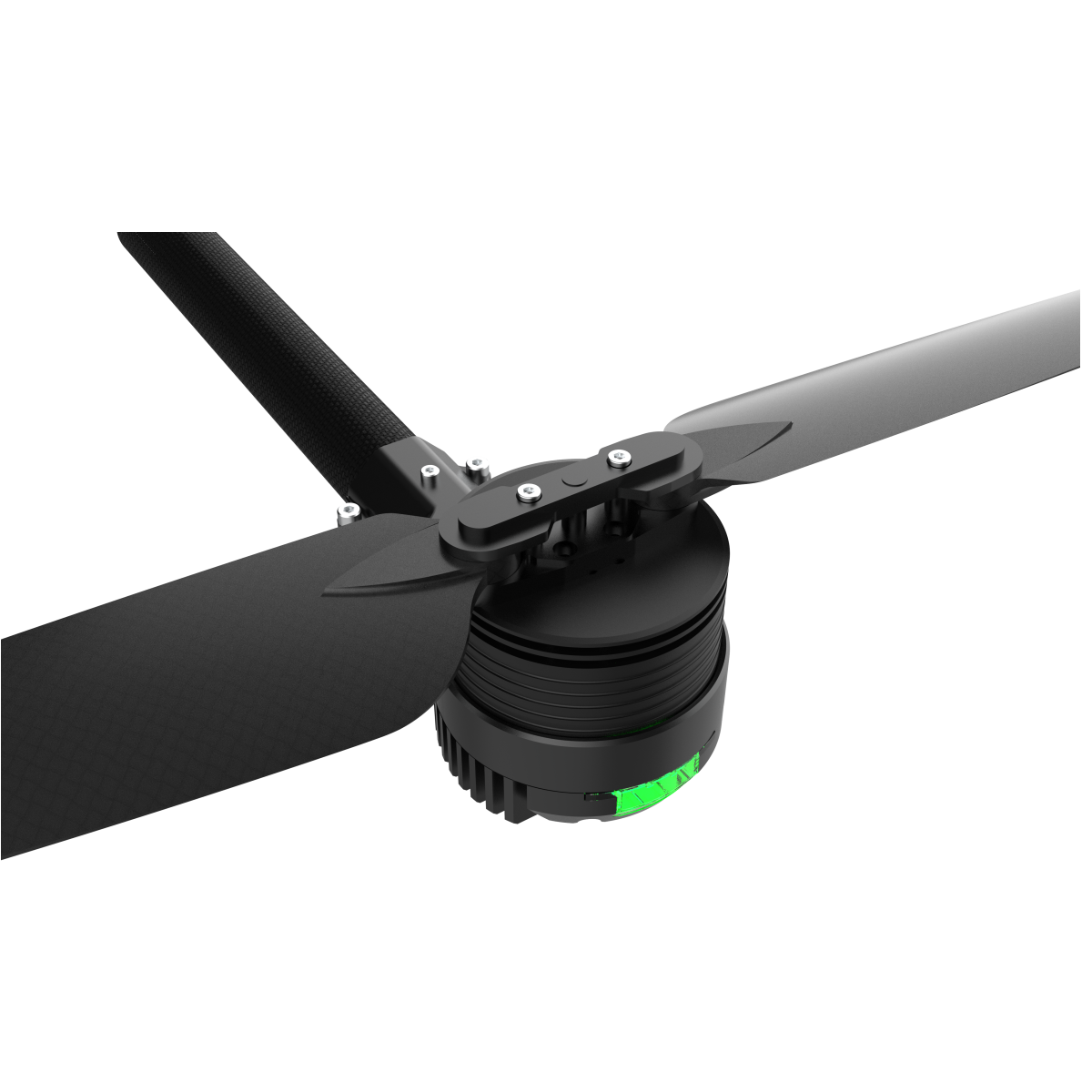

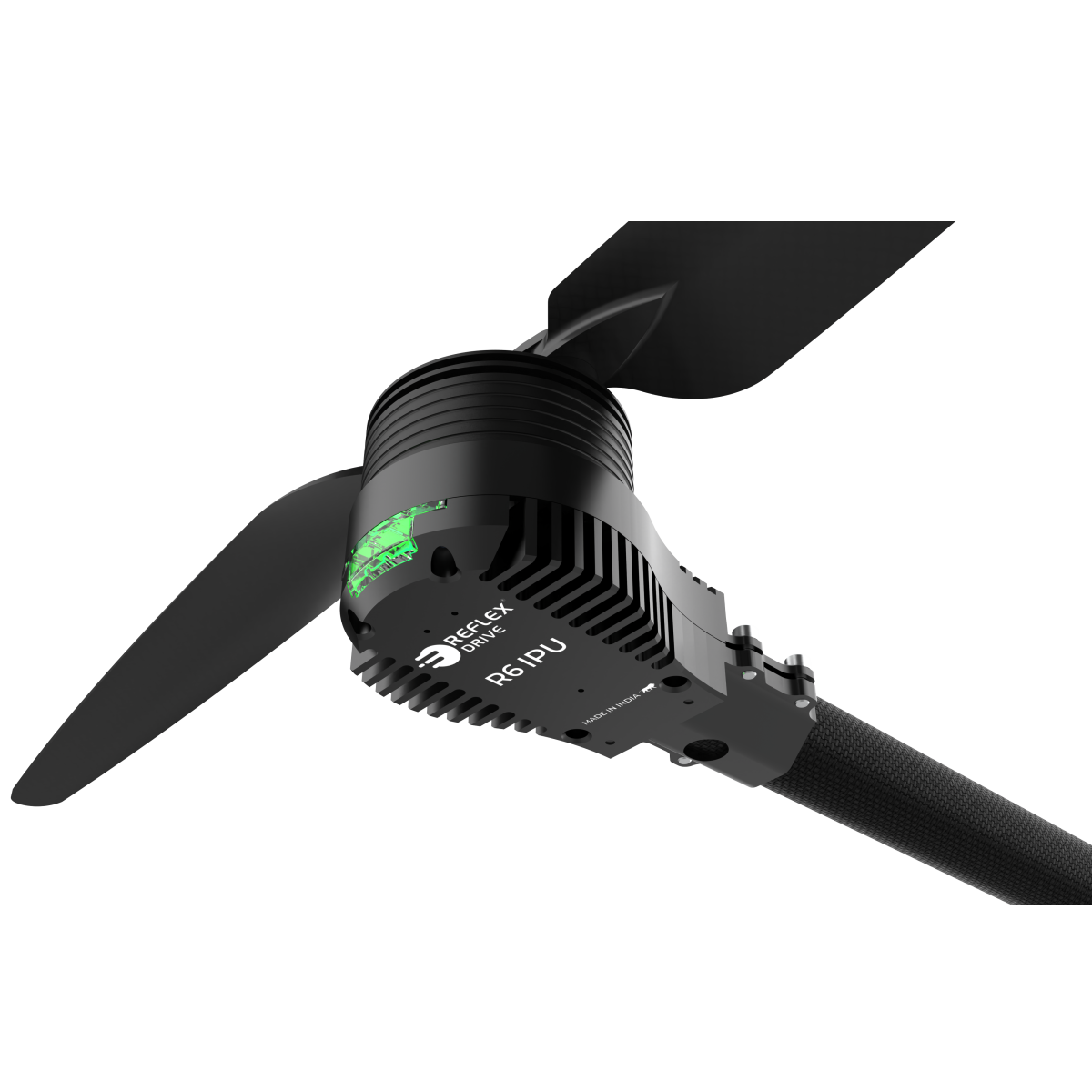

The R6 IPU (Integrated Propulsion Unit) is a compact, propulsion unit for UAV applications. Designed around a 160KV motor and optimised for 6S–14S operation, it delivers 12.5 kgf of thrust with smooth, predictable response across the throttle range.
By integrating the ESC, motor, and propeller system into a single unit, the R6 IPU simplifies installation while enhancing reliability and system efficiency. It supports both PWM and CAN communication, along with real-time telemetry including voltage, current, temperature, and motor RPM, enabling precise control and system monitoring.
Built for real-world conditions, the unit features a mechanical structure compatible with 30 mm arm setups and operates reliably in environments ranging from -20°C to 50°C. Whether deployed in industrial drones, heavy-lift platforms, or endurance-focused systems, the R6 IPU offers a well-balanced combination of power, efficiency, and integration simplicity.
The R6 IPU is a compact integrated propulsion unit that combines a motor, ESC and propeller mount in one assembled unit. Its datasheet lists 12.5 kgf of maximum thrust, 2650 W maximum power, 800 g weight without a propeller (868 g with one), a 30 mm arm tube and a recommended take-off weight of 3.5 to 5.5 kg per rotor at 48 V and sea level. It operates from -20 to 50 °C and accepts throttle signals from 50 to 450 Hz. An IPU removes the need to match and wire a separate motor, ESC and propeller, which saves integration time on new airframes.
Among our integrated propulsion units, the R6 is the lighter, smaller-tube option, and the R8 IPU offers 14 kgf of thrust on a 40 mm arm tube. If you prefer to select your own components, compare it with the RD6218 160KV motor, which has the same 160KV rating and 12.5 kgf of thrust, plus an ESC from our UAV ESCs. Contact [email protected] for availability and integration help.
| Product name | RD R6 IPU |
| Country of Origin | India |
| Throttle signal frequency | 50-450Hz |
| Weight (without propeller) | 800gm |
| Total weight (incl. propeller) | 868gm |
| Arm tube dia (OD) | 30mm |
| Maximum Thrust | 12.5kg |
| Recommended take-off weight | 3.5-5.5kg/rotor (48V sea level) |
| Max. Power | 2650W |
| operating Temperature | -20~50°C |
| Compliant | IPC Class 2 |
| Certification | JSS 55555 |
| Product | R6 IPU |
| ESC | FOC 80A V5 |
| Motor | RD 6218 (160KV) |
| Propeller | RD 2480 |
| Power source | 48 V DC supply |

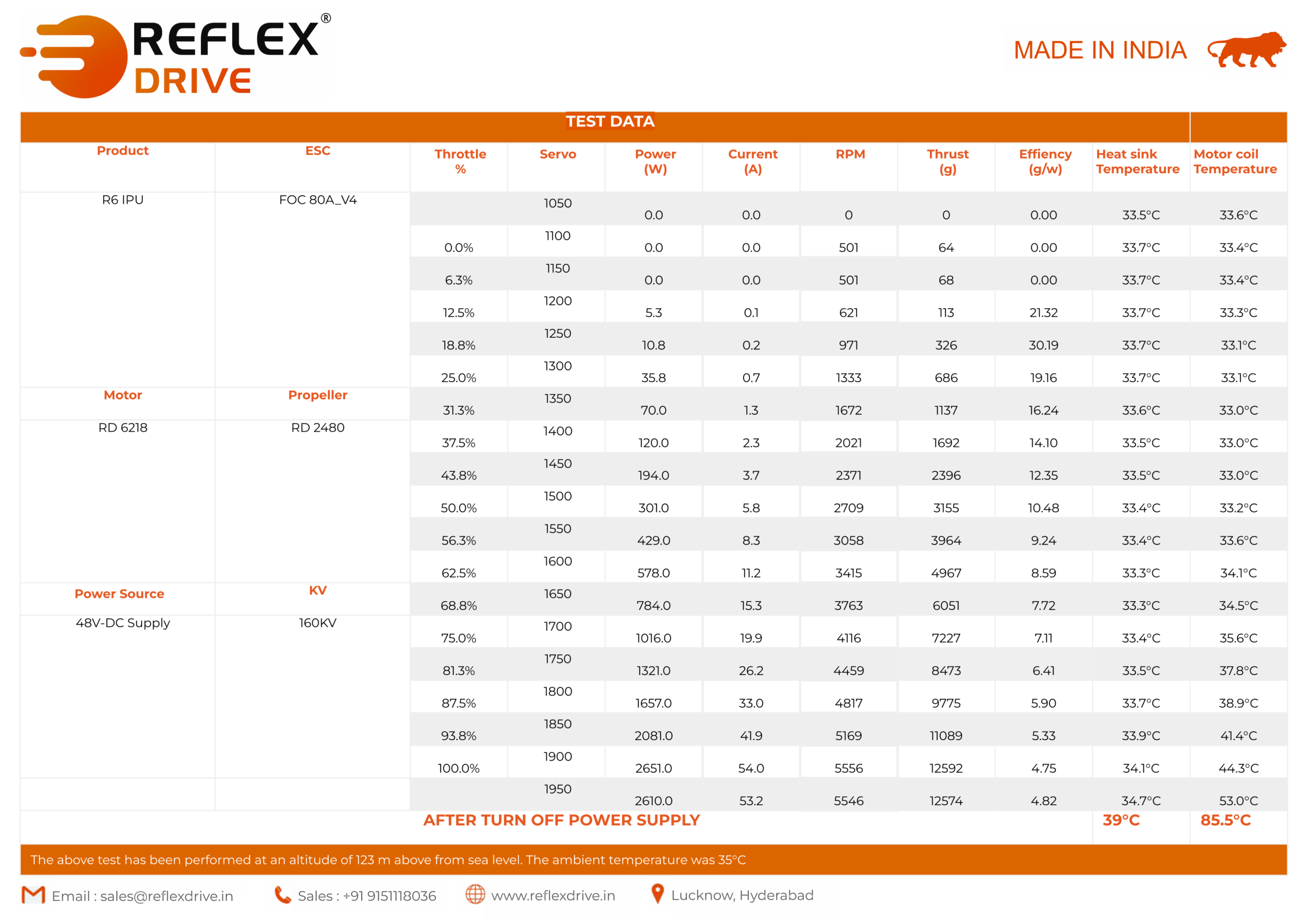

| Throttle % | Servo (µs) | Current (A) | Power (W) | RPM | Thrust (g) | Efficiency (g/W) | Heat sink temp (°C) | Motor coil temp (°C) |
|---|---|---|---|---|---|---|---|---|
| – | 1050 | 0.0 | 0.0 | 0 | 0 | 0.00 | 33.5 | 33.6 |
| 0.0 | 1100 | 0.0 | 0.0 | 501 | 64 | 0.00 | 33.7 | 33.4 |
| 6.3 | 1150 | 0.0 | 0.0 | 501 | 68 | 0.00 | 33.7 | 33.4 |
| 12.5 | 1200 | 0.1 | 5.3 | 621 | 113 | 21.32 | 33.7 | 33.3 |
| 18.8 | 1250 | 0.2 | 10.8 | 971 | 326 | 30.19 | 33.7 | 33.1 |
| 25.0 | 1300 | 0.7 | 35.8 | 1333 | 686 | 19.16 | 33.7 | 33.1 |
| 31.3 | 1350 | 1.3 | 70.0 | 1672 | 1137 | 16.24 | 33.6 | 33.0 |
| 37.5 | 1400 | 2.3 | 120.0 | 2021 | 1692 | 14.10 | 33.5 | 33.0 |
| 43.8 | 1450 | 3.7 | 194.0 | 2371 | 2396 | 12.35 | 33.5 | 33.0 |
| 50.0 | 1500 | 5.8 | 301.0 | 2709 | 3155 | 10.48 | 33.4 | 33.2 |
| 56.3 | 1550 | 8.3 | 429.0 | 3058 | 3964 | 9.24 | 33.4 | 33.6 |
| 62.5 | 1600 | 11.2 | 578.0 | 3415 | 4967 | 8.59 | 33.3 | 34.1 |
| 68.8 | 1650 | 15.3 | 784.0 | 3763 | 6051 | 7.72 | 33.3 | 34.5 |
| 75.0 | 1700 | 19.9 | 1016.0 | 4116 | 7227 | 7.11 | 33.4 | 35.6 |
| 81.3 | 1750 | 26.2 | 1321.0 | 4459 | 8473 | 6.41 | 33.5 | 37.8 |
| 87.5 | 1800 | 33.0 | 1657.0 | 4817 | 9775 | 5.90 | 33.7 | 38.9 |
| 93.8 | 1850 | 41.9 | 2081.0 | 5169 | 11089 | 5.33 | 33.9 | 41.4 |
| 100.0 | 1900 | 54.0 | 2651.0 | 5556 | 12592 | 4.75 | 34.1 | 44.3 |
| – | 1950 | 53.2 | 2610.0 | 5546 | 12574 | 4.82 | 34.7 | 53.0 |
Maximum temperature after turning off the power supply: heat sink 39 °C, motor 85.5 °C.
Performance data tested at approximately 35 °C and 123 m above sea level in Lucknow, India.
2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
