RD 1760 Propeller

RD 1760 Propeller

RD 1760 Propeller

17.71 inch Folding

Product Description

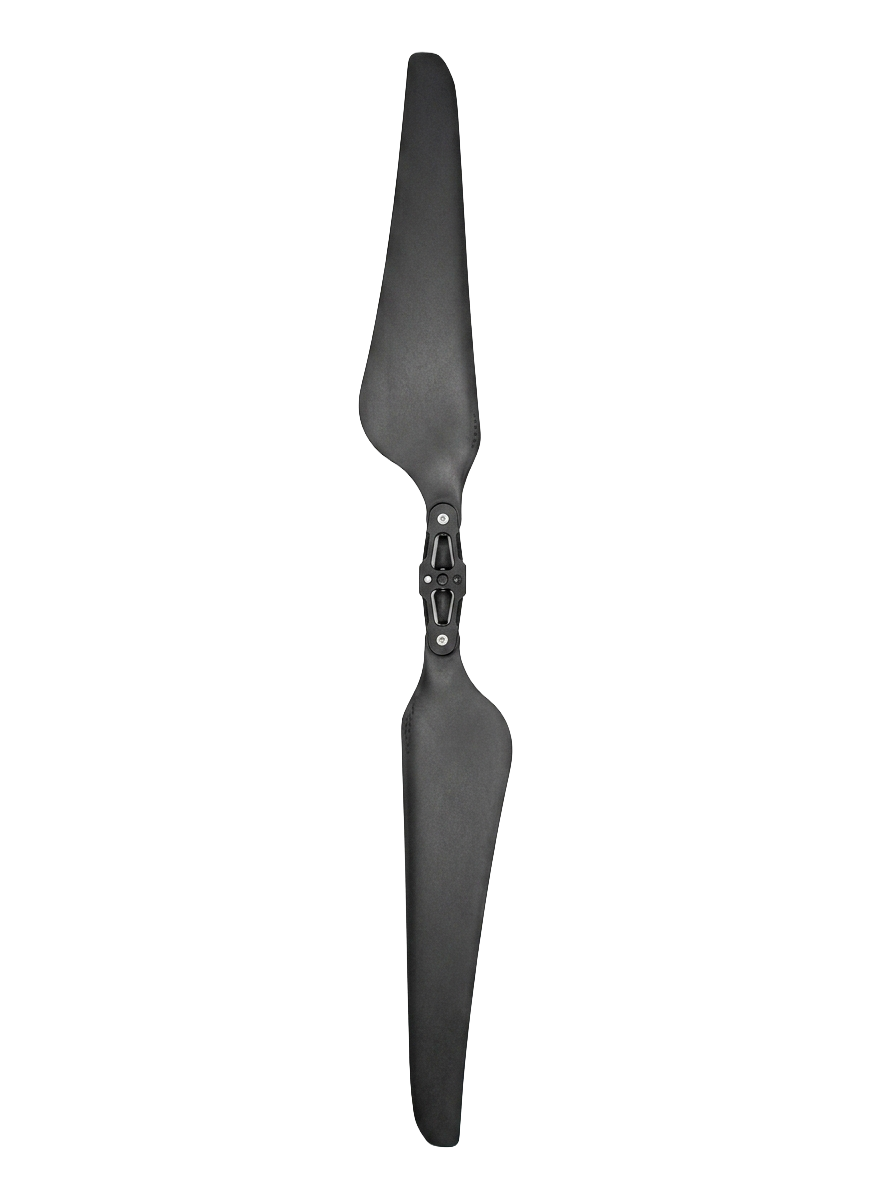

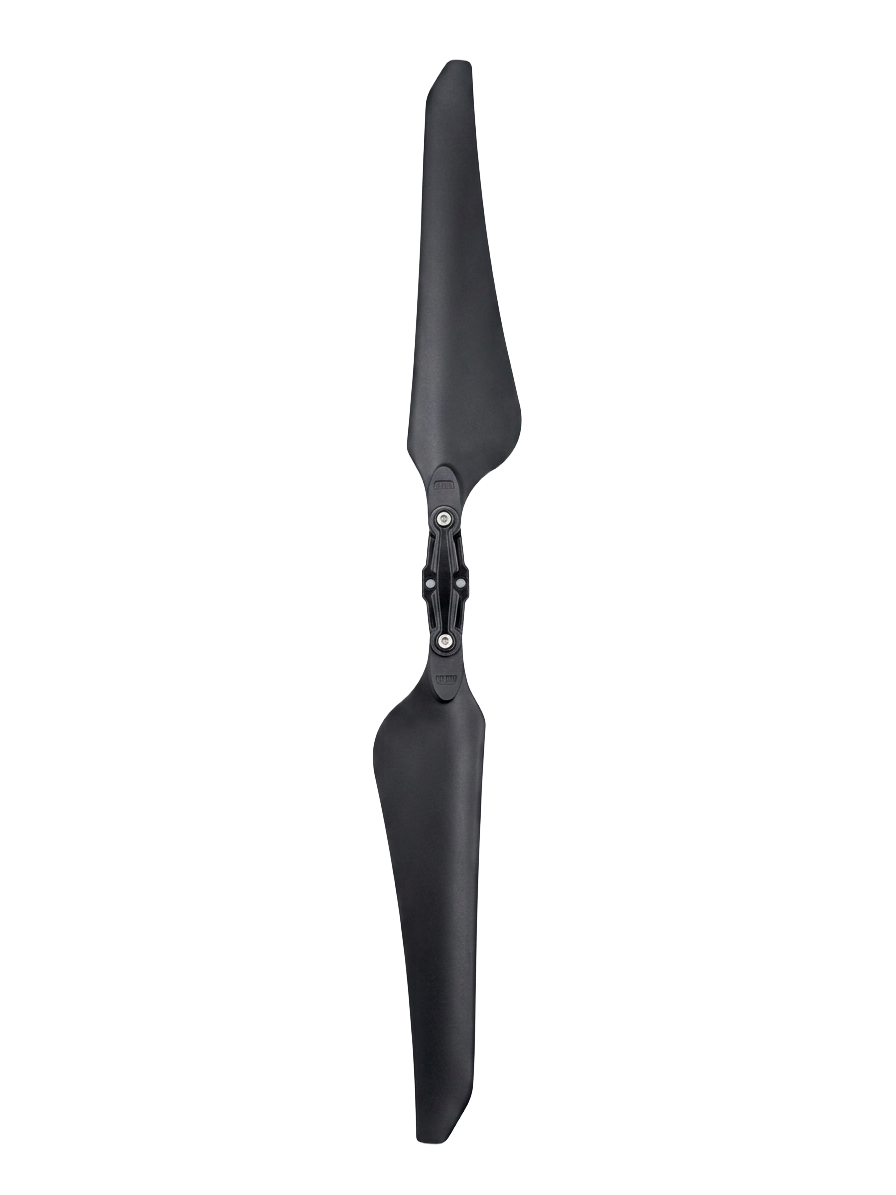

The RD 1760 Propeller is a folding propeller, available in clockwise (CW) and counter-clockwise (CCW) versions. Diameter 17.71 inches, width 6.0 inches. Each blade weighs 17 grams, which keeps the weight of the aircraft down and supports longer flight times. The folding design reduces drag when the propeller is not driven. Designed and manufactured in India.

Where the RD 1760 fits

The RD 1760 is a 17-inch class propeller with a diameter of 450 mm (17.71 inch) and a 6-inch pitch. The datasheet lists a single blade weight of 17 g, and the propeller is made from high-strength engineering plastic. It is used in builds in the 5 to 8 kg class, where it supports steady, stable hover and lift.

Check the rated RPM and thrust against your motor and battery before you fly, as the right figures depend on the whole powertrain.

How it compares

Among our propellers, the RD 1760 is larger than the 15-inch RD 1552 Propeller and smaller than the 24-inch RD 2480 Propeller and the 30-inch RD 3090 Propeller. Smaller propellers spin at higher RPM and respond faster, while larger ones are more efficient at hover and suit lower-KV motors in our UAV motors range. Contact [email protected] for help matching a propeller to your motor and take-off weight.

Specifications

S.No. Parameter Value
1. Diameter (Inch) 450mm (17.71 inch)
2. Pitch (Inch) 6 inch
3. Average Single Blade Weight (g) 17 g
4. Total Weight (Incl Hub) 23 g
5. Recommended Max RPM Typically 2000-3500 RPM
6. Recommended Max Thrust (kg) Depending on motor/battery
7. Limit RPM (RPM) Design emphasizes flexibility and stability; follow motor/ESC limits
8. Common Thrust Range (kg) Used in builds for efficient hovering/lift in 5-8+ kg class drones
9. Material High-strength engineering plastic
10. Type 2-blade folding propeller (CW and CCW pairs)
S.No. Item  Size
1 Single blade length 206mm
2 Total assembled length 450mm
3 Centre hole 3.0 mm
4 Mounting base thickness 5.35 mm
5 Applicable motor shaft Ø4mm
6 Motor Mounting 2 x M3, PCD 12 mm
7 Recommended Motor RD 5008

Engineering Data

Propeller RD 1760 folding
Test motor RD 5008 (340KV)
ESC RD D-Pro V3 ESC 6S, 60A
Power source SMPS 24 V
Power (W) RPM Thrust (g)
0 0 0.06
3.5 619 66
7.1 959 130
15.1 1278 235
26 1662 361
41.5 1998 499
63 2325 670
85 2605 827
117 2886 1005
150 3143 1192
186 3326 1377
226 3528 1592
272 3815 1775
323 4019 1984
372 4205 2161
429 4368 2330
478 4544 2496
536 4672 2686
639 4896 2968

2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
