RD 1552 Propeller

RD 1552 Propeller

RD 1552 Propeller

15 Inch Folding

Product Description

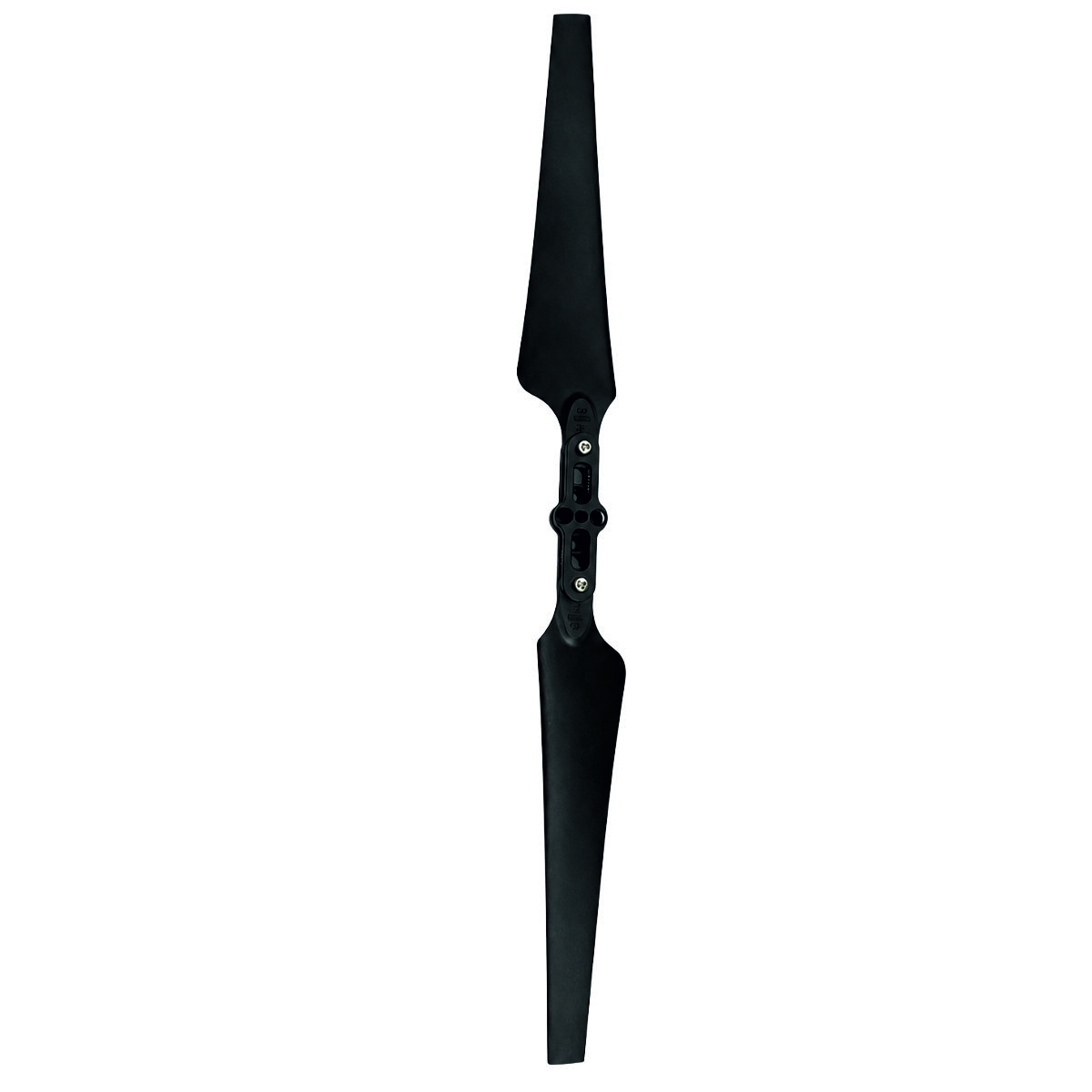

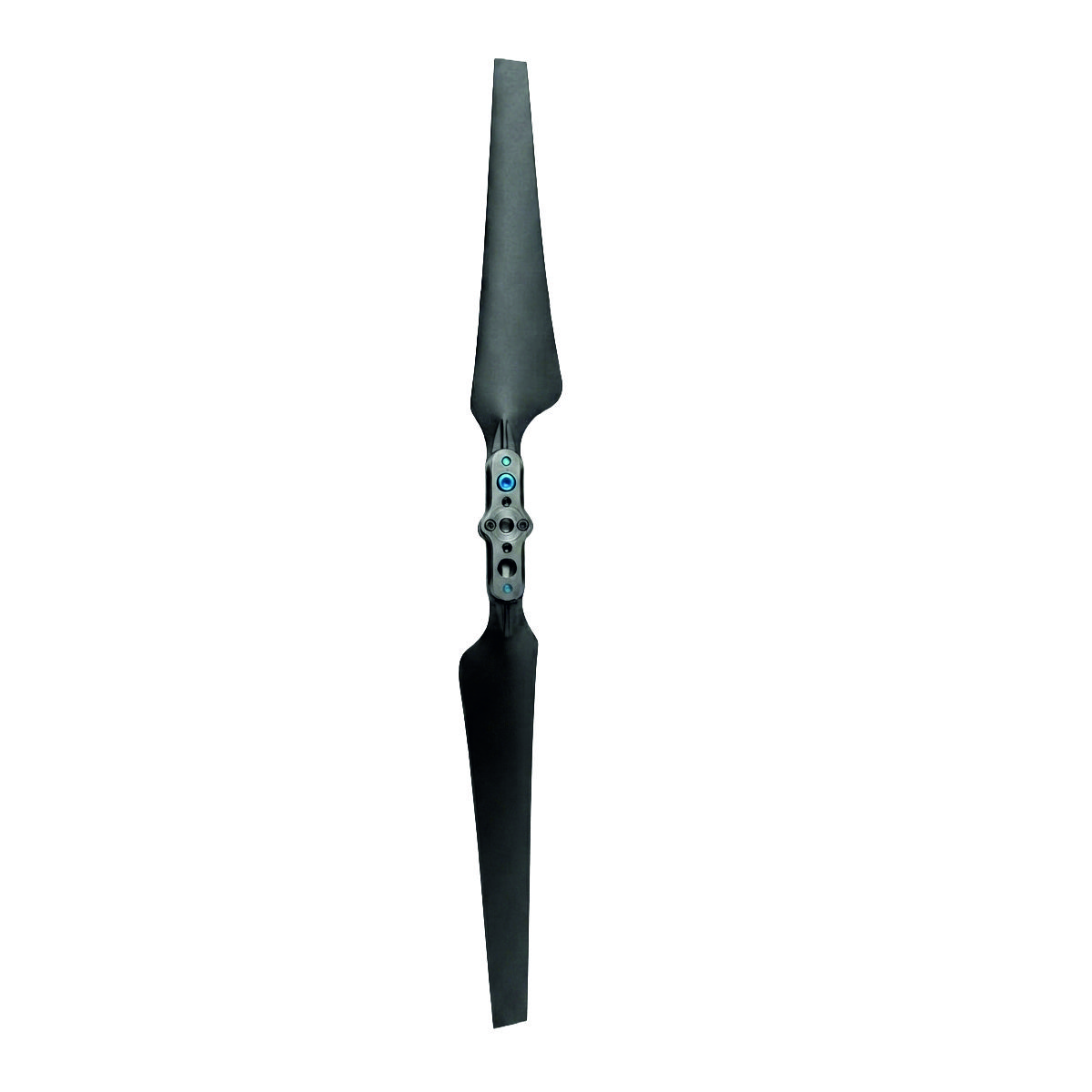

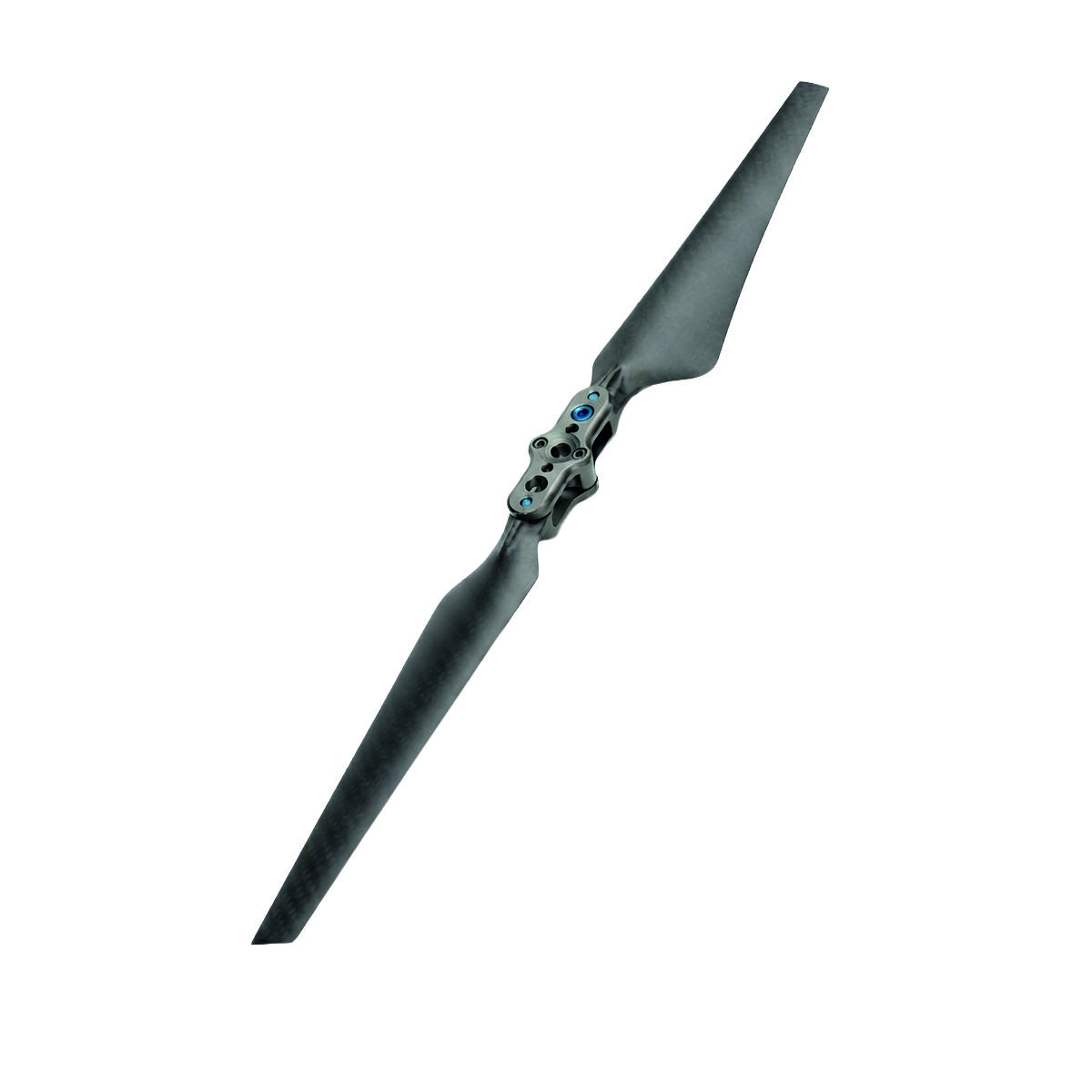

The RD 1552 Propeller is a folding propeller, available in clockwise (CW) and counter-clockwise (CCW) versions. Diameter 15 inches, width 5.2 inches. Each blade weighs 8 grams, which keeps the weight of the aircraft down and supports longer flight times. The folding design reduces drag when the propeller is not driven. Designed and manufactured in India.

Where the RD 1552 fits

The RD 1552 is a 15-inch propeller, about 381 mm across, with a pitch of about 5.2 inches. The datasheet lists a single blade weight of 8 g and an assembled weight of 23 to 30.5 g, making it one of the lightest propellers we offer. It is intended for lighter multicopters that benefit from fast response and high RPM, such as small camera platforms, training airframes and compact inspection drones.

How it compares

Among our propellers, the RD 1552 is the smallest. The RD 1760 Propeller (450 mm) is the next size up, followed by the 24-inch RD 2480 Propeller and the 30-inch RD 3090 Propeller. Smaller propellers generally suit higher-KV motors such as the RD3113 900KV or RD5008 340KV, while the larger sizes pair with low-KV, higher-voltage motors for endurance. Contact [email protected] for help matching a propeller to your motor and take-off weight.

Specifications


S.No. Parameter  Value
1. Diameter (Inch) 15 inches (approx. 381mm total span)
2. Pitch (Inch) 5.2 inch (based on similar 1552 designs)
3. Average Single Blade Weight (g) 8g (blade only)
4. Total Weight (Incl Hub) 23-30.5g per assembled prop
5. Recommended Max RPM Typically 2500-4000 RPM (higher than 1760 due to smaller size)
6. Recommended Max Thrust (kg) Depending on motor/battery (suitable for lighter multicopters)
7. Limit RPM (RPM)  Design emphasizes flexibility and stability; follow motor/ESC limits
8. Common Thrust Range (kg) Used in builds for efficient hovering/lift in 2-5+ kg class drones (smaller/lighter setups than 1760)
9. Material High-strength engineering plastic (optimized airfoil); Metal folding holders/clamps (6061-T6 aluminium in some kits)
10. Type 2-blade folding propeller (CW and CCW pairs)
11 Motor Mounting 2 x M3, PCD 12 mm
12 Recommended Motor RD 4006
13 Single blade length 173 mm
14 Total assembled length 381 mm (15 in)
15 Centre hole 3.0 mm
16 Mounting base thickness 3.95-4.0 mm
17 Applicable motor shaft Ø4 mm (typical)

Engineering Data

Propeller RD 1552 folding
Test motor RD 4006 (415KV)
ESC RD D-Pro V3 ESC 6S, 60A
Power source SMPS 24 V
Power (W) RPM Thrust (g)
0 0 0.06
2.5 832 25
4.5 1274 62
8.4 1723 121
15.4 2135 191
23.7 2551 279
33.7 2920 367
47 3276 462
61.6 3600 563
78 3903 660
97.4 4192 764
119.6 4482 878
142.8 4748 983
170 5002 1083
198 5223 1188
224.9 5438 1297
257 5645 1394
288.7 5833 1482
339.1 6102 1608

2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
