RD PDB 250A

RD PDB 250A

RD PDB 250A

4S - 12S

Product Description

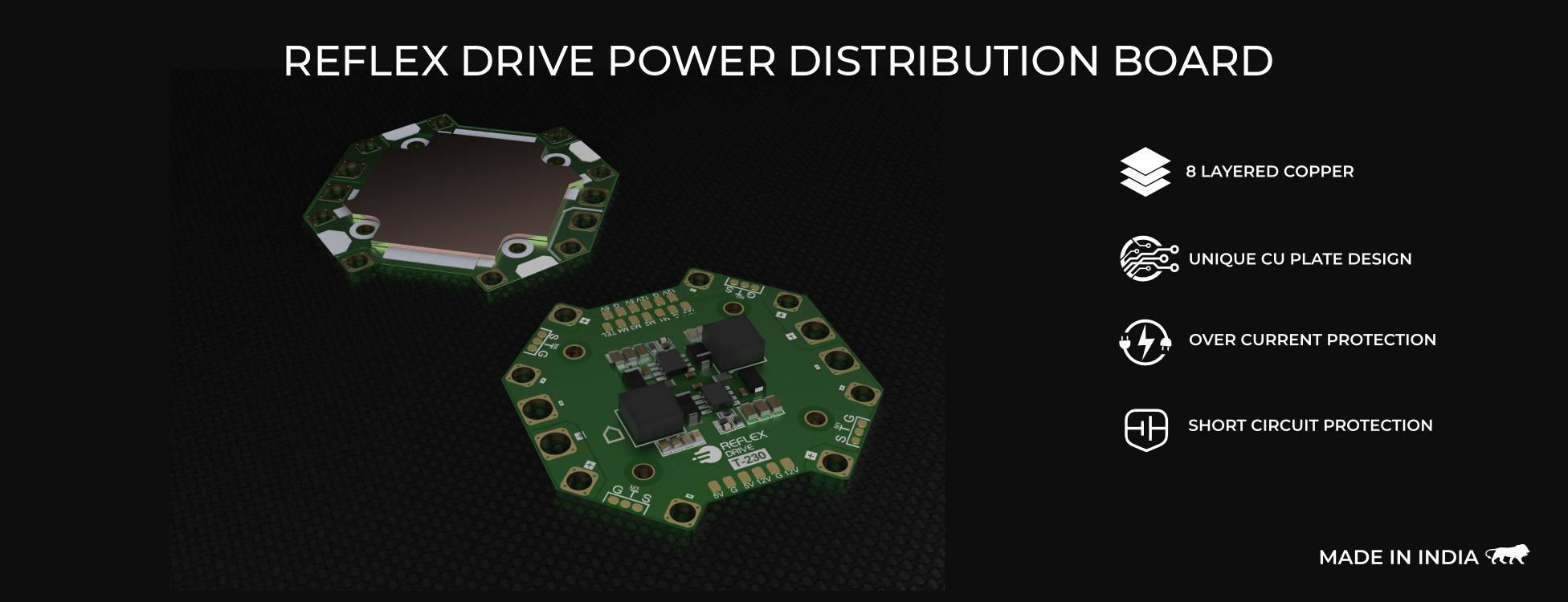

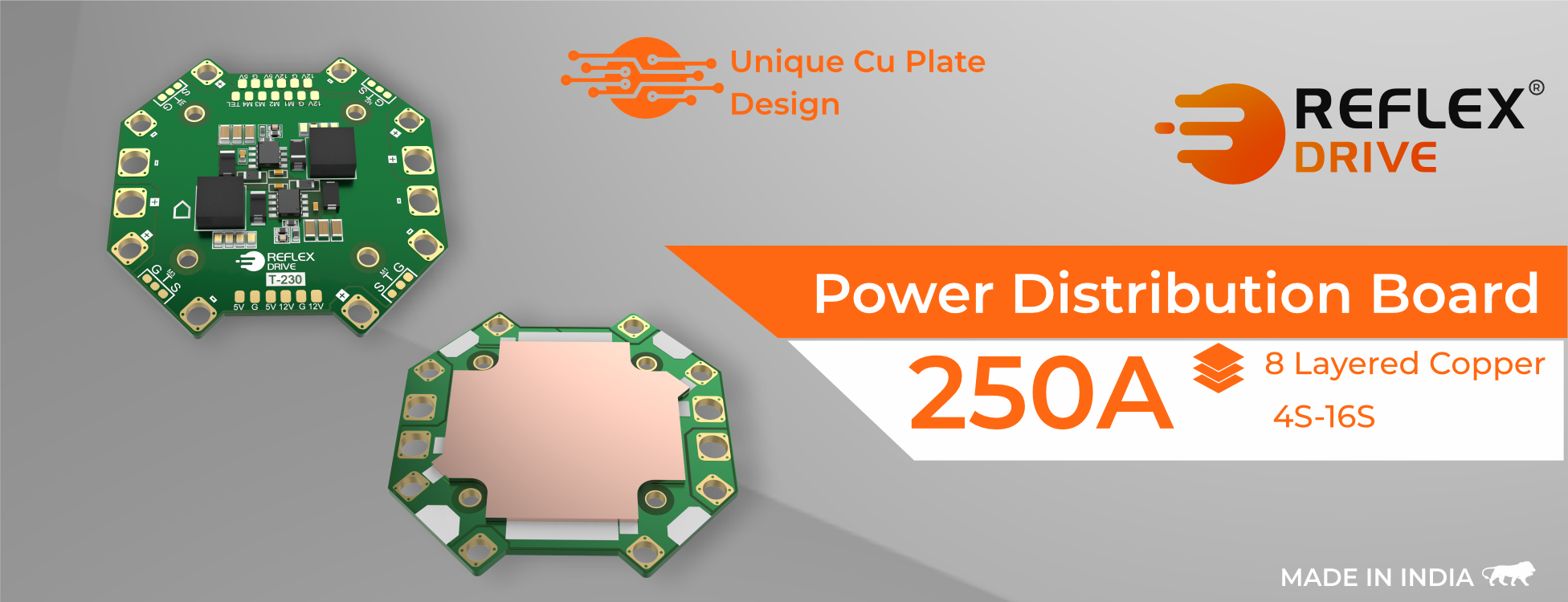

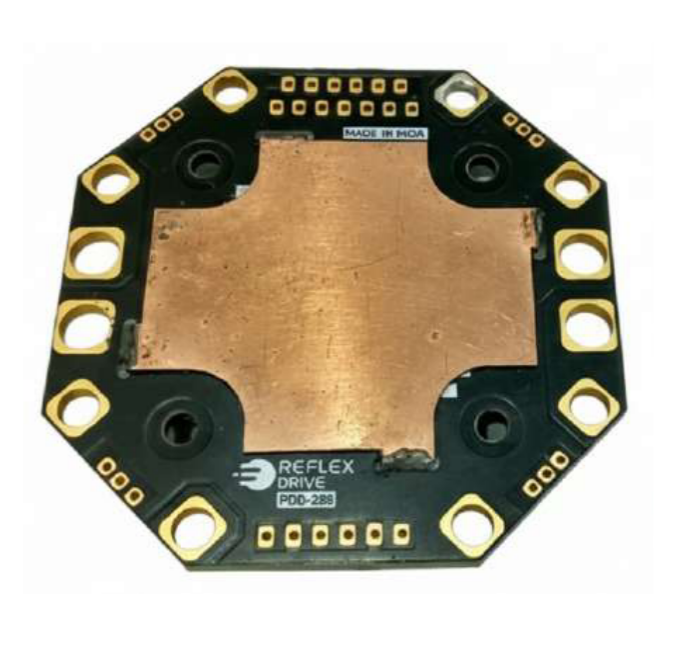

RD’s Power distribution board, The PDB is designed for high voltage and high current applications. It consists of 4 layers of heavy copper to sustain maximum current demand whilst dissipating minimal heat hence protecting sensitive circuitry. This PDB can sustain up to 62A continuous current to each ESC leg. Also features 12V-2 Amp and 5V-2 Amp regulators with a maximum of 12S input.

Where the RD PDB 250A fits

The RD PDB 250A is a high-current power distribution board for 4S to 12S systems. The datasheet lists 250 A continuous current, 4 layers of copper, five 12 V supply points at 2 A, four 5 V supply points at 2 A, connections for four ESCs, over-current and short-circuit protection, and a weight of only 15 g. It is aimed at multirotors where the sum of the motor currents is high and a heavy cable harness would add weight or heat.

How it compares

Among our power distribution boards, the 250A has the higher continuous rating, while the RD PDB 150A offers built-in voltage and current sensing, configurable BECs and four CAN ports at 100 A continuous. Choose the 250A for heavy-lift builds with large motors such as the RD8030 160KV on every arm. Pair it with a capacitor bank such as the RD CAP BANK to reduce voltage ripple. Contact [email protected] for help with your power architecture.

Specifications

Continuous Current 250A
Input Voltage 4S~12S
12 Volt supply points 5 points, 2A
5 Volt supply points 4 Points, 2A
Weight 15 grams
Over current and Short circuit protection Yes
Layers of copper 4
Temperature 180 degree Celsius
Number of power and signal connections 4 ESCs
Status Production

Engineering Data

2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
