RD8030 160KV

RD8030 160KV

RD8030 160KV

160KV I 12S

Product Description

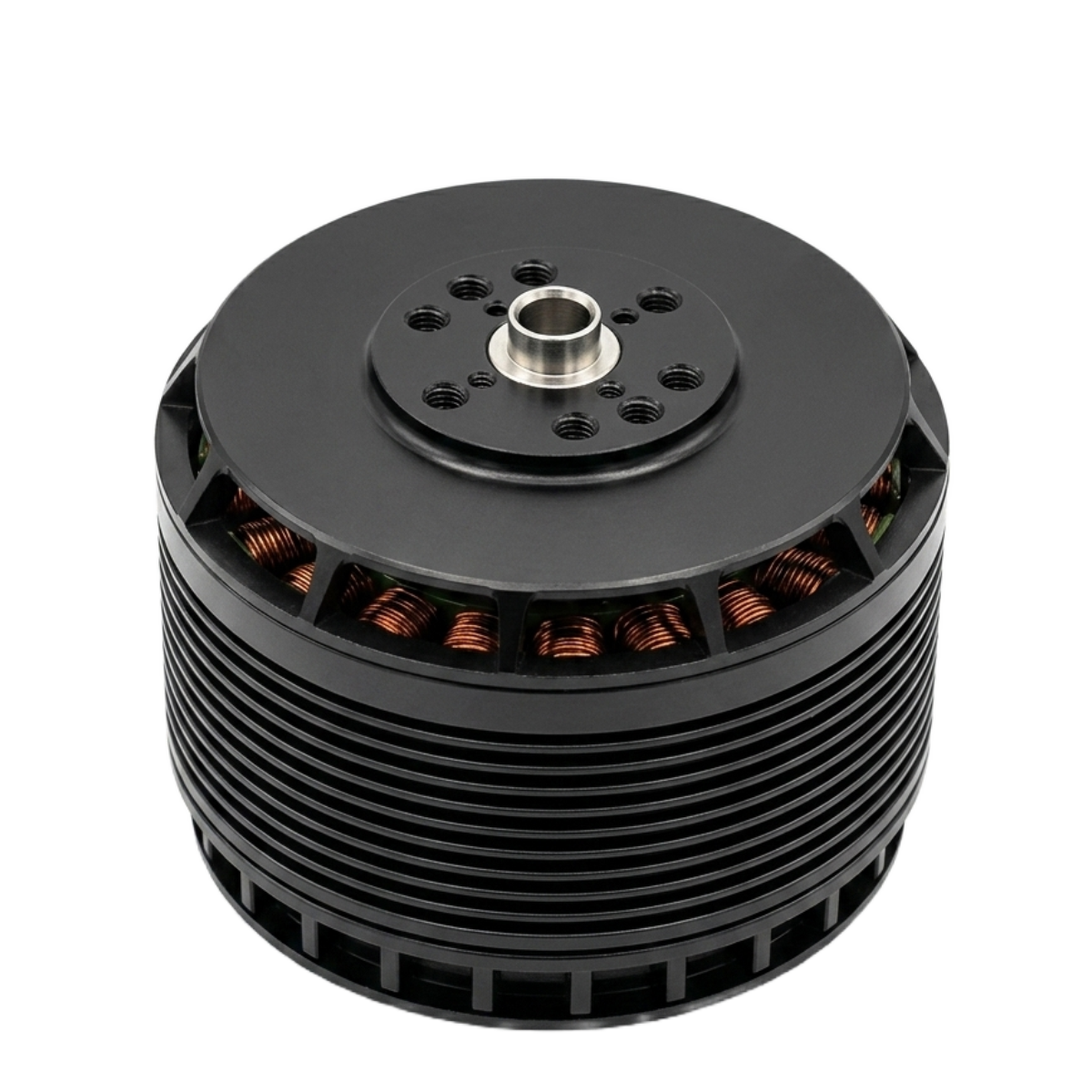

The RD 8030 is a 160 KV BLDC outrunner motor for endurance and heavy-lift applications. It delivers up to 23 kgf of maximum thrust and is rated for 5600 W.

Where the RD8030 fits

The RD8030 is the heavy-lift motor in the Reflex Drive range. It is a 160KV outrunner built for 12S packs, with a maximum thrust of 23 kgf, a maximum power of 5600 W and a recommended take-off weight of 20 kg per the datasheet. That puts it in the class of large multirotors, heavy-lift platforms and long-endurance craft where each motor has to carry a lot of the airframe.

At about 900 g with a Ø90 × 81 mm body, it is a sizeable motor, so it suits frames with strong arms and room for a large-diameter propeller. Peak current is 135 A, so pair it with an ESC rated for that load; the recommended match is the RD A-Series ESC 150A.

How it compares

Within our UAV motors, the RD8030 offers the most thrust. The RD8015 115KV gives 14 kgf at 115KV and weighs 509 g, which suits mid-size platforms, and the RD6218 160KV gives 12.5 kgf at 160KV and 408 g. Step up to the RD8030 when your airframe weight goes beyond what those two can lift with a safe margin. Smaller builds are better served by the RD7006 230KV or the RD5008 340KV. All Reflex Drive motors are designed and made in India; contact [email protected] for pricing, lead times and propeller matching.

Specifications

Product name RD 8030 DRONE MOTOR
Country of Origin India
Maximum Thrust 23 kgf
Recommended battery 12S
Recommended take off weight 20 KG
Total weight Approx. 900 g
Cable Length 100mm
Motor
Stator Size Ø80 x 30 mm
Kv rating 160 kv
Motor Size Ø90 x 81 mm
Maximum Power 5600 W @12S
Peak current 135 A
Recommended ESC A-Series ESC 150A (FOC)

Engineering Data

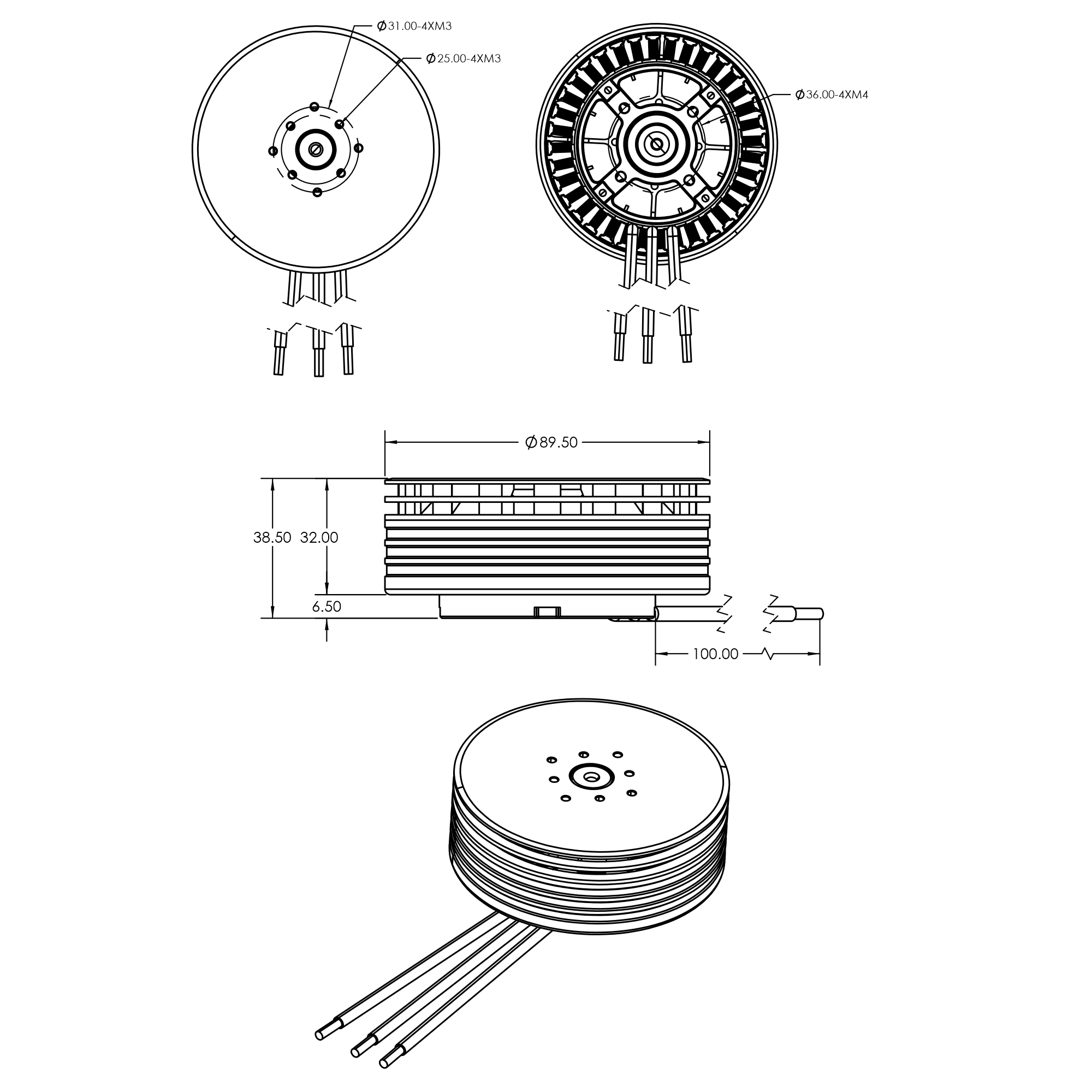

2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
