RD S-Series ESC

RD S-Series ESC

RD S-Series ESC

6S-35A

Product Description

Reflex Drive’s  S Series ESC offer a light weight solution for BLDC motors – and are proudly made in India.



Specifications

Continuous Current Range 35A
Burst Current (20 Sec) 40A
Voltage 2S-6S
Heatsink Plate Yes
BEC No
Max Operating Temperature 70’C
Dimensions 17mmx70mm
Weight 10gm Excluding Wire
Telemetry Yes
Current Sense Yes
Communication Protocol PWM, DShot300
Recommended Motors RD4006
Status Production

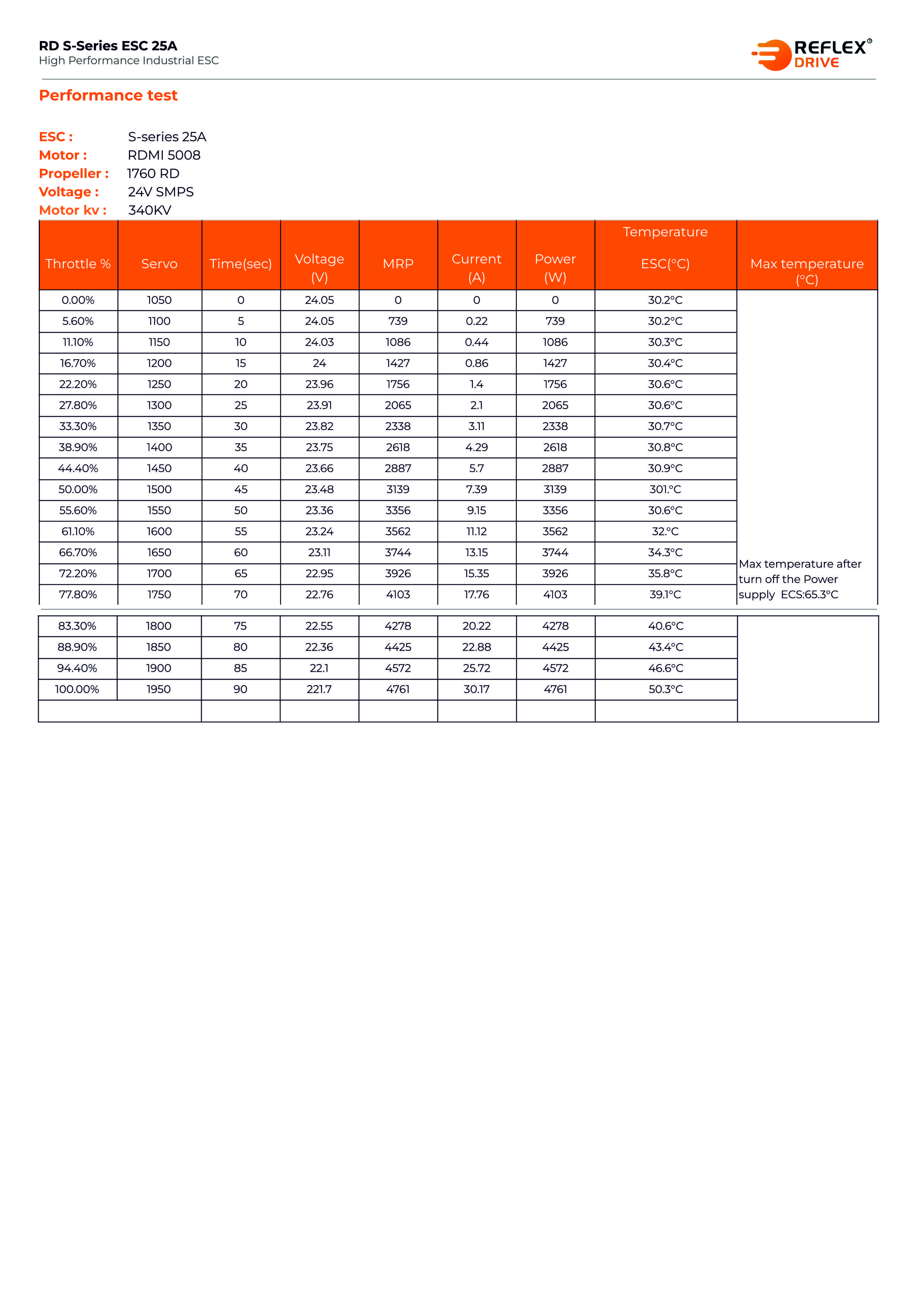

Performance Data

Performance Data

Test Video

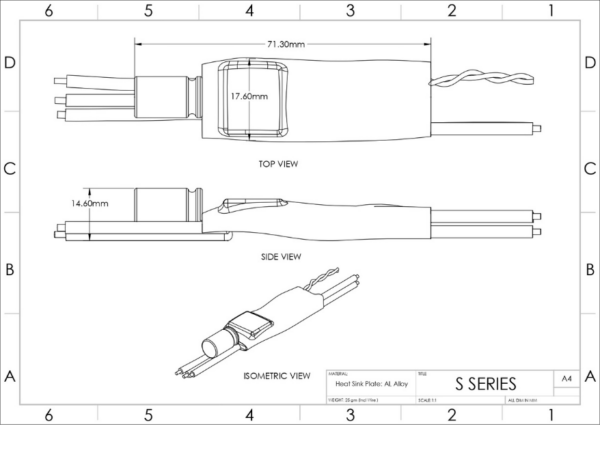

CAD Files
