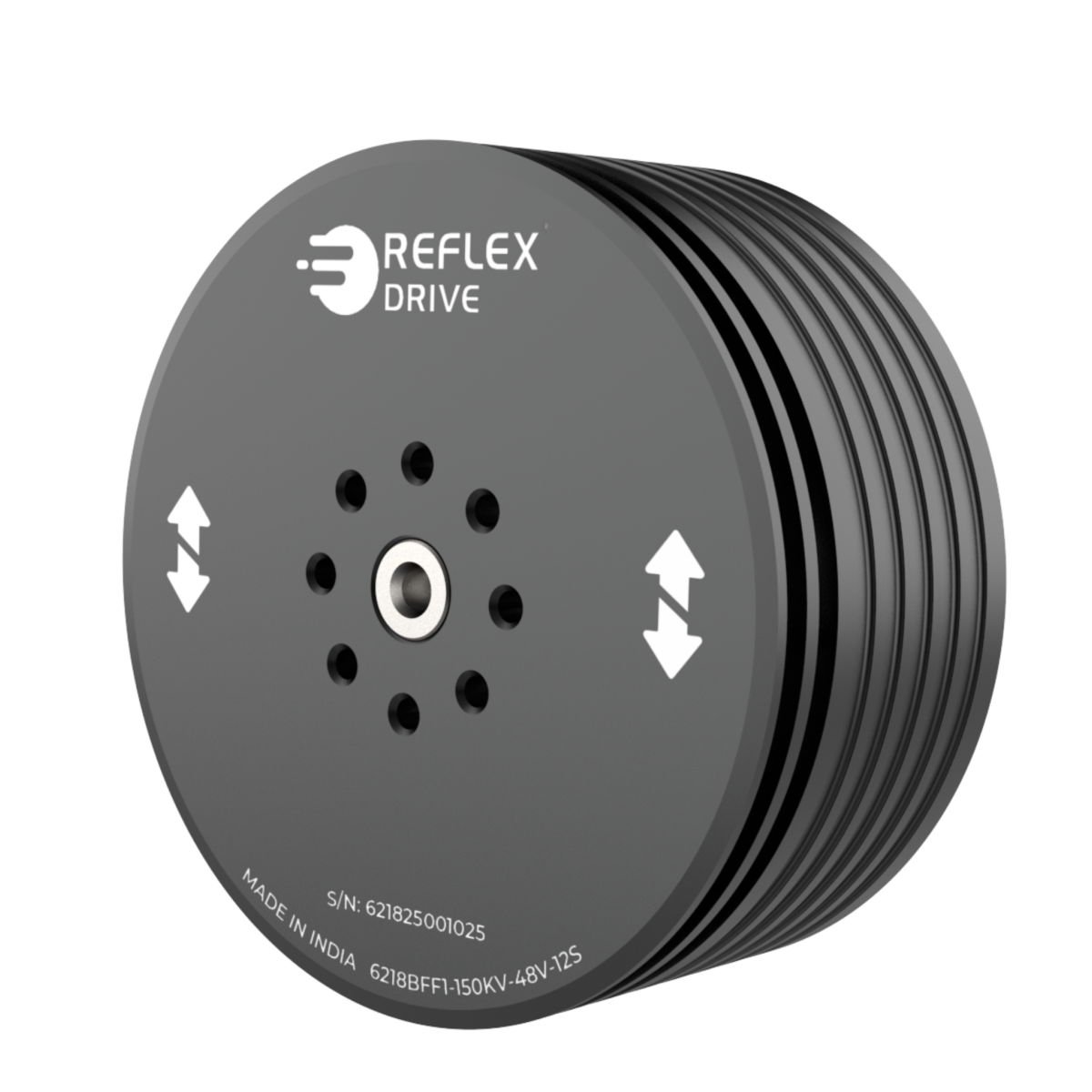

RD 6218 is a brushless outrunner motor with a KV rating of 160KV, Made in India. It operates within a 12S voltage range and features
advanced cooling for reliable performance and durability under high-thrust conditions.
The motor can handle a continuous current of 25A and is capable of generating a peak power output of 2.4 kW. It is designed for seamless
compatibility with 22-inch to 24-inch propellers.
| Product name | RD 6218 UAV BLDC MOTOR |
| Country of Origin | India |
| Motor Type | Outrunner |
| KV Rating | 160 KV |
| Maximum Thrust | 12.5 KG |
| Stator Poles / Magnet Poles | 24/28 |
| No load Current | 1.7 A |
| Motor Efficiency | 93.57 % |
| Weight (Incl. Wire) | 408 grams |
| Voltage Range | 48V SMPS |
| Peak Current | 25 A |

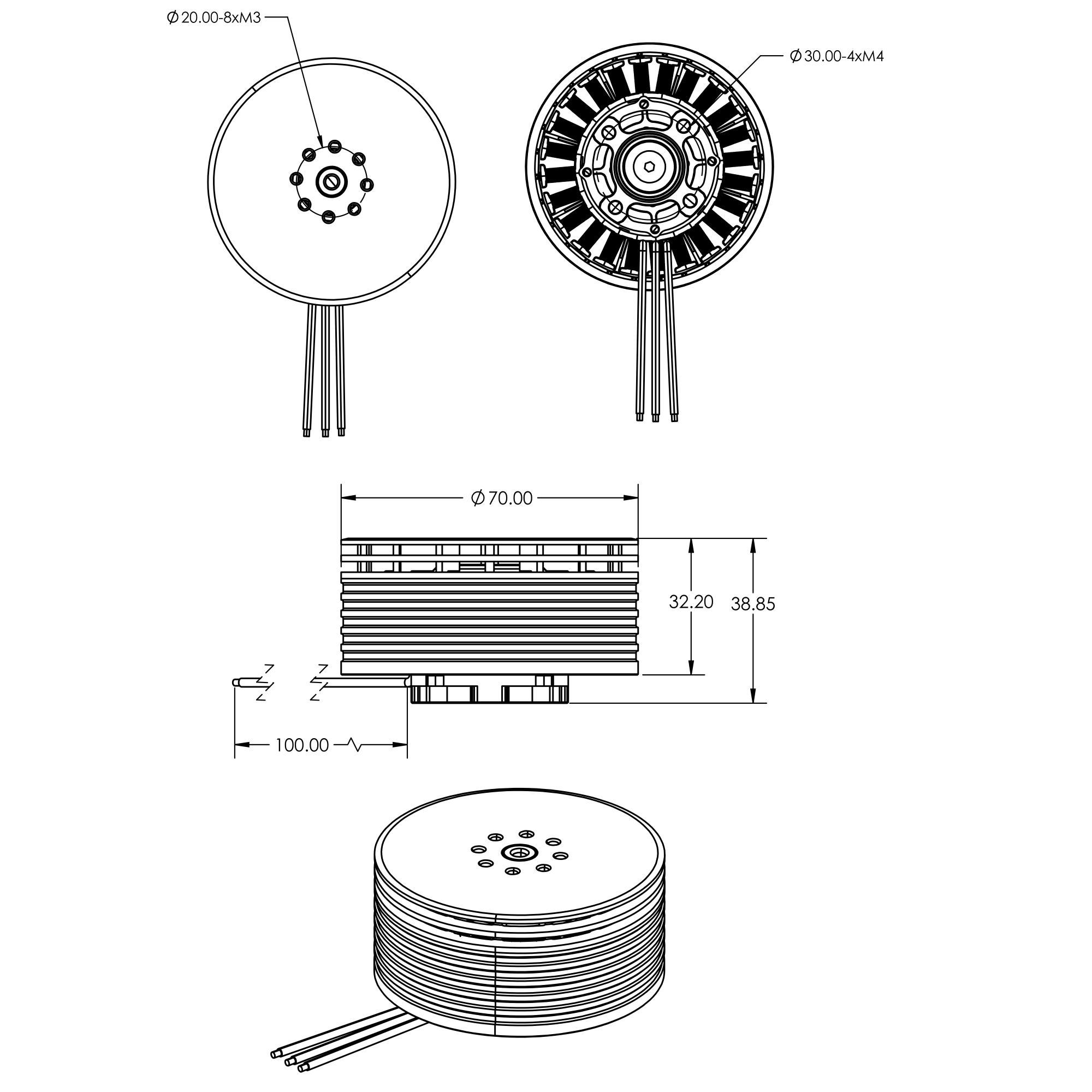

| Motor Size | Ø70 mm x 38.85 mm |
| Stator Size | Ø62 mm x 18 mm |
| Cable Length | 100 mm |
| Cable Type | 14 AWG |
| Magnet Temperature Rating | 150 ℃ |
| Shaft Diameter | Ø8 mm |
| Winding Material | 100% Copper |
| IP Rating | Ip34 |
| Maximum Operating Temperature | 60 ℃ |
| Recommended Propeller | RD 2480 |
| Production Status | Production |
