RD S-Series ESC 25A

RD S-Series ESC 25A

RD S-Series ESC 25A

6S-25A

₹3,214

Per unit, for orders of up to 9 units, excl. GST. Discounts apply to volume orders: for 10 units or more, contact [email protected]. See the full price list

Price on requestContact [email protected] for a quote. Discounts apply to volume orders.

Pricing will be announced at launch. Contact [email protected] for availability and early orders.

In stock

Check motor compatibility before ordering. Please confirm this ESC is qualified for your motor in our list of qualified FOC combinations.

FOC ESCs must be tuned and certified with your motor and load (propeller) at our factory before use. They cannot be tuned in the field.

For any doubts, contact our sales team at [email protected] or +91 91511 18036.

Product Description

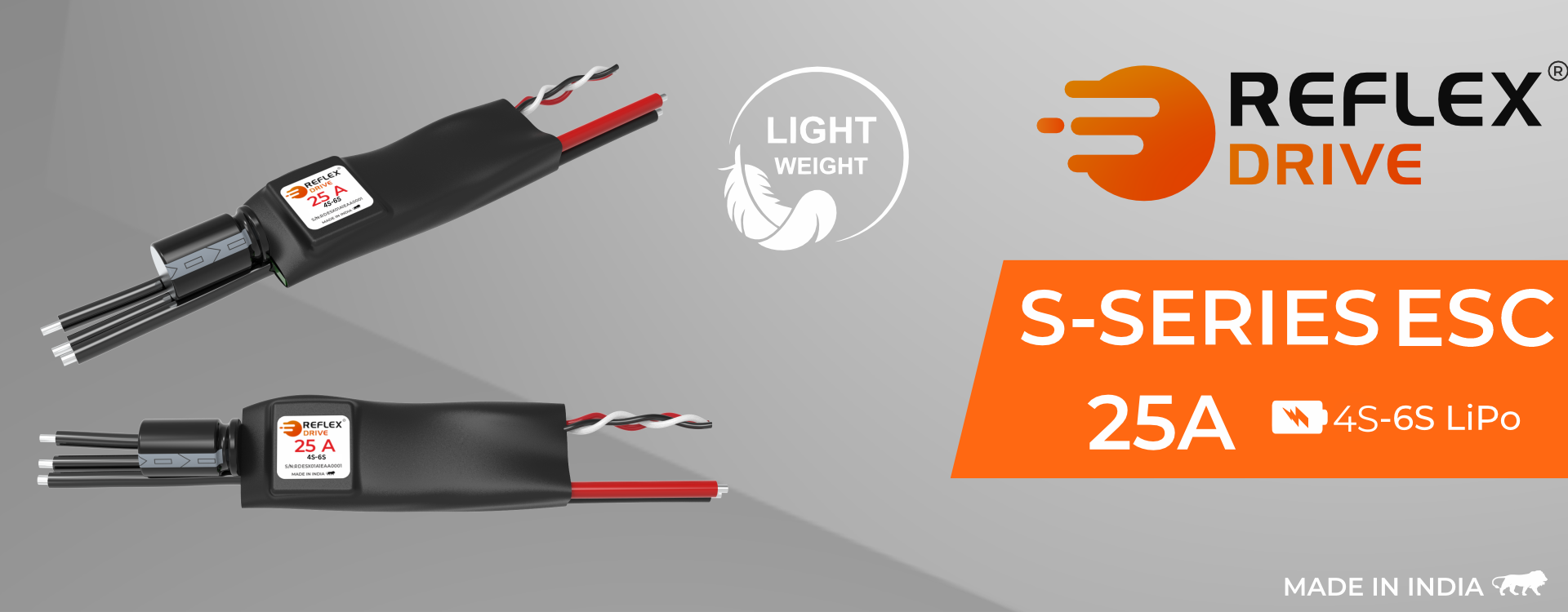

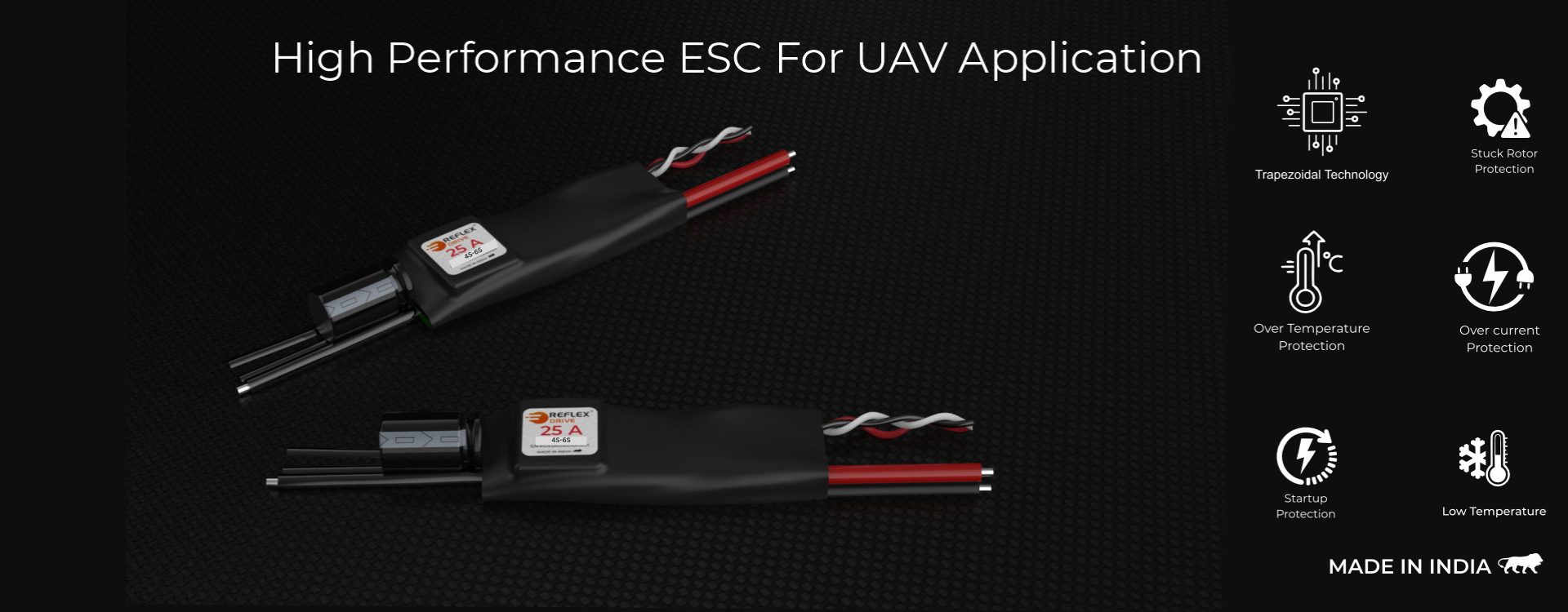

RD S-Series 25A 6S ESC is an advanced Electronic Speed Controller (ESC) designed for high-performance applications. Made in India, this model significantly enhances thermal and current handling capabilities.



Where the S-Series 25A fits

The S-Series ESC 25A is the smallest controller in the Reflex Drive range. It is made for 2S to 6S LiPo packs, with a continuous rating of 20 A (tested in 12.5 m/s airflow at 30 °C) and no BEC. It is the recommended match for the RD4006 415KV, so it suits small multirotors, light camera platforms, student builds and prototype airframes where weight and cost are tight.

How it compares

Among our trapezoidal ESCs, the S-Series is the entry model. The RD D-Pro V3 ESC 60A handles 6S motors with high peak current, while the RD V-Series ESC 60A and RD T-Pro V3 ESC 75A are for mid-size systems. For larger motors in our UAV motors range, look at the A-Series FOC ESCs. Use cooling airflow when you push the controller towards its rating. Contact [email protected] for help choosing a motor, ESC and propeller combination.

Specifications

Input Voltage 2S (7.4V) – 6S (25.2V) –
Continuous Current 20 A (tested in 12.5 m/s continuous airflow and 30 ℃ ambient temperature) Tested in 12.5 m/s continuous airflow and 30℃ ambient Temperature
BEC Output Voltage No –
Operating Ambient Temperature (-20℃) ~(+ 65℃) –
Standby Current (24V) ≤ 40mA  –
Throttle Range (Can be Calibrated) 1100us ~ 1900us  Calibration Enable
Throttle Refresh Frequency 50Hz  –
Input Signal PWM and DShot300 –
Over-temperature Protection No –
Overcurrent Protection No –
Stuck Rotor Protection  Yes –
Waterproof Rating No –
Start-up Protection Yes –
Invert Motor Spin  Yes Configured using RD GUI
Telemetry No –
Braking Feature No –
Maximum Peak Current 25 A (180 s) Tested in 12.5 m/s continuous airflow and 30℃ ambient temperature
Maximum Peak Power 660 W (180 s) Tested in 12.5 m/s continuous airflow and 30℃ ambient temperature
Maximum Continuous Power 440 W Tested in 12.5 m/s continuous airflow and 30℃ ambient temperature
Input cables Silicone wires, red/black, 16AWG, 10 cm –
Output cables Silicone wires, black (x3), 16AWG, 12 cm –
Signal wires Black, white (2P), 2P-JR connector, 25 cm –
Enclosure None (heat shrink) –
Dimensions 71 x 17 x 14 mm (±1 mm)
Weight 26g
Control Method Trapezoidal –
Firmware Custom Reflex Drive trapezoidal firmware –
Recommended Motors RD4006 –


Engineering Data

ESC RD S-Series ESC 25A
Motor RDMI 5008 (340KV)
Propeller RD 1760
Supply 24 V SMPS
Throttle % Servo (µs) Time (s) Voltage (V) RPM Current (A) Power (W) ESC Temp (°C)
0.0 1050 0 24.05 0 0 0.0 30.2
5.6 1100 5 24.05 739 0.22 5.3 30.2
11.1 1150 10 24.03 1086 0.44 10.6 30.3
16.7 1200 15 24 1427 0.86 20.6 30.4
22.2 1250 20 23.96 1756 1.4 33.5 30.6
27.8 1300 25 23.91 2065 2.1 50.2 30.6
33.3 1350 30 23.82 2338 3.11 74.1 30.7
38.9 1400 35 23.75 2618 4.29 101.9 30.8
44.4 1450 40 23.66 2887 5.7 134.9 30.9
50.0 1500 45 23.48 3139 7.39 173.5 30.6
55.6 1550 50 23.36 3356 9.15 213.7 31.0
61.1 1600 55 23.24 3562 11.12 258.4 32.0
66.7 1650 60 23.11 3744 13.15 303.9 34.3
72.2 1700 65 22.95 3926 15.35 352.3 35.8
77.8 1750 70 22.76 4103 17.76 404.2 39.1
83.3 1800 75 22.55 4278 20.22 456.0 40.6
88.9 1850 80 22.36 4425 22.88 511.6 43.4
94.4 1900 85 22.1 4572 25.72 568.4 46.6
100.0 1950 90 n/a 4761 30.17 n/a 50.3

Maximum ESC temperature measured after turning off the power supply: 65.3 °C.

Power is calculated as voltage × current. Voltage and power at 100% throttle are not listed because the original test sheet carries an unreliable voltage reading for that row; rated peak power is 660 W (180 s).

2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
