Reflex Drive’s D-Pro V3 trapezoidal electronic speed controllers (ESC) with Current Sensing drive for BLDC motors – and are Designed and Manufactured in India.
The trapezoidal ESCs are designed for performance and reliability, with customisable firmware and advanced safety features that make it suited to drone enthusiasts and commercial drone operators alike.

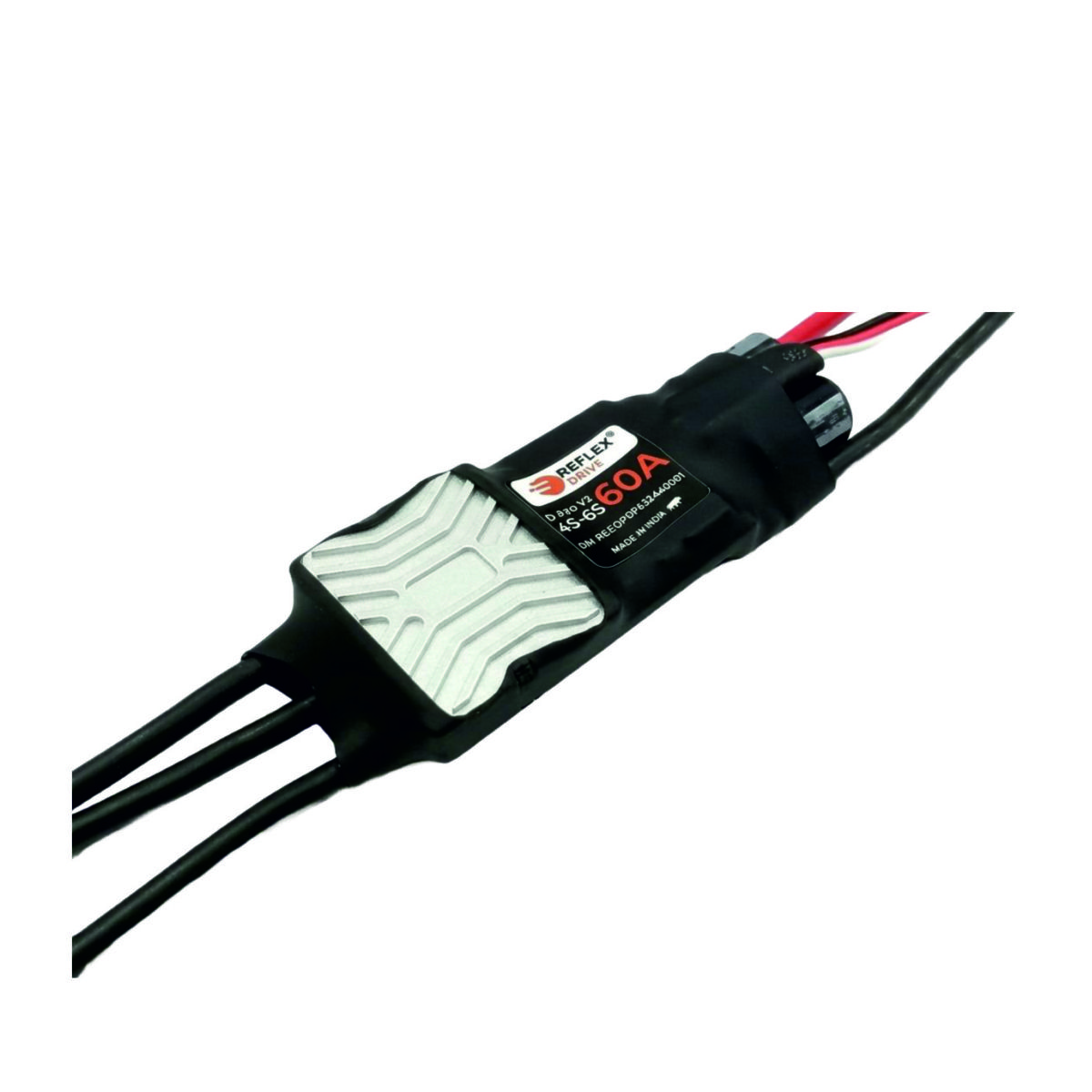

The D-Pro V3 ESC 60A is a trapezoidal controller built for 4S to 6S LiPo. The datasheet lists 25 A continuous current with airflow of 6 m/s and a 60 A peak for 10 seconds, and it has no BEC. It is the recommended ESC for the RD5008 340KV, the RD3113 900KV and the RD2810 1250KV, which are high-KV motors that draw big peak current for short bursts.
Among our trapezoidal ESCs, the D-Pro V3 is the compact option sized for 4S to 6S systems and small, fast airframes. The RD S-Series ESC 25A is a smaller 2S to 6S controller for lighter motors, and the RD V-Series ESC 60A offers a higher continuous current on a wider 4S to 12S range. For a first FOC controller, see our FOC ESCs. Cooling is important because the continuous rating depends on airflow. Contact [email protected] for help choosing a motor, ESC and propeller combination.
| S. No. | Parameter | Value | Remarks |
| 1. | Input Voltage | 4S (14.8 V) – 6S (25.2 V) | – |
| 2. | Continuous Current | 25A (Air flow > 6.5 m/s) | – |
| 3. | Peak Current | 60A (10 s) | – |
| 4. | BEC Output Voltage | No | – |
| 5. | Operating Ambient Temperature | (-20 ℃) ~ (+65 ℃) | – |
| 6. | Operating Humidity | N/A | – |
| 7. | Storage Temperature | N/A | – |
| 8. | Storage Humidity | N/A | – |
| 9. | Standby Current | ≤ 25 mA (24 V) | – |
| 10. | Throttle Range (Can be calibrated) | 1050us ~ 1950us | – |
| 11. | Throttle Refresh Frequency | 50Hz | – |
| 12. | Input Signal | PWM and DShot300 | – |
| 13. | Over-temperature / Overcurrent / Stuck Rotor / Start-up Protection | Yes | – |
| 14. | Waterproof Rating | No | – |
| 15. | Invert Motor Spin | Yes | – |
| 16. | Telemetry | KISS telemetry | – |
| 17. | Braking Feature | No | – |
| 18. | Maximum Continuous Power | 600W | – |
| 19. | Maximum Temperature | 90°C | – |
| 20. | Dimensions | 70 x 30 x 14 mm | – |
| 21. | Weight | 40g (approx.) | – |
| 22. | Control Method | Trapezoidal | – |
| 23. | Firmware | Custom Reflex Drive trapezoidal firmware | – |
| 24. | Compliance | IPC Class 2 | – |
| 25. | Certification | JSS 55555 (mechanical shock, random vibration, resonance search and sinusoidal vibration tests) | – |
| 26. | Recommended Motors | RD5008, RD3113, RD2810 | – |
| ESC | RD D-Pro V3 ESC 6S, 60A |
| Motor | RD 5008 black close top (340KV) |
| Propeller | RD 1760 |
| Supply | 24 V SMPS |
| Throttle % | Servo (µs) | Voltage (V) | Thrust (g) | Current (A) | RPM | Power (W) | ESC Temp (°C) |
|---|---|---|---|---|---|---|---|
| 0.0 | 1050 | 24.07 | 0.06 | 0 | 0 | 0 | 30.4 |
| 5.6 | 1100 | 24.05 | 66 | 0.14 | 619 | 3.5 | 30.7 |
| 11.1 | 1150 | 24.03 | 130 | 0.3 | 959 | 7.1 | 31.5 |
| 16.7 | 1200 | 24.01 | 235 | 0.62 | 1278 | 15.1 | 32.4 |
| 22.2 | 1250 | 23.98 | 361 | 1.08 | 1662 | 26 | 34.1 |
| 27.8 | 1300 | 23.94 | 499 | 1.73 | 1998 | 41.5 | 35.9 |
| 33.3 | 1350 | 23.86 | 670 | 2.64 | 2325 | 63 | 38.3 |
| 38.9 | 1400 | 23.7 | 827 | 3.68 | 2605 | 85 | 41.4 |
| 44.4 | 1450 | 23.68 | 1005 | 4.97 | 2886 | 117 | 45.0 |
| 50.0 | 1500 | 23.52 | 1192 | 6.39 | 3143 | 150 | 48.9 |
| 55.6 | 1550 | 23.41 | 1377 | 7.95 | 3326 | 186 | 51.7 |
| 61.1 | 1600 | 23.31 | 1592 | 9.69 | 3528 | 226 | 55.3 |
| 66.7 | 1650 | 23.17 | 1775 | 11.75 | 3815 | 272 | 60.1 |
| 72.2 | 1700 | 23.01 | 1984 | 14.03 | 4019 | 323 | 62.7 |
| 77.8 | 1750 | 22.85 | 2161 | 16.3 | 4205 | 372 | 67.2 |
| 83.3 | 1800 | 22.69 | 2330 | 18.82 | 4368 | 429 | 71.1 |
| 88.9 | 1850 | 22.53 | 2496 | 21.24 | 4544 | 478 | 75.9 |
| 94.4 | 1900 | 22.28 | 2686 | 24.07 | 4672 | 536 | 78.7 |
| 100.0 | 1950 | 21.96 | 2968 | 29.11 | 4896 | 639 | 82.2 |
Maximum ESC temperature measured after turning off the power supply: 87.4 °C.
| ESC | RD D-Pro V3 ESC 6S, 60A |
| Motor | RD 4006 black close top (415KV) |
| Propeller | RD 1552 |
| Supply | 24 V SMPS |
| Throttle % | Servo (µs) | Voltage (V) | Thrust (g) | Current (A) | RPM | Power (W) | ESC Temp (°C) |
|---|---|---|---|---|---|---|---|
| 0.0 | 1050 | 24.05 | 0.06 | 0 | 0 | 0 | 30.0 |
| 5.6 | 1100 | 24.05 | 25 | 0.1 | 832 | 2.5 | 30.1 |
| 11.1 | 1150 | 24.05 | 62 | 0.18 | 1274 | 4.5 | 30.5 |
| 16.7 | 1200 | 24.03 | 121 | 0.35 | 1723 | 8.4 | 31.4 |
| 22.2 | 1250 | 24.01 | 191 | 0.64 | 2135 | 15.4 | 32.4 |
| 27.8 | 1300 | 24 | 279 | 0.99 | 2551 | 23.7 | 33.7 |
| 33.3 | 1350 | 23.94 | 367 | 1.4 | 2920 | 33.7 | 35.2 |
| 38.9 | 1400 | 23.93 | 462 | 1.96 | 3276 | 47 | 37.0 |
| 44.4 | 1450 | 23.87 | 563 | 2.57 | 3600 | 61.6 | 38.8 |
| 50.0 | 1500 | 23.84 | 660 | 3.27 | 3903 | 78 | 40.8 |
| 55.6 | 1550 | 23.77 | 764 | 4.1 | 4192 | 97.4 | 42.8 |
| 61.1 | 1600 | 23.7 | 878 | 5.04 | 4482 | 119.6 | 45.7 |
| 66.7 | 1650 | 23.63 | 983 | 6.03 | 4748 | 142.8 | 47.4 |
| 72.2 | 1700 | 23.52 | 1083 | 7.23 | 5002 | 170 | 49.4 |
| 77.8 | 1750 | 23.43 | 1188 | 8.3 | 5223 | 198 | 51.5 |
| 83.3 | 1800 | 23.36 | 1297 | 9.63 | 5438 | 224.9 | 53.6 |
| 88.9 | 1850 | 23.27 | 1394 | 11.07 | 5645 | 257 | 55.6 |
| 94.4 | 1900 | 23.18 | 1482 | 12.45 | 5833 | 288.7 | 57.5 |
| 100.0 | 1950 | 23.02 | 1608 | 14.72 | 6102 | 339.1 | 59.7 |
Maximum ESC temperature measured after turning off the power supply: 61.9 °C.
2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
