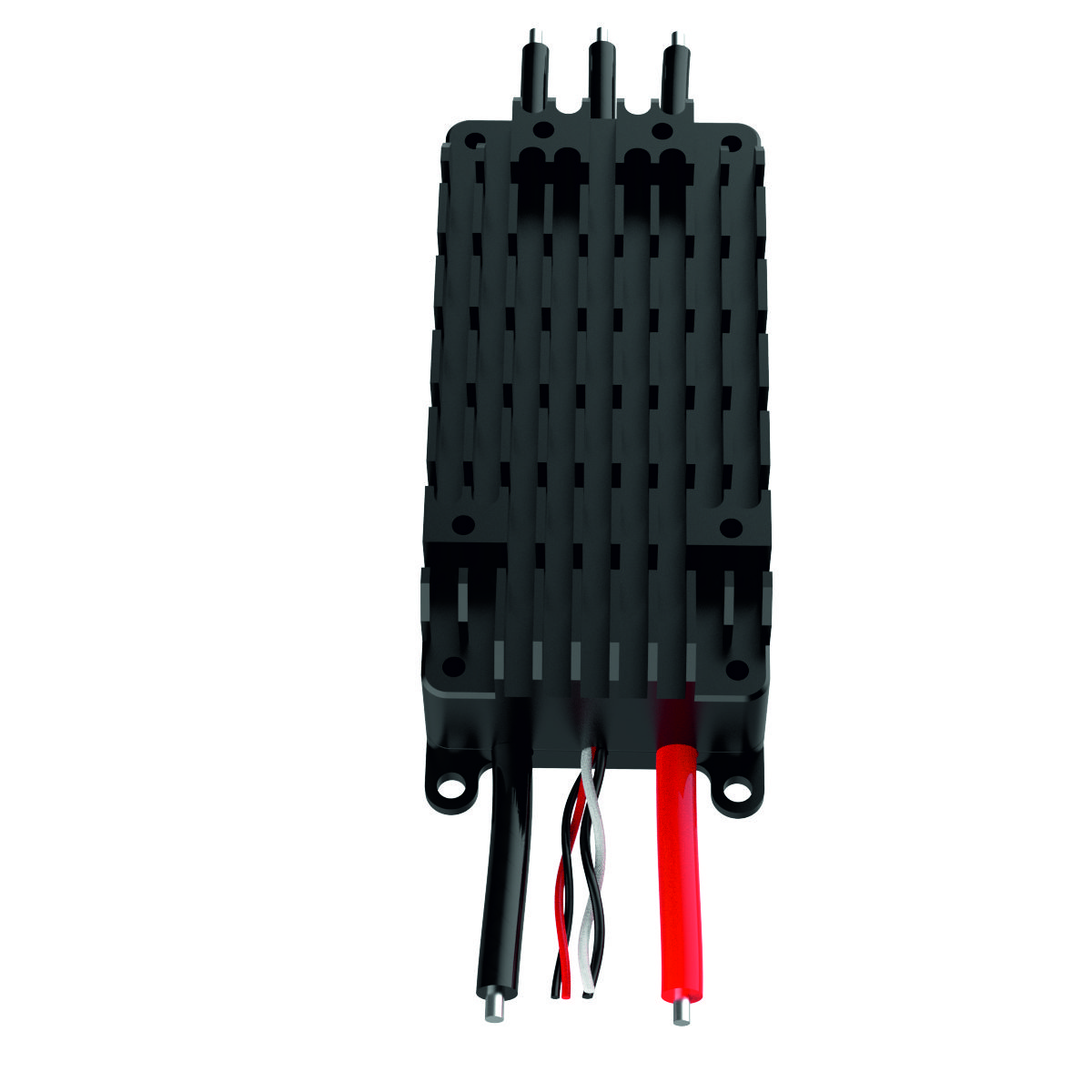

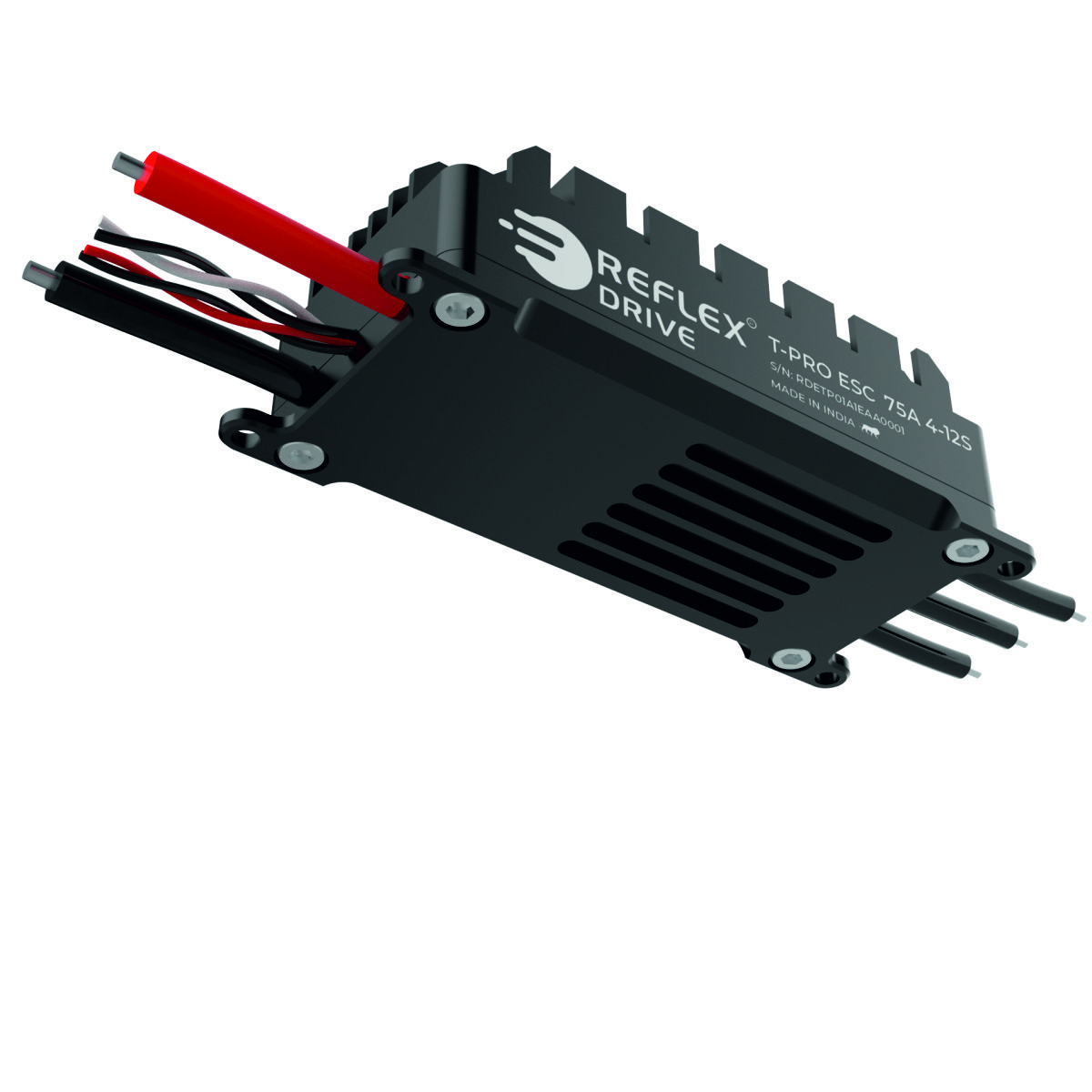

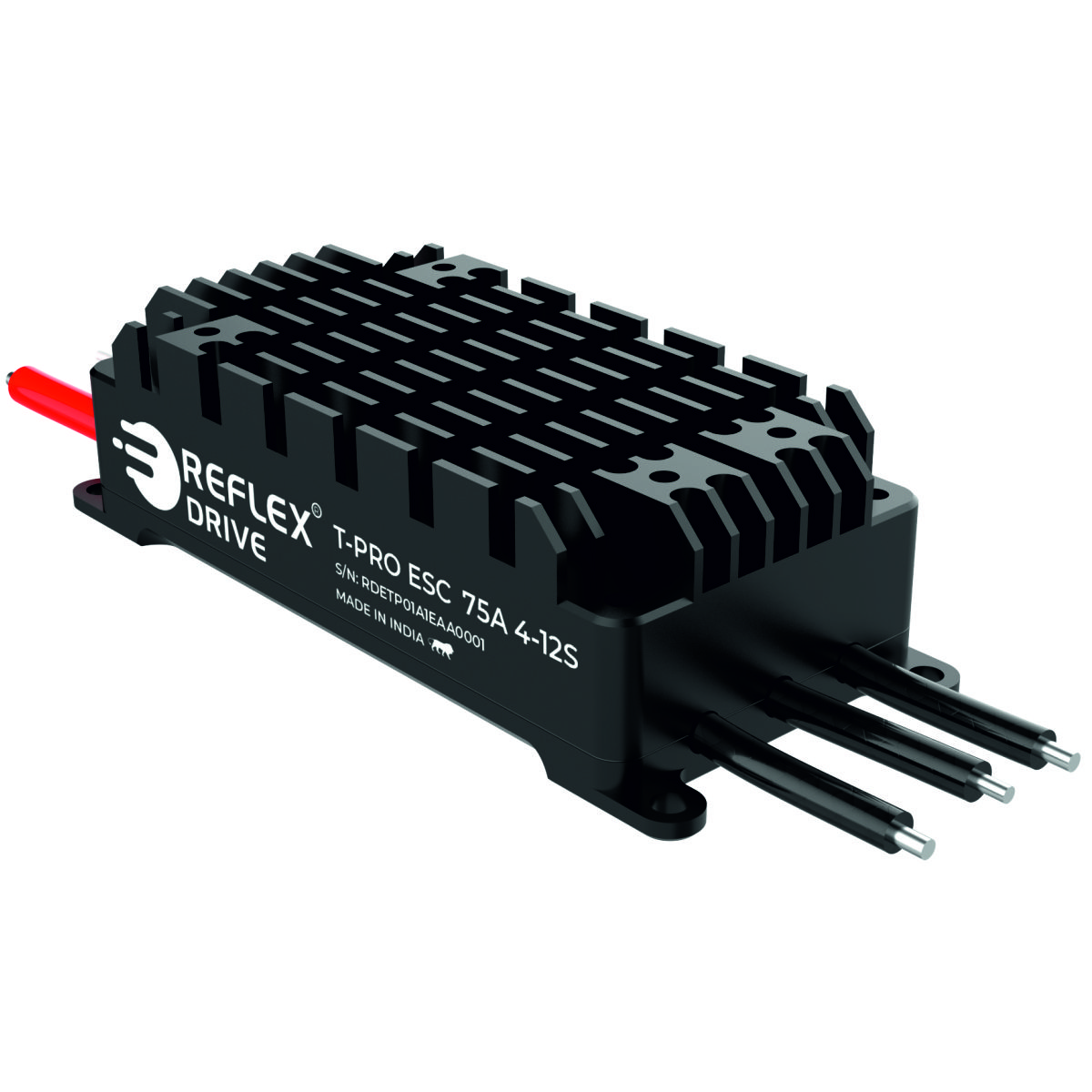

The RD T-Pro V3 4S-12S 75A ESC is a high-performance electronic speed controller built for maximum reliability in demanding environments. Designed to support a versatile input range and deliver stable current output, it handles sustained high-load operations with ease.
Integrated safety features like over-temperature, overcurrent, and stalled rotor protection ensure consistent performance even under extreme stress. Encased in a sealed, IP56-rated aluminum enclosure, the T-Pro V3 75A combines rugged durability with advanced thermal management. Optimized for PWM control and featuring integrated telemetry for real-time monitoring, it is a dependable solution for precision motor control in industrial and heavy-lift UAV applications.
The T-Pro V3 ESC 75A is a trapezoidal controller for 4S to 12S LiPo packs. It is rated for 65 A continuous current with active cooling and 75 A peak for 30 seconds, with no BEC. Input is servo PWM. It is a good fit for mid-size multirotors, and it appears among the recommended ESCs for the RD6218 160KV.
In our trapezoidal ESCs, the T-Pro V3 75A sits between the RD V-Series ESC 60A (60 A peak) and the RD Q-Pro V2 ESC 120A, which peaks at 120 A.If you need telemetry over CAN and FOC control, see the A-Series models in our UAV ESCs. Contact [email protected] for help choosing a motor, ESC and propeller combination.
| S. No. | Parameter | Value | Remarks |
| 1. | Input Voltage | 4S (14.8V) – 12S (52.2V) | – |
| 2. | Continuous Current | 65 AWith Active Cooling) | Tested at 12.5 m/s continuous airflow and 28 ℃ ambient temperature |
| 3. | Peak Current (30 s) | 75 A (30 sec)With Active Cooling) | Tested at 16.2 m/s continuous airflow and 28 ℃ ambient temperature |
| 4. | BEC Output Voltage | No | – |
| 5. | Operating Ambient Temperature | (-20℃) ~(+ 65℃) | – |
| 7. | Standby Current (24V) | ≤ 25mA | – |
| 8. | Throttle Range (Can be calibrated) | 1050us ~ 1950us | |
| 9. | Throttle Refresh Frequency | 50Hz | – |
| 10. | Input Signal | PWM only | – |
| 11. | Over-temperature Protection | Yes | Limit at 100℃, reduced to 50% throttle |
| 12. | Overcurrent Protection | Yes | – |
| 13. | Stuck Rotor Protection | Yes | – |
| 14. | Waterproof Rating | IP56 | – |
| 15. | Start-up Protection | Yes | – |
| 16. | Invert Motor Spin | Yes | – |
| 17. | Telemetry | Yes | – |
| 18. | Braking Feature | No | – |
| Maximum Peak Power | 3750 W (30 s) | Tested in 16.2 m/s continuous airflow and 28℃ ambient temperature | |
| Maximum Continuous Power | 3250 W | Tested in 12.5 m/s continuous airflow and 28℃ ambient temperature | |
| Input cables | 12AWG, 10 cm | – | |
| Output cables (x3) | 14AWG, 12 cm | – | |
| Signal wires | Black, white (2P), 2P-JR, 22 cm | – | |
| Telemetry wires | Black, red (2P), 2P-JR, 25 cm | – | |
| Enclosure | Aluminium alloy | – |
| Dimensions | 79 x 38 x 24 mm | ||
| Weight (Incl. ESC with wire) | 135g | ||
| Control Method | Trapezoidal | – | |
| Firmware | Custom Reflex Drive trapezoidal firmware | – | |
| Recommended Motors | RD6218 | – |
| ESC | RD T-Pro V3 75A 12S ESC |
| Motor | 6218 9K Series (160Kv) |
| Propeller | 2480 Syfero |
| Supply | 48 V SMPS |
| Throttle % | Servo (µs) | Time (s) | Voltage (V) | RPM | Current (A) | Power (W) | ESC Temp (°C) |
|---|---|---|---|---|---|---|---|
| 0.0 | 1050 | 0 | 48.03 | 0 | 0 | 0 | 29.7 |
| 5.6 | 1100 | 5 | 48.03 | 556 | 0 | 0 | 29.8 |
| 22.2 | 1250 | 20 | 47.98 | 1555 | 1.41 | 71.1 | 30.0 |
| 27.8 | 1300 | 25 | 47.93 | 1887 | 2.52 | 120 | 30.4 |
| 33.3 | 1350 | 30 | 47.84 | 2176 | 3.76 | 180 | 30.8 |
| 38.9 | 1400 | 35 | 47.73 | 2485 | 5.51 | 263 | 31.4 |
| 44.4 | 1450 | 40 | 47.61 | 2749 | 7.54 | 353 | 32.2 |
| 50.0 | 1500 | 45 | 47.52 | 3023 | 9.83 | 461 | 32.9 |
| 55.6 | 1550 | 50 | 47.38 | 3275 | 12.59 | 597 | 34.1 |
| 61.1 | 1600 | 55 | 47.22 | 3518 | 15.38 | 726 | 35.1 |
| 66.7 | 1650 | 60 | 46.99 | 3742 | 18.64 | 875 | 36.4 |
| 72.2 | 1700 | 65 | 46.78 | 3938 | 22.42 | 1052 | 37.4 |
| 77.8 | 1750 | 70 | 46.58 | 4154 | 26.05 | 1203 | 38.6 |
| 83.3 | 1800 | 75 | 46.32 | 4344 | 30.68 | 1427 | 40.3 |
| 88.9 | 1850 | 80 | 45.98 | 4521 | 35.5 | 1624 | 41.7 |
| 94.4 | 1900 | 85 | 45.65 | 4681 | 40.19 | 1852 | 43.5 |
| 100.0 | 1950 | 90 | 45.1 | 4982 | 50.38 | 2281 | 45.1 |
Maximum ESC temperature measured after turning off the power supply: 50.9 °C.
2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
