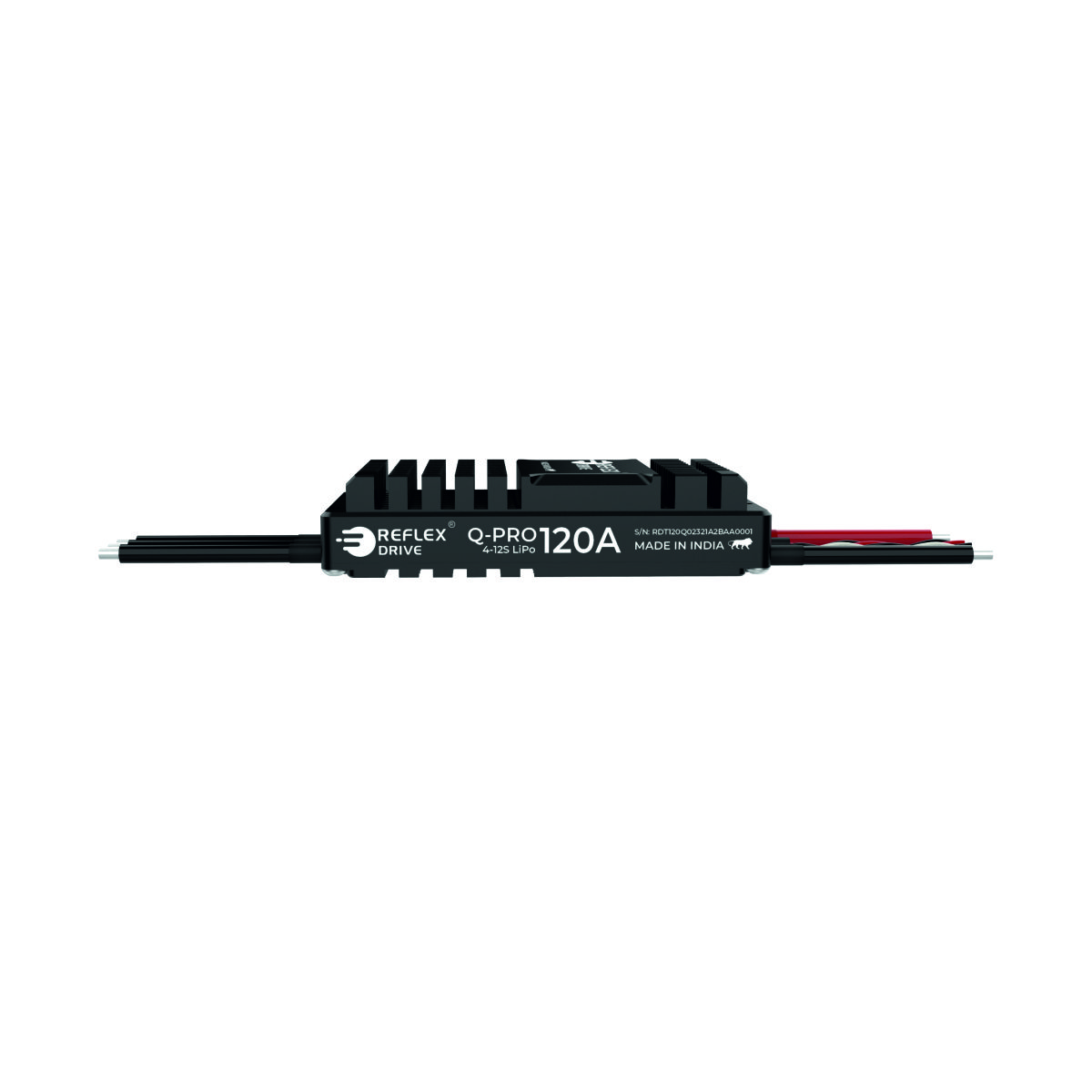

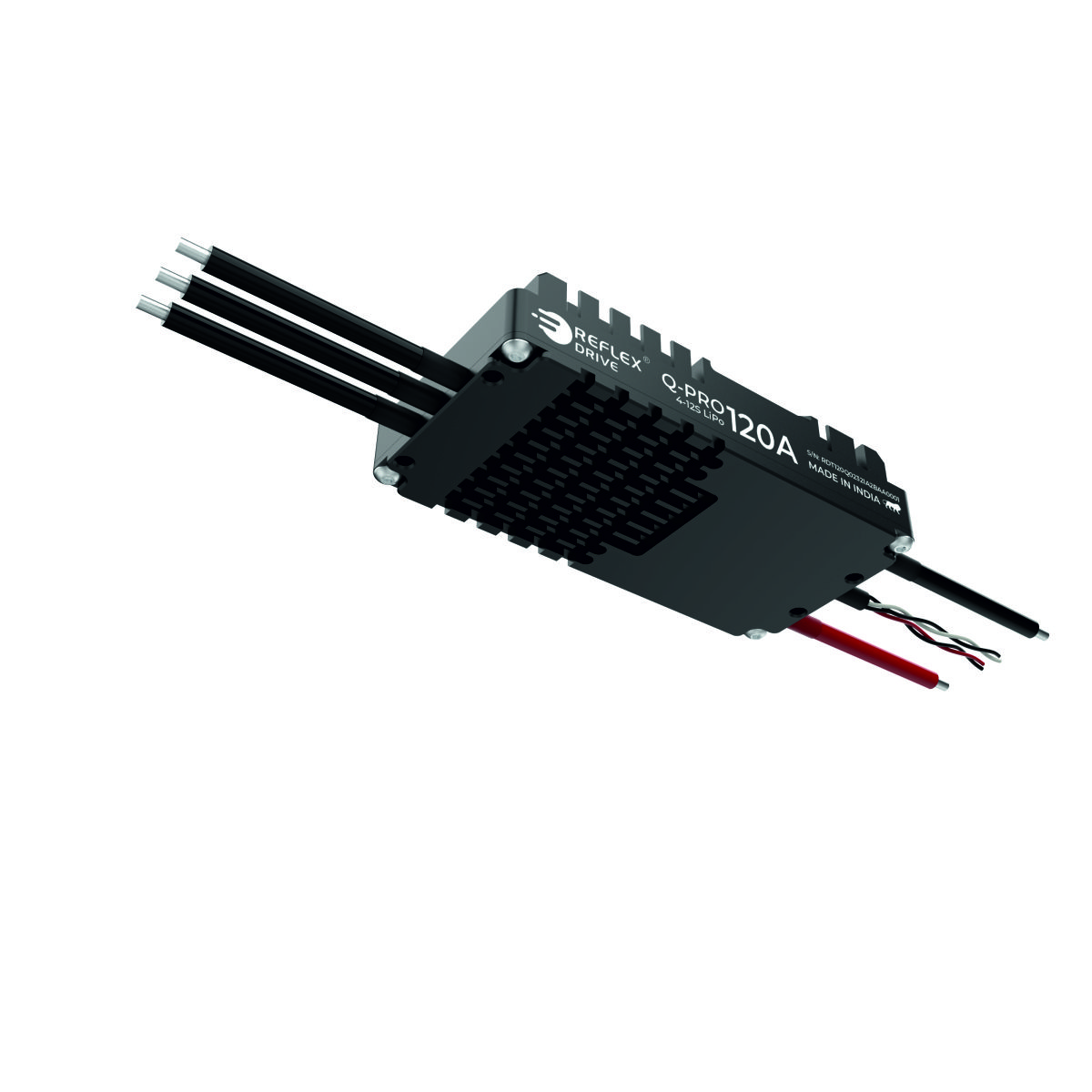

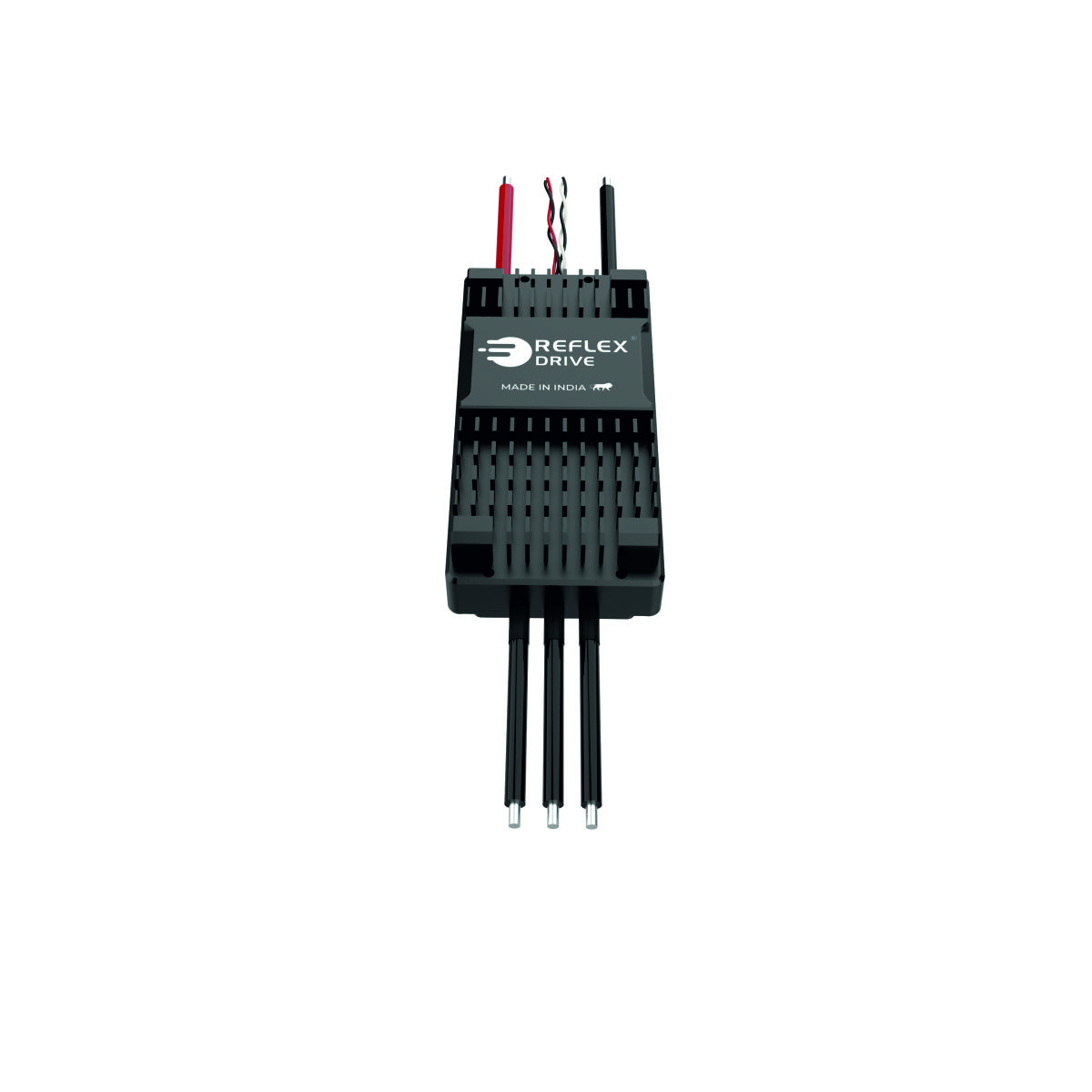

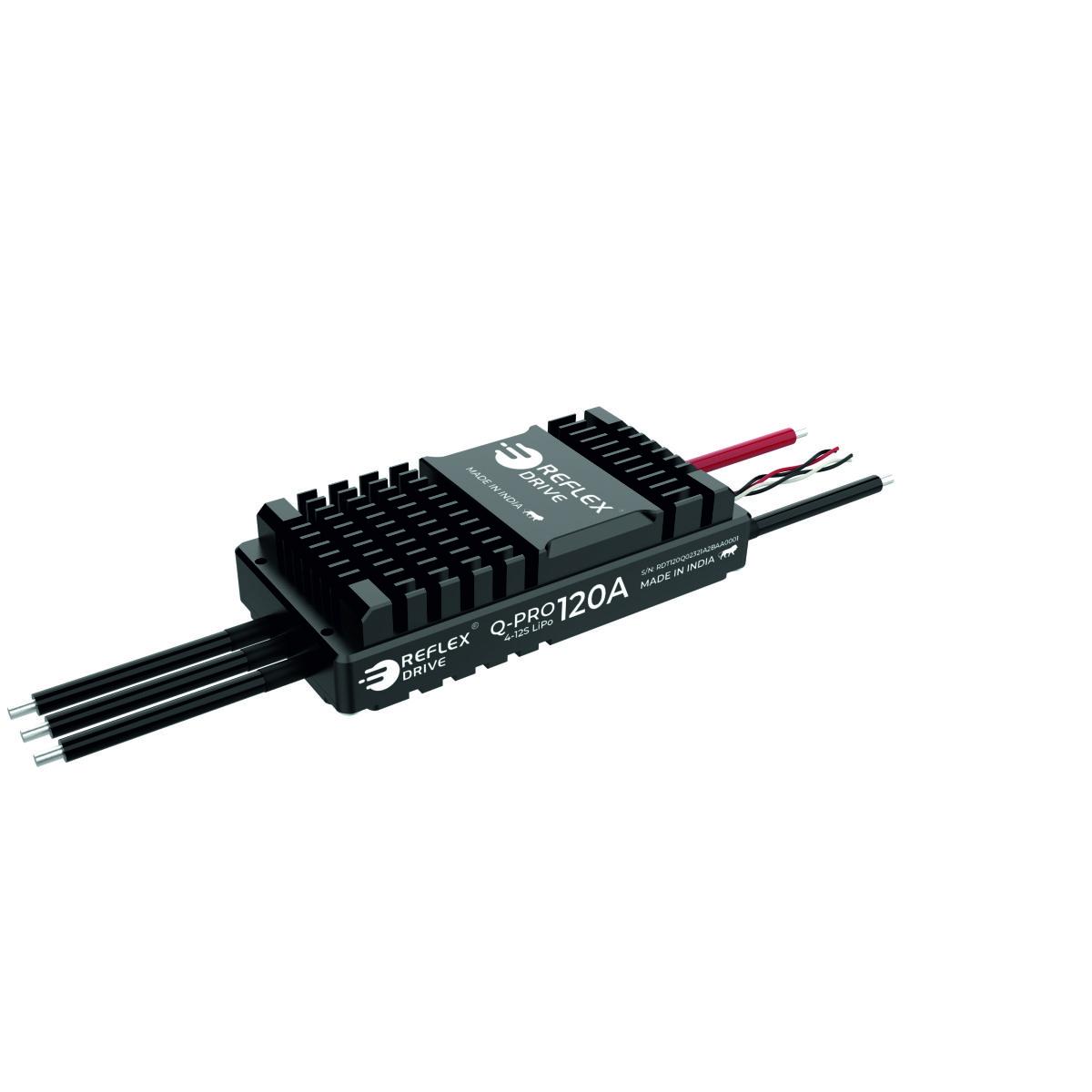

The RD Q-Pro V2 ESC 120A is an electronic speed controller for demanding applications. Made in India, this upgraded Q-Series model features a heavy copper PCB design for thermal efficiency and current handling.
Encased in an aluminium housing, it delivers excellent heat dissipation while providing protection against harsh operating environments. Suited to motor control applications that need precision and durability.
The Q-Pro V2 ESC 120A is a trapezoidal controller for 4S to 12S LiPo packs. The datasheet lists 90 A continuous current, and a 120 A peak for 30 seconds. There is no BEC. It is a recommended partner for the RD8015 115KV and suits mid-size and heavy-lift multirotors that need strong sustained current from a simple, proven drive.
Among our trapezoidal ESCs, the Q-Pro V2 120A has the highest current rating; the RD T-Pro V3 ESC 75A and the RD V-Series ESC 60A are rated lower and fit smaller systems. Compared with the A-Series FOC ESCs, trapezoidal drives are simpler, while FOC drives such as the RD A-Series ESC 120A add smoother current control and CAN telemetry. Choose the Q-Pro if you want high continuous current and your flight controller already supports PWM or DShot. Active cooling matters for the rated figures. Contact [email protected] for help choosing a motor, ESC and propeller combination.
| S No. | Item | Requirement | Remark |
|---|---|---|---|
| 1 | Input Voltage | 4S (14.8V) – 12S (52.2V) | – |
| 2 | Continuous Current | 90 A | Tested in 12.5 m/s continuous airflow and 28℃ ambient temperature |
| 3 | Peak Current | 120 A (30 s) | Tested in 16.2 m/s continuous airflow and 28 ℃ ambient temperature |
| 4 | BEC Output Voltage | No |
|
| 5 | Operating Ambient Temperature (℃) | (-20℃) ~(+ 65℃) | ±5℃ |
| 6 | Operating Humidity (%) | 15% ~ 85%RH | ±5%RH |
| 7 | Storage Temperature (℃) | (-40℃)~(+65℃) | ±5℃ |
| 8 | Storage Humidity (%) | 15%~85%RH | ±5RH |
| 9 | Standby Current | ≤ 30mA | – |
| 10 | Throttle Range (Can be Calibrated) | 1050us ~ 1950us | – |
| 11 | Throttle Refresh Frequency | 50Hz | – |
| 12 | Input Signal | Servo (PWM) input, DShot150, DShot300, DShot600 | – |
| 13 | Overcurrent Protection | Yes | – |
| 14 | Over-temperature Protection | Yes | Above 100°C, throttle is reduced to 50% |
| 15 | Stuck Rotor Protection | Yes | – |
| 16 | Waterproof Rating | IP56 | – |
| Maximum Peak Power | 6000 W (30 s) | Tested in 16.2 m/s continuous airflow and 28℃ ambient temperature | |
| Maximum Continuous Power | 4432 W | Tested in 12.5 m/s continuous airflow and 28℃ ambient temperature | |
| Over Current Protection | Output current is limited to the rated peak limit of 120 A | – | |
| Low/High Voltage | Operation below 18V or above 63V may cause abnormal behavior or malfunction | – | |
| Input cables | 10AWG, 14 cm | – | |
| Output cables (x3) | 12AWG, 14 cm | – | |
| Signal wires | Black, white (2P), 25 cm | – | |
| Telemetry wires | Black, red (2P), 25 cm | – | |
| Enclosure | Aerospace-grade aluminium, black | – |

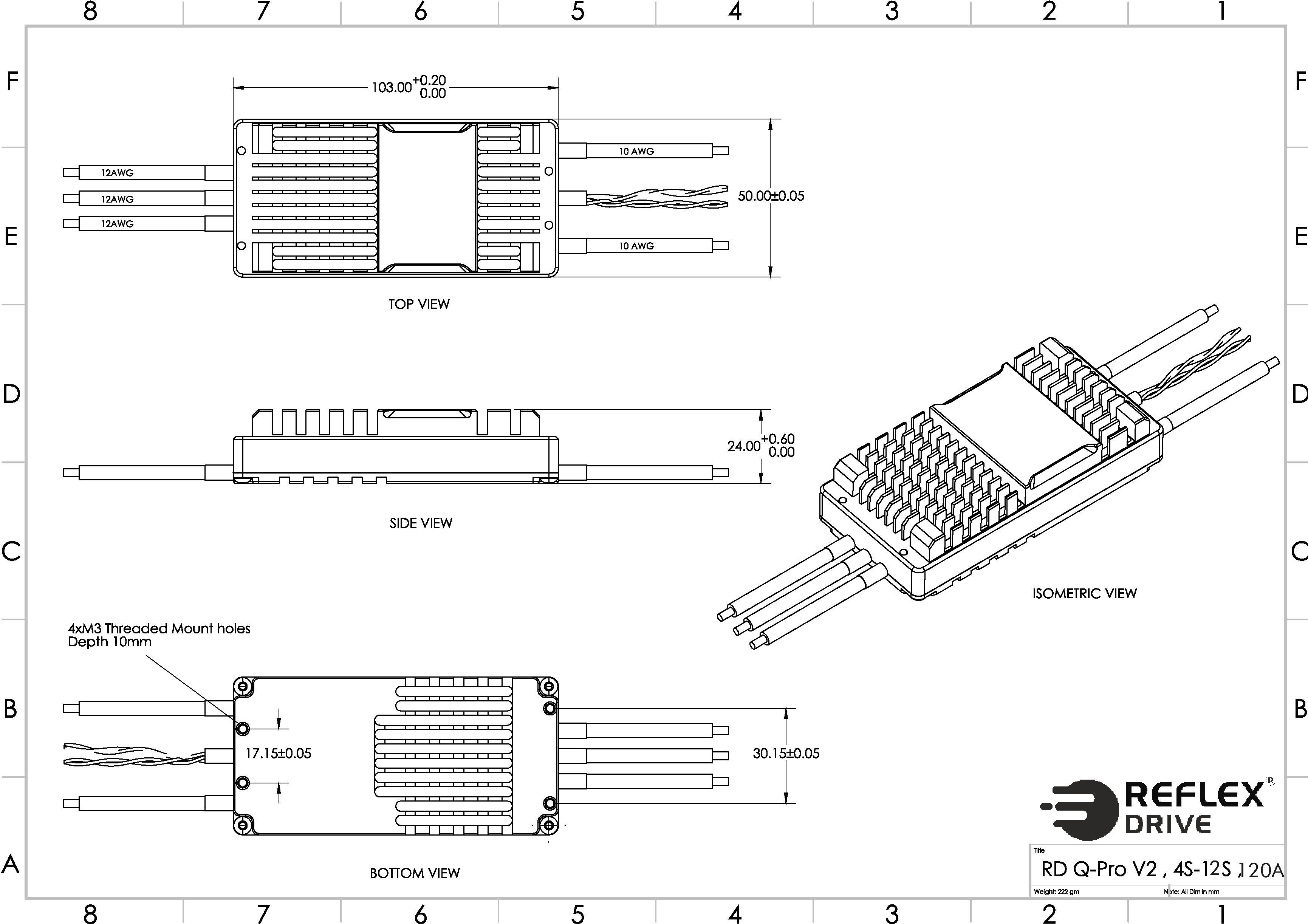

| Dimensions | 103 x 50 x 24 mm | ||
| Weight (Incl. ESC with wire) | 222g | ||
| Telemetry | Telemetry output on the 2-pin telemetry connector | – | |
| Control Method | Trapezoidal | – | |
| Firmware | Custom Reflex Drive trapezoidal firmware | – | |
| Recommended Motors | RD8015 | – |

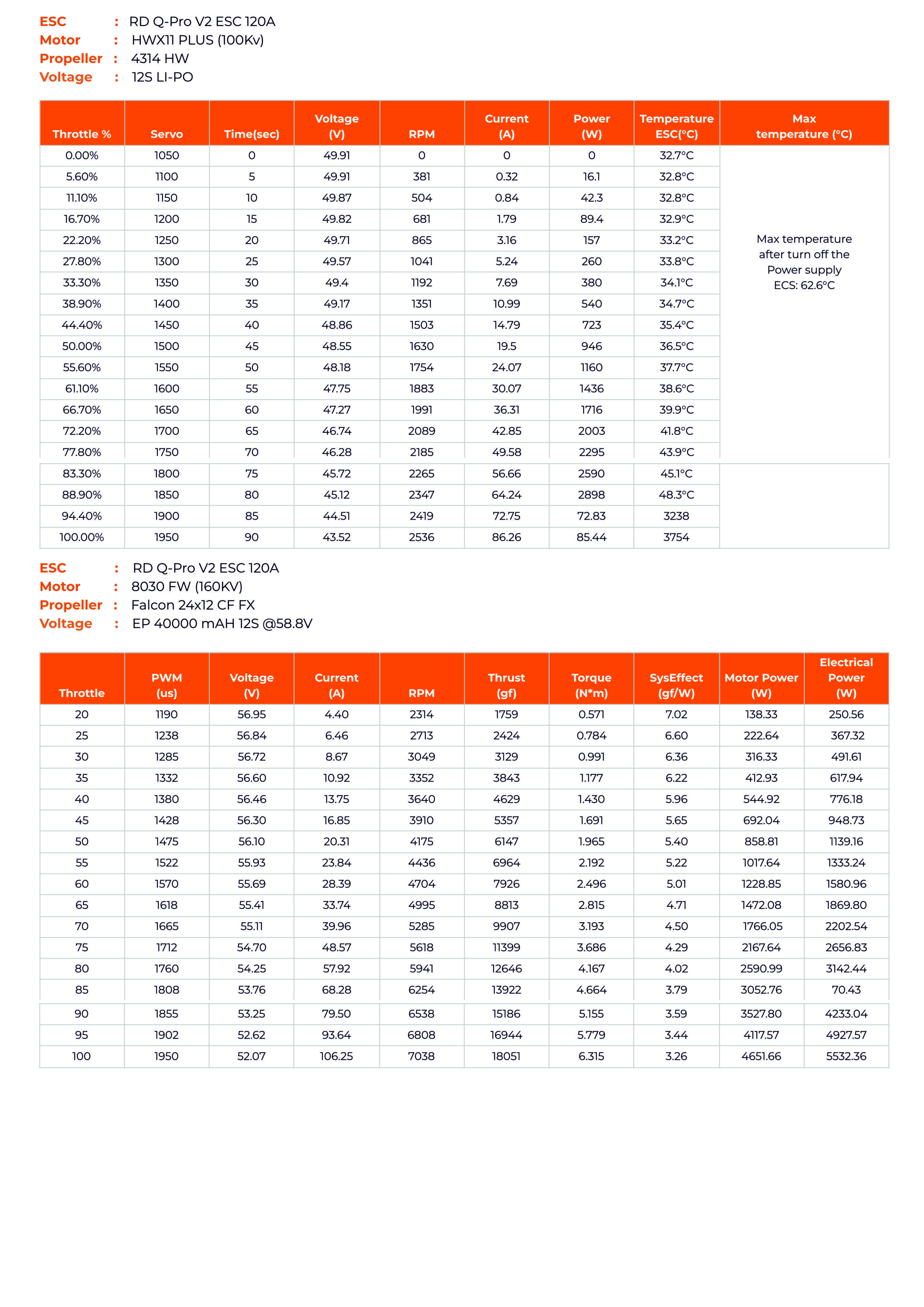

| ESC | RD Q-Pro V2 ESC 120A |
| Motor | HWX11 PLUS (100Kv) |
| Propeller | 4314 HW |
| Voltage | 12S LiPo |
| Throttle % | Servo (µs) | Time (s) | Voltage (V) | RPM | Current (A) | Power (W) | ESC Temp (°C) |
|---|---|---|---|---|---|---|---|
| 0.0 | 1050 | 0 | 49.91 | 0 | 0 | 0 | 32.7 |
| 5.6 | 1100 | 5 | 49.91 | 381 | 0.32 | 16.1 | 32.8 |
| 11.1 | 1150 | 10 | 49.87 | 504 | 0.84 | 42.3 | 32.8 |
| 16.7 | 1200 | 15 | 49.82 | 681 | 1.79 | 89.4 | 32.9 |
| 22.2 | 1250 | 20 | 49.71 | 865 | 3.16 | 157 | 33.2 |
| 27.8 | 1300 | 25 | 49.57 | 1041 | 5.24 | 260 | 33.8 |
| 33.3 | 1350 | 30 | 49.4 | 1192 | 7.69 | 380 | 34.1 |
| 38.9 | 1400 | 35 | 49.17 | 1351 | 10.99 | 540 | 34.7 |
| 44.4 | 1450 | 40 | 48.86 | 1503 | 14.79 | 723 | 35.4 |
| 50.0 | 1500 | 45 | 48.55 | 1630 | 19.5 | 946 | 36.5 |
| 55.6 | 1550 | 50 | 48.18 | 1754 | 24.07 | 1160 | 37.7 |
| 61.1 | 1600 | 55 | 47.75 | 1883 | 30.07 | 1436 | 38.6 |
| 66.7 | 1650 | 60 | 47.27 | 1991 | 36.31 | 1716 | 39.9 |
| 72.2 | 1700 | 65 | 46.74 | 2089 | 42.85 | 2003 | 41.8 |
| 77.8 | 1750 | 70 | 46.28 | 2185 | 49.58 | 2295 | 43.9 |
| 83.3 | 1800 | 75 | 45.72 | 2265 | 56.66 | 2590 | 45.1 |
| 88.9 | 1850 | 80 | 45.12 | 2347 | 64.24 | 2898 | 48.3 |
| 94.4 | 1900 | 85 | 44.51 | 2419 | 72.75 | 3238 | – |
| 100.0 | 1950 | 90 | 43.52 | 2536 | 86.26 | 3754 | – |
Maximum ESC temperature measured after turning off the power supply: 62.6 °C.
ESC temperature was not logged for the last two rows.
| ESC | RD Q-Pro V2 ESC 120A |
| Motor | 8030 FW (160KV) |
| Propeller | Falcon 24×12 CF FX |
| Battery | EP 40000 mAh 12S @ 58.8 V |
| Throttle % | PWM (µs) | Voltage (V) | Current (A) | RPM | Thrust (gf) | Torque (N·m) | Sys. efficiency (gf/W) | Motor power (W) | Electrical power (W) |
|---|---|---|---|---|---|---|---|---|---|
| 20 | 1190 | 56.95 | 4.40 | 2314 | 1759 | 0.571 | 7.02 | 138.33 | 250.56 |
| 25 | 1238 | 56.84 | 6.46 | 2713 | 2424 | 0.784 | 6.60 | 222.64 | 367.32 |
| 30 | 1285 | 56.72 | 8.67 | 3049 | 3129 | 0.991 | 6.36 | 316.33 | 491.61 |
| 35 | 1332 | 56.60 | 10.92 | 3352 | 3843 | 1.177 | 6.22 | 412.93 | 617.94 |
| 40 | 1380 | 56.46 | 13.75 | 3640 | 4629 | 1.430 | 5.96 | 544.92 | 776.18 |
| 45 | 1428 | 56.30 | 16.85 | 3910 | 5357 | 1.691 | 5.65 | 692.04 | 948.73 |
| 50 | 1475 | 56.10 | 20.31 | 4175 | 6147 | 1.965 | 5.40 | 858.81 | 1139.16 |
| 55 | 1522 | 55.93 | 23.84 | 4436 | 6964 | 2.192 | 5.22 | 1017.64 | 1333.24 |
| 60 | 1570 | 55.69 | 28.39 | 4704 | 7926 | 2.496 | 5.01 | 1228.85 | 1580.96 |
| 65 | 1618 | 55.41 | 33.74 | 4995 | 8813 | 2.815 | 4.71 | 1472.08 | 1869.80 |
| 70 | 1665 | 55.11 | 39.96 | 5285 | 9907 | 3.193 | 4.50 | 1766.05 | 2202.54 |
| 75 | 1712 | 54.70 | 48.57 | 5618 | 11399 | 3.686 | 4.29 | 2167.64 | 2656.83 |
| 80 | 1760 | 54.25 | 57.92 | 5941 | 12646 | 4.167 | 4.02 | 2590.99 | 3142.44 |
| 85 | 1808 | 53.76 | 68.28 | 6254 | 13922 | 4.664 | 3.79 | 3052.76 | 3670.73* |
| 90 | 1855 | 53.25 | 79.50 | 6538 | 15186 | 5.155 | 3.59 | 3527.80 | 4233.04 |
| 95 | 1902 | 52.62 | 93.64 | 6808 | 16944 | 5.779 | 3.44 | 4117.57 | 4927.57 |
| 100 | 1950 | 52.07 | 106.25 | 7038 | 18051 | 6.315 | 3.26 | 4651.66 | 5532.36 |
* Electrical power at 85% throttle is calculated as voltage × current (printed as 70.43 in the original test sheet).
2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
