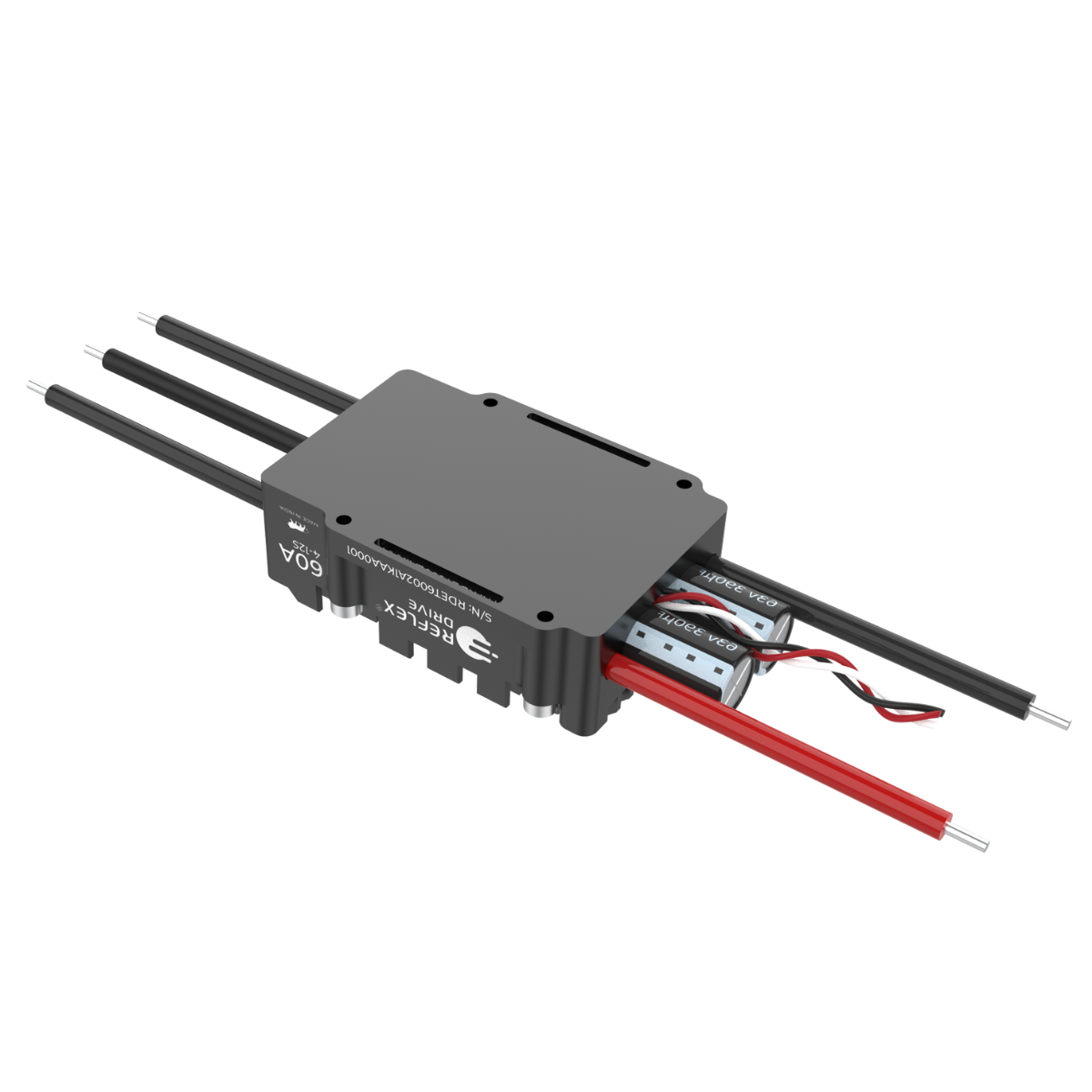

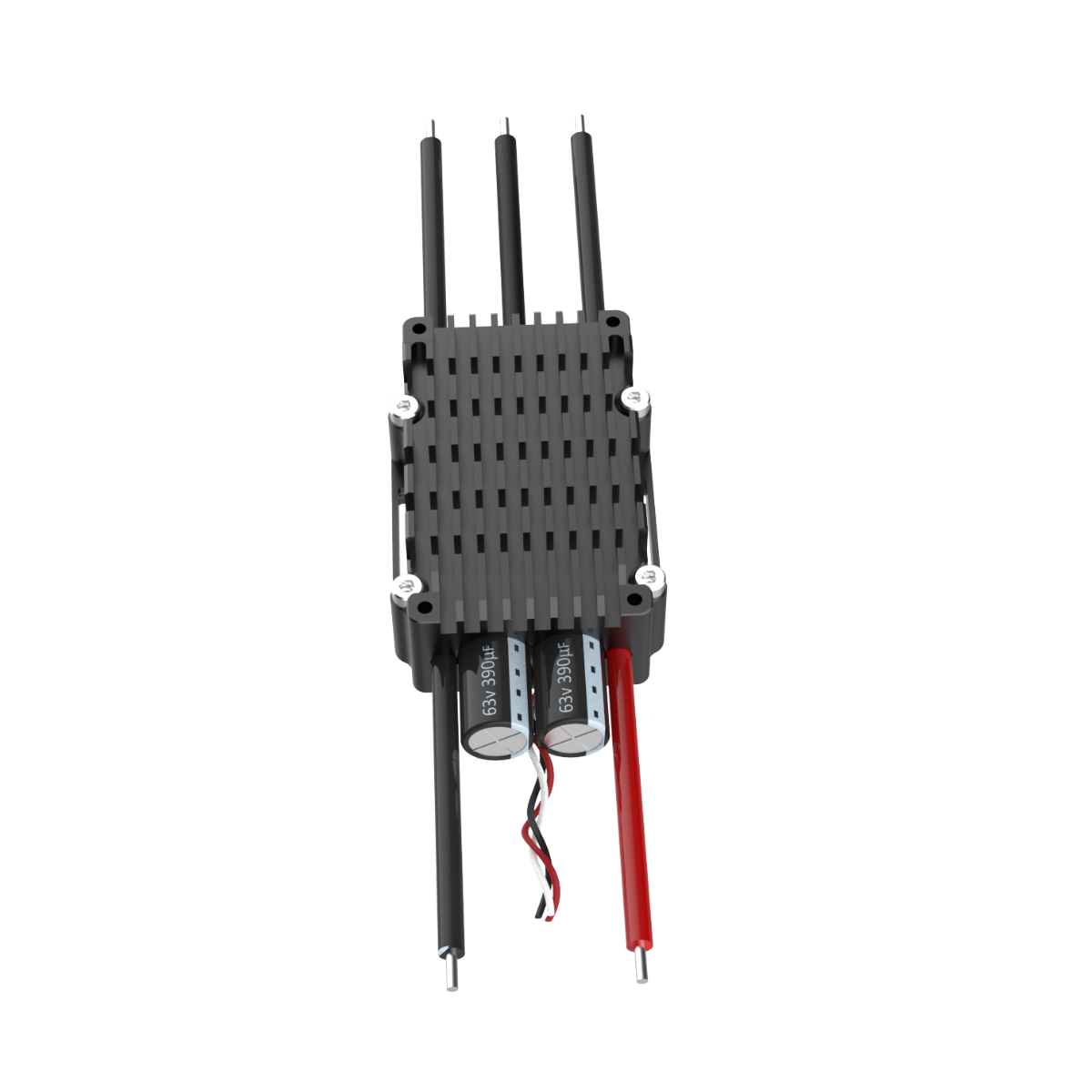

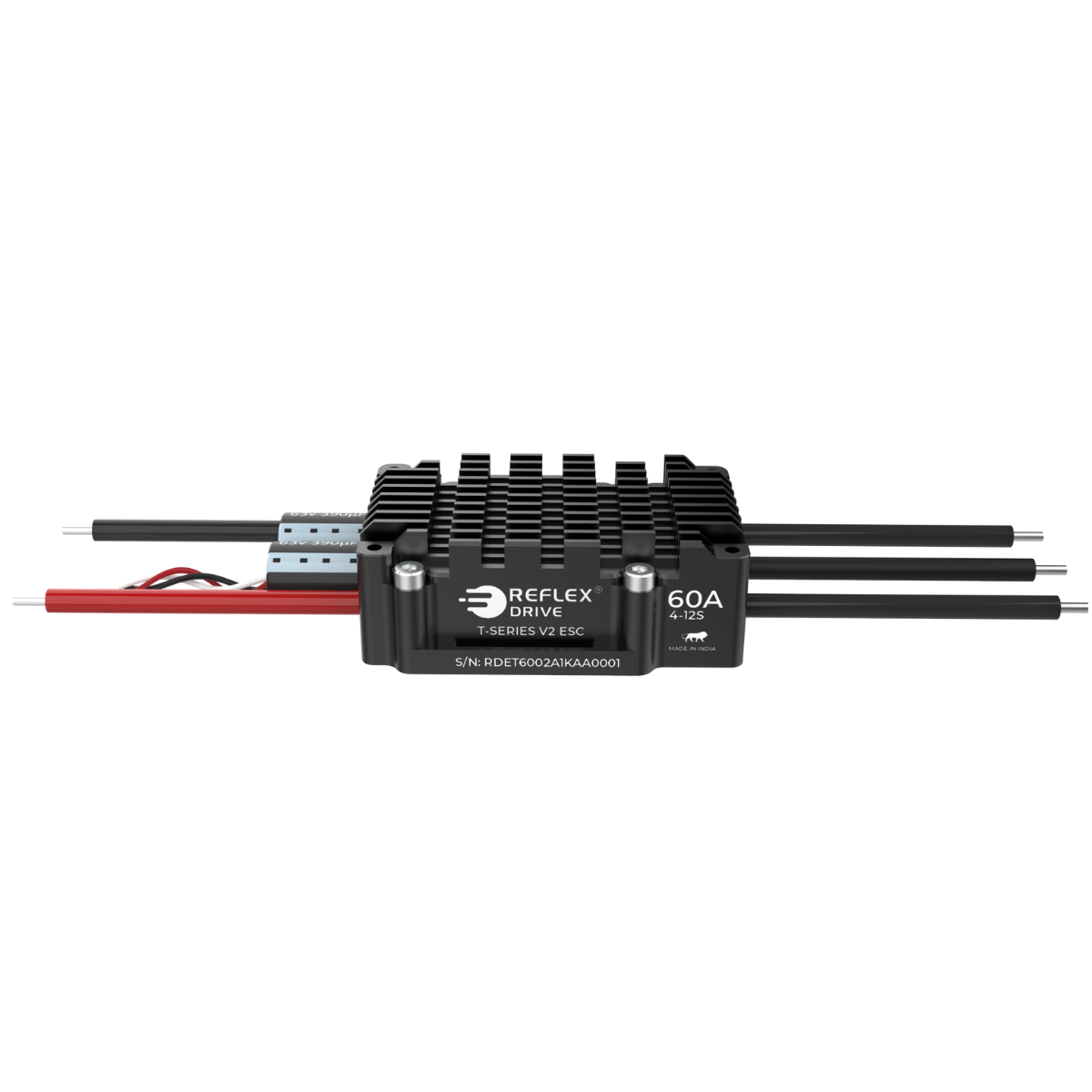

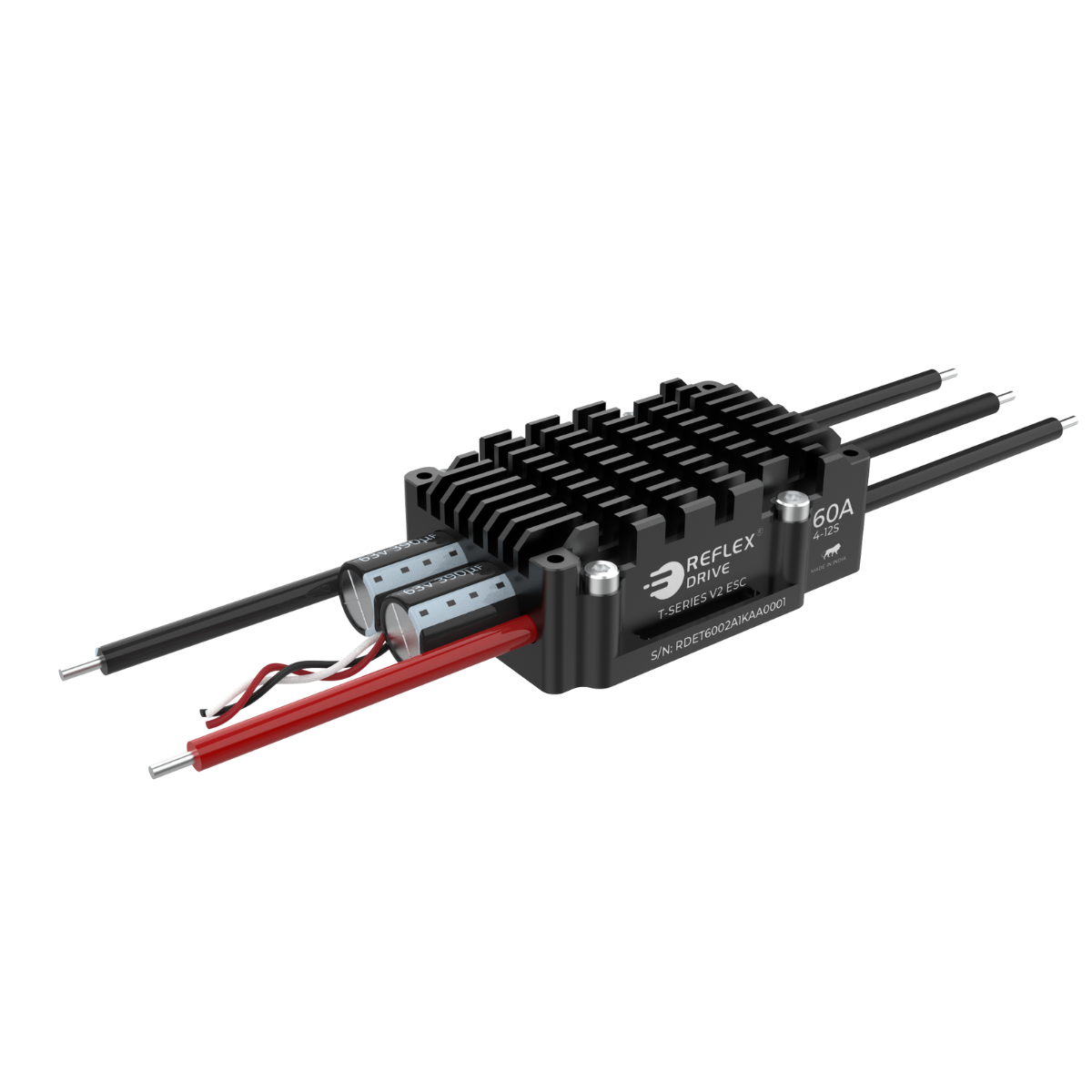

RD T-Series V2 ESC 12S-60A is an advanced Electronic Speed Controller (ESC) designed for high-performance applications. Made in India, this model significantly enhances thermal and current handling capabilities. Housed in a sleek and durable Aluminum enclosure, the ESC offers excellent heat dissipation and protection against harsh environmental conditions.

Wiring Diagram: Click to see.

Key Features

• Durability: Continuous 60A operation for extended periods with active cooling.
•  Thermal Management: Continuous 55A operation for 30 minutes with active cooling.
•  Reliability: Rigorous testing ensures operational stability and durability under various conditions.

Testing and Validation

RD T-SERIES V2 ESC 12S-60A has undergone extensive and rigorous testing to ensure reliability, including:

• Continuous current durability tests with active cooling at 55A
• Sync-loss Testing
• Thermal Testing
• Step Test

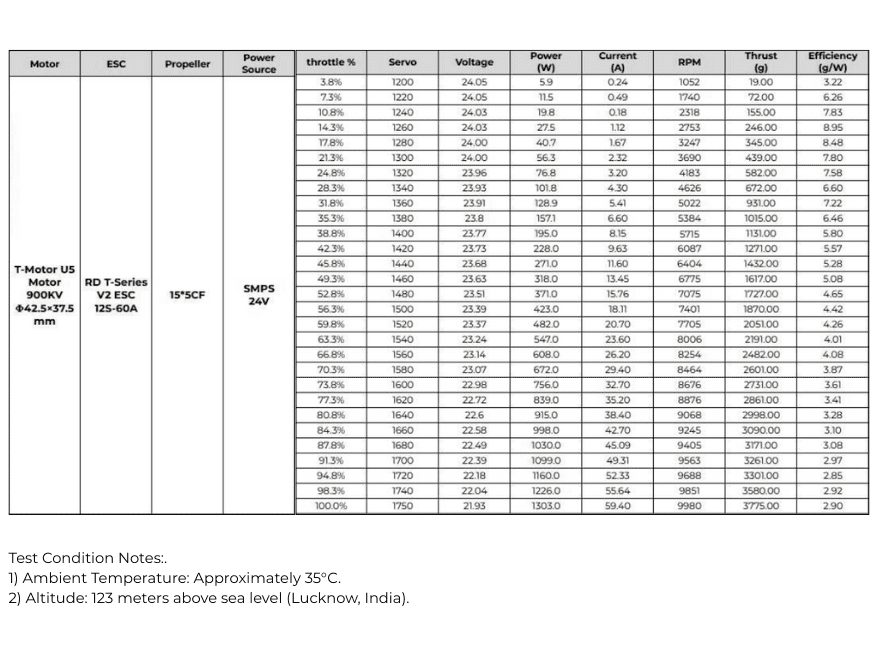

• Thrust Bench Performance Test
