Integrated dual 8015 motor coaxial propulsion system with advanced RD FOC ESC. Delivers 28 kg of peak thrust with high efficiency and optimized power-to-weight performance. Engineered with enhanced thermal management for cooling during continuous heavy-load operation.

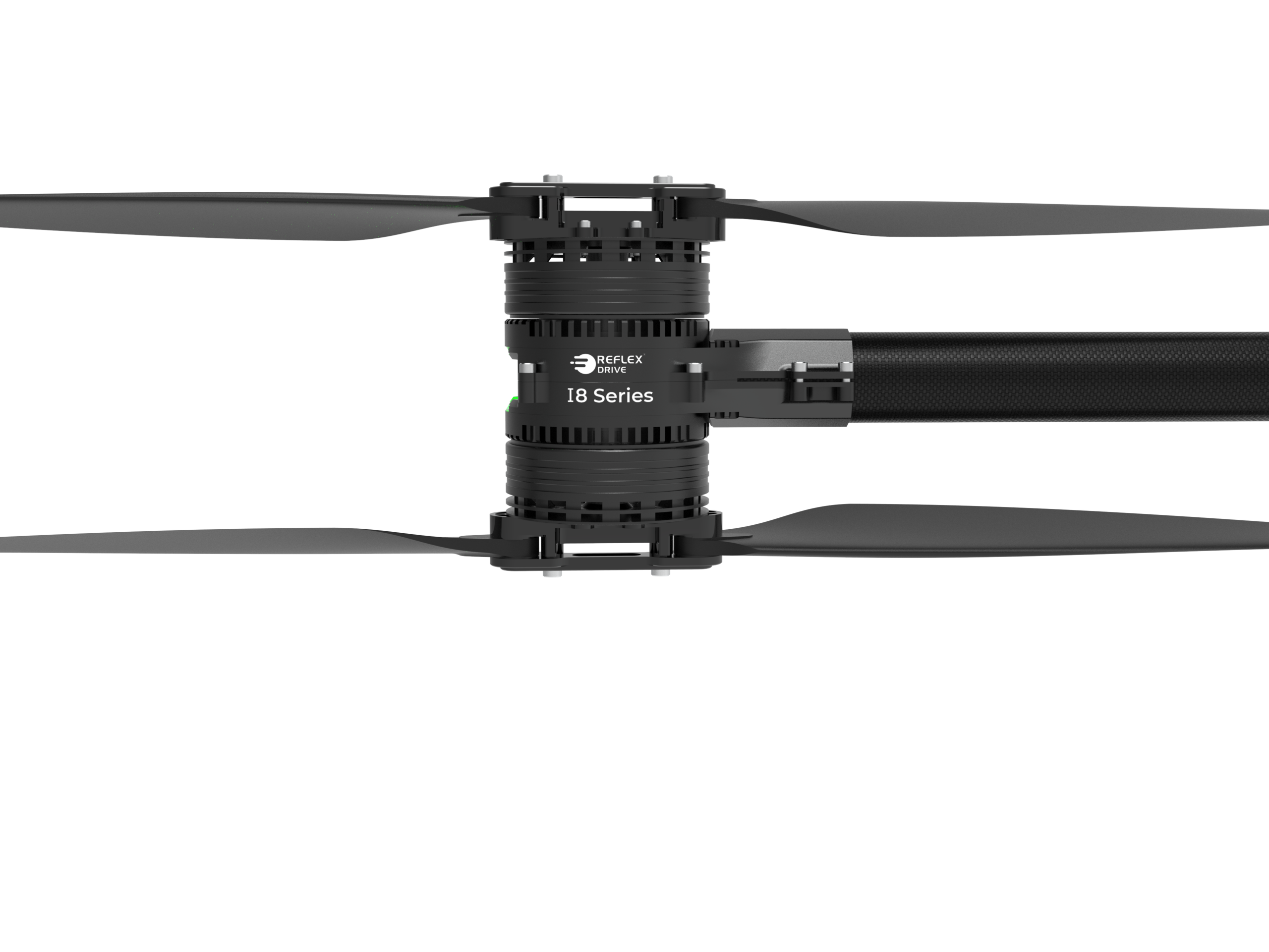

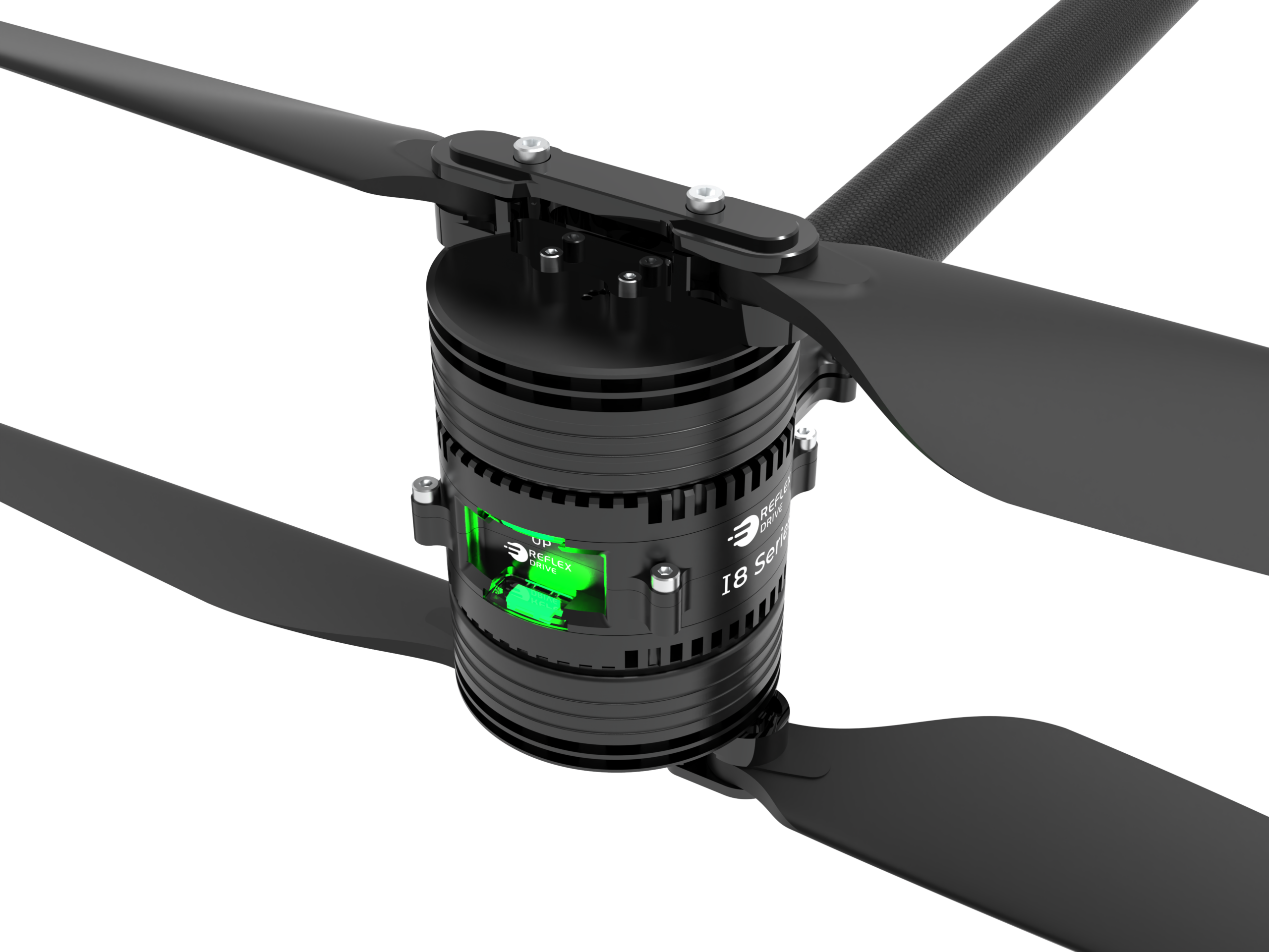

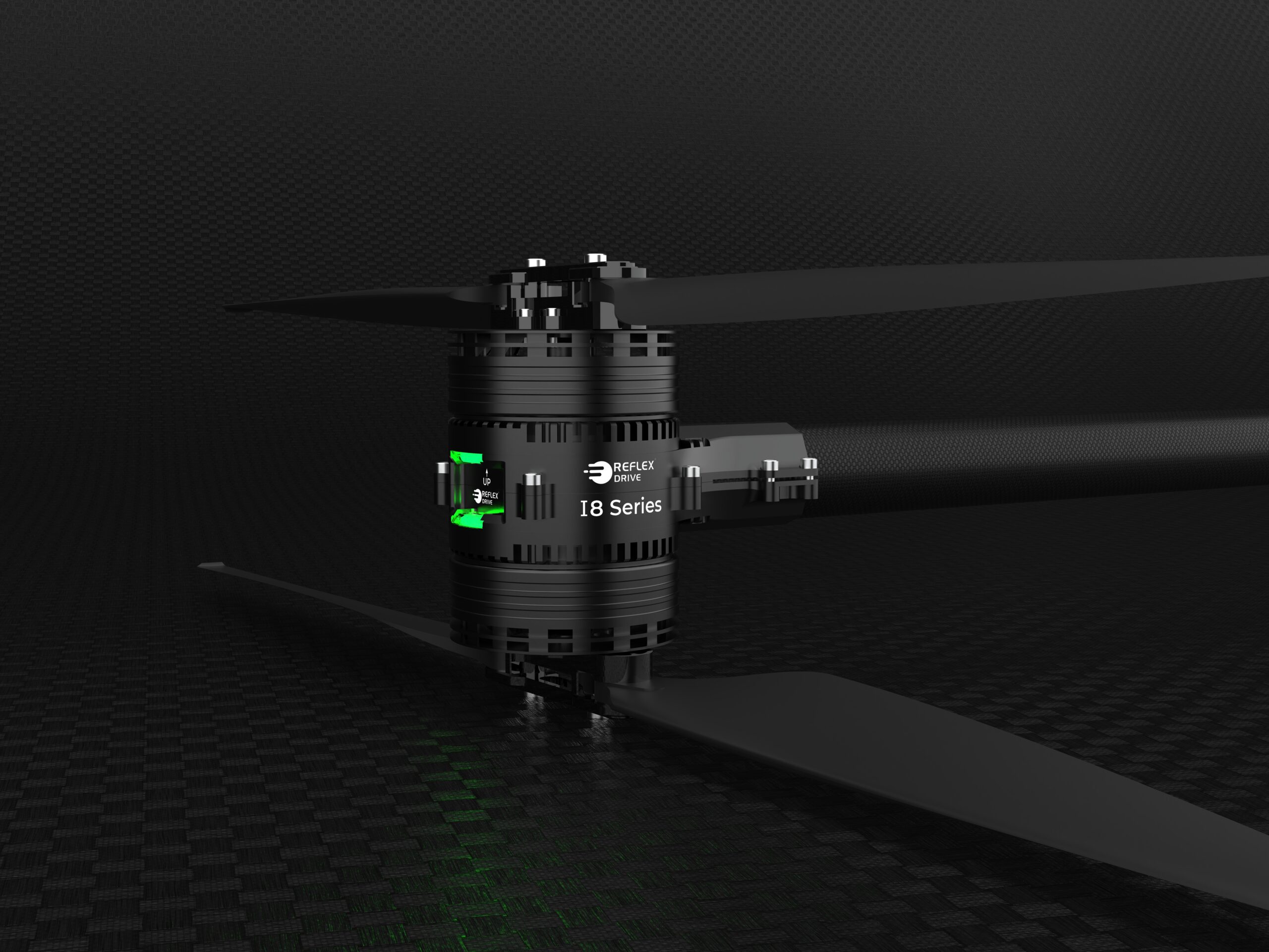

The RD I8 CPU is a coaxial propulsion unit built for coaxial layouts, which put rotors on both sides of one arm to get more thrust from a compact footprint. It is built around a 115KV motor (Ø89.5 mm × 48.55 mm) with a foldable 3011 propeller, and it includes overcurrent protection, over-temperature indication, low-voltage protection, throttle-loss protection and stall protection. The power leads are 12 AWG, rated for 200 °C and 1 m long, and the control and telemetry leads are 22 AWG two-wire JR connectors. It is listed as compliant with IPC Class 2.
Among our integrated propulsion units, the I8 is the coaxial option, while the R6 IPU and the R8 IPU are single-rotor units. Its motor has the same 115KV rating as the RD8015 115KV in our UAV motors range. Choose it when you need more thrust without making the airframe wider. Contact [email protected] for the datasheet and integration guidance.
| Power Leads (AWG & Length) | 12AWG, 200°C & 1 mtr. |
| ESC Signal Control lead | 22 AWG, 2-wire JR (W-B) |
| ESC Telemetry lead | 22 AWG, 2-wire JR (R-B) |
| Protection/Warning | Overcurrent Protection |
| Over temperature Indication | |
| Low Voltage Protection | |
| Throttle Loss Protection | |
| Stall Protection | |
| MOTOR | |
| Motor KV Rating | 115KV |
| Stator Poles / Magnet Poles | 24/2 |
| Motor Dimension | Ø89.50mm x 48.55mm |
| Recommended Propeller | 3011(Foldable) |
| Product name | RD I8 CPU |
| Country of Origin | India |
| Compliant | IPC Class 2 |
| Throttle signal frequency | 50-450Hz |
| Weight (without propeller) | 920 gm |
| Total weight (incl.propeller) | 1200 gm |
| Arm tube dia (OD) | 40 mm |
| operating Temperature | -20~50°C |
| ESC | |
| Voltage Range | 6S-12S (24V-58V) LiPo |
| Max. Input Current | 80A (180 sec) with airflow |
| PWM Range | 1050-1950us |
| BEC | No |
| PWM Input Signal | 3.3V-5V |
| Telemetry (over CAN) | Voltage, Current, Temperature, Motor RPM, Fault status |
| Communication Protocol | PWM, CAN |
| Test | Steady state, 25/05/26 |
| ESC | I Series (max 90 A, enclosure cooled) |
| Motor | RD 8015, 115 kV, 36-pole |
| Propeller | HW 3011 |
| Power supply | Battery, 49.61 V |
| Signal input | CAN throttle |
| Ambient | 34.5 °C, 55% RH (thermocouple) |
| PWM (µs) | Current (A) | Power (W) | Voltage (V) | Motor 1 RPM | Motor 2 RPM | Coaxial body temp (°C) |
|---|---|---|---|---|---|---|
| 1050 | 0.15 | 7 | 49.61 | 0 | 0 | 40.1 |
| 1100 | 0.28 | 14 | 49.59 | 0 | 0 | 40.1 |
| 1150 | 0.43 | 21 | 49.59 | 396 | 408 | 40.1 |
| 1200 | 0.56 | 27 | 49.58 | 450 | 450 | 40.1 |
| 1250 | 0.95 | 47 | 49.54 | 696 | 690 | 40.1 |
| 1300 | 1.88 | 93 | 49.49 | 942 | 936 | 40.1 |
| 1350 | 3.23 | 160 | 49.42 | 1188 | 1182 | 40.1 |
| 1400 | 5.37 | 264 | 49.20 | 1434 | 1428 | 40.1 |
| 1450 | 8.22 | 403 | 49.00 | 1674 | 1680 | 40.1 |
| 1500 | 12.05 | 587 | 48.70 | 1926 | 1914 | 40.1 |
| 1550 | 17.26 | 834 | 48.34 | 2178 | 2166 | 40.1 |
| 1600 | 23.56 | 1126 | 47.82 | 2424 | 2418 | 40.1 |
| 1650 | 32.02 | 1513 | 47.25 | 2670 | 2664 | 40.2 |
| 1700 | 42.20 | 1959 | 46.41 | 2916 | 2910 | 40.3 |
| 1750 | 56.65 | 2528 | 45.41 | 3162 | 3156 | 40.5 |
| 1800 | 72.98 | 3241 | 44.11 | 3396 | 3408 | 40.7 |
| 1850 | 90.08 | 3870 | 42.96 | 3528 | 3648 | 40.9 |
| 1900 | 90.50 | 3875 | 42.81 | 3516 | 3642 | 41.2 |
| 1950 | 90.03 | 3843 | 42.69 | 3504 | 3630 | 42.1 |
Coaxial body temperature after turning off the power supply: 56 °C.
2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
