340KV | 6S

Product Description

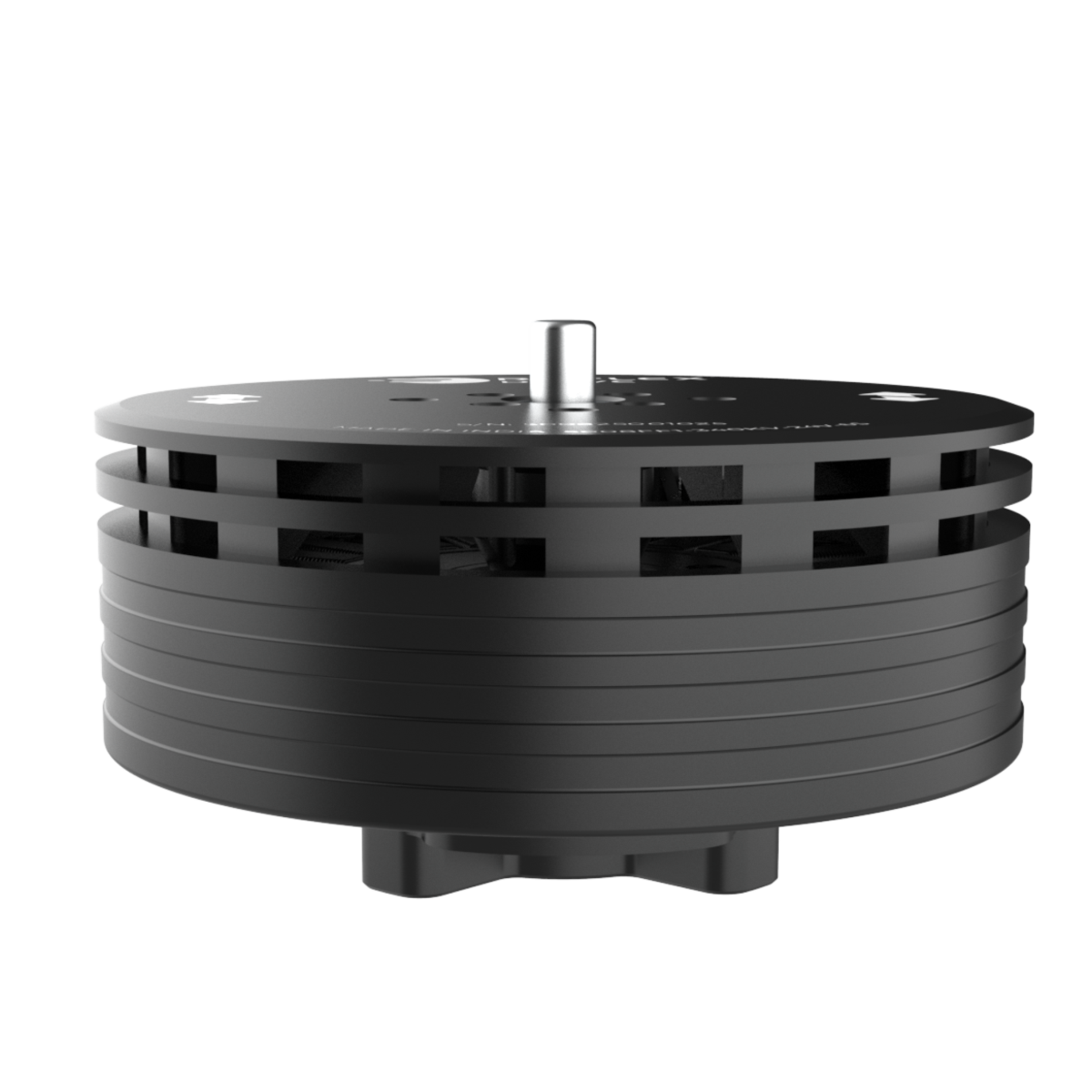

RD 5008 Brushless Motor is a lightweight, efficient brushless outrunner motor with a KV rating of 340KV, engineered to meet the demands of quadcopters and VTOL applications. Made in India, it features advanced cooling for reliable performance and durability under high-thrust conditions. The motor is compatible with 15-inch to 18-inch propellers.

Where the RD5008 fits

The RD5008 is a lightweight 340KV outrunner for 4S to 6S batteries. It weighs 135 g including wire and has a datasheet maximum thrust of 3 kgf, a peak current of 30 A for 15 seconds, a 1.5 A no-load current and 90.99 % efficiency. It suits small to medium multirotors, camera platforms, training airframes and development builds where weight and battery size are limited.

The recommended ESC is the RD D-Pro V3 ESC, which is designed for 6S (24 V) operation and handles the motor’s peak load.

How it compares

In our UAV motors, the RD5008 sits above the RD4006 415KV (415KV, 1.7 kgf, 69 g) and below the RD7006 230KV (230KV, 5 kgf, 190 g). It is the right choice when the RD4006 is not quite enough but a 6S, 190 g motor would be more than you need. The higher-KV motors, the RD3113 900KV and the RD2810 1250KV, spin faster with smaller propellers and are aimed at different airframes. Our team at [email protected] can help match a propeller from the propellers range.

Specifications


Product name RD 5008 UAV BLDC MOTOR
Country of Origin  India
Motor Type Outrunner
KV Rating 340 KV
Maximum Thrust 3 kgf
Stator Poles / Magnet Poles 24/28
No load Current 1.5 A
Motor Efficiency 90.99 %
Weight (Incl. Wire) 135 g
Voltage Range 4-6S
Peak Current (15 sec) 30 A

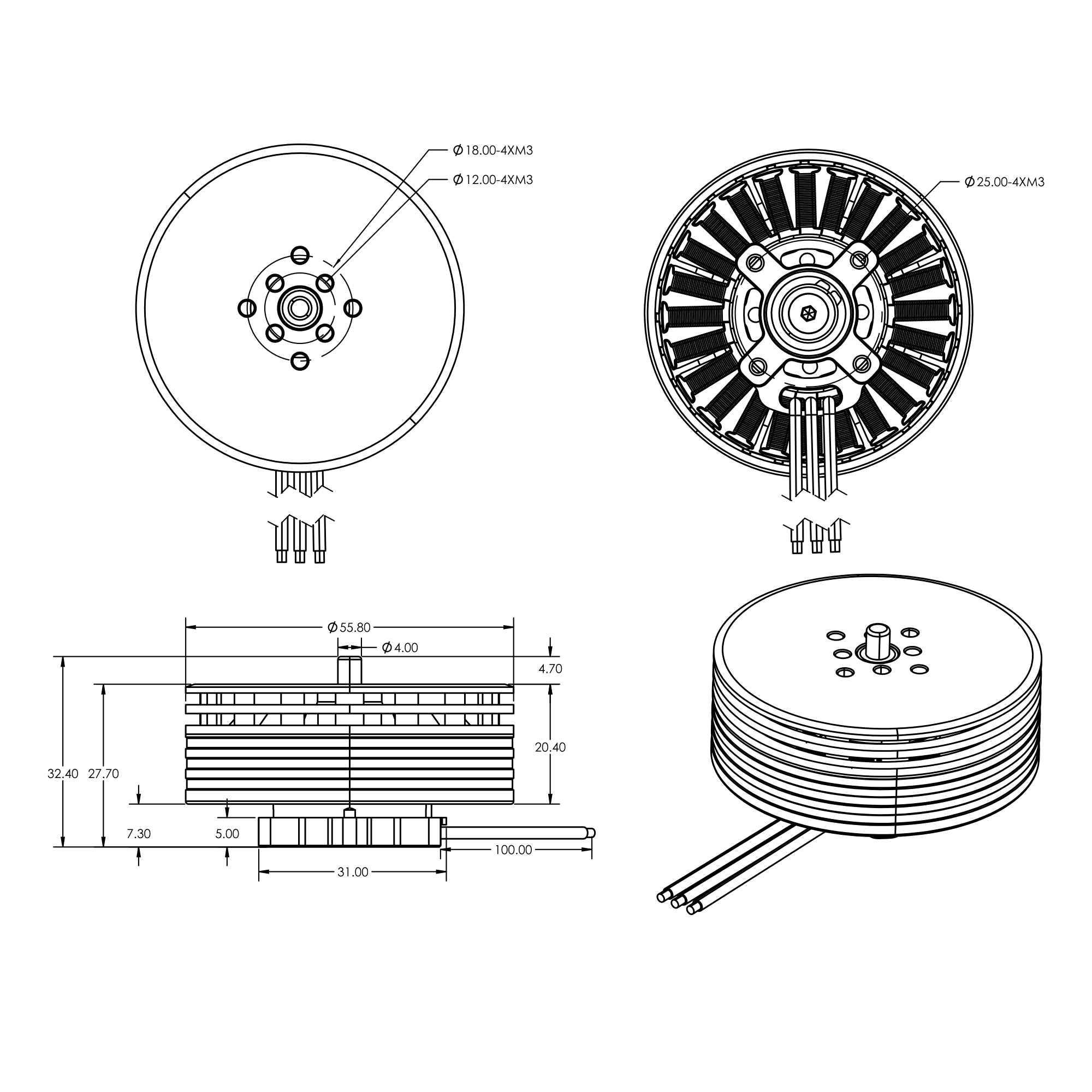

Motor Size Ø55.80 mm x 33.00 mm
Stator Size Ø50 mm x 8 mm
Cable Length 100 mm
Cable Type 16 AWG
Magnet Temperature Rating 150 ℃
Shaft Diameter Ø4 mm
Winding Material 100% Copper
IP Rating IP54
Maximum Operating Temperature 60 ℃
Production Status Production
Recommended ESC D-Pro V3 ESC
Recommended Propeller 1760

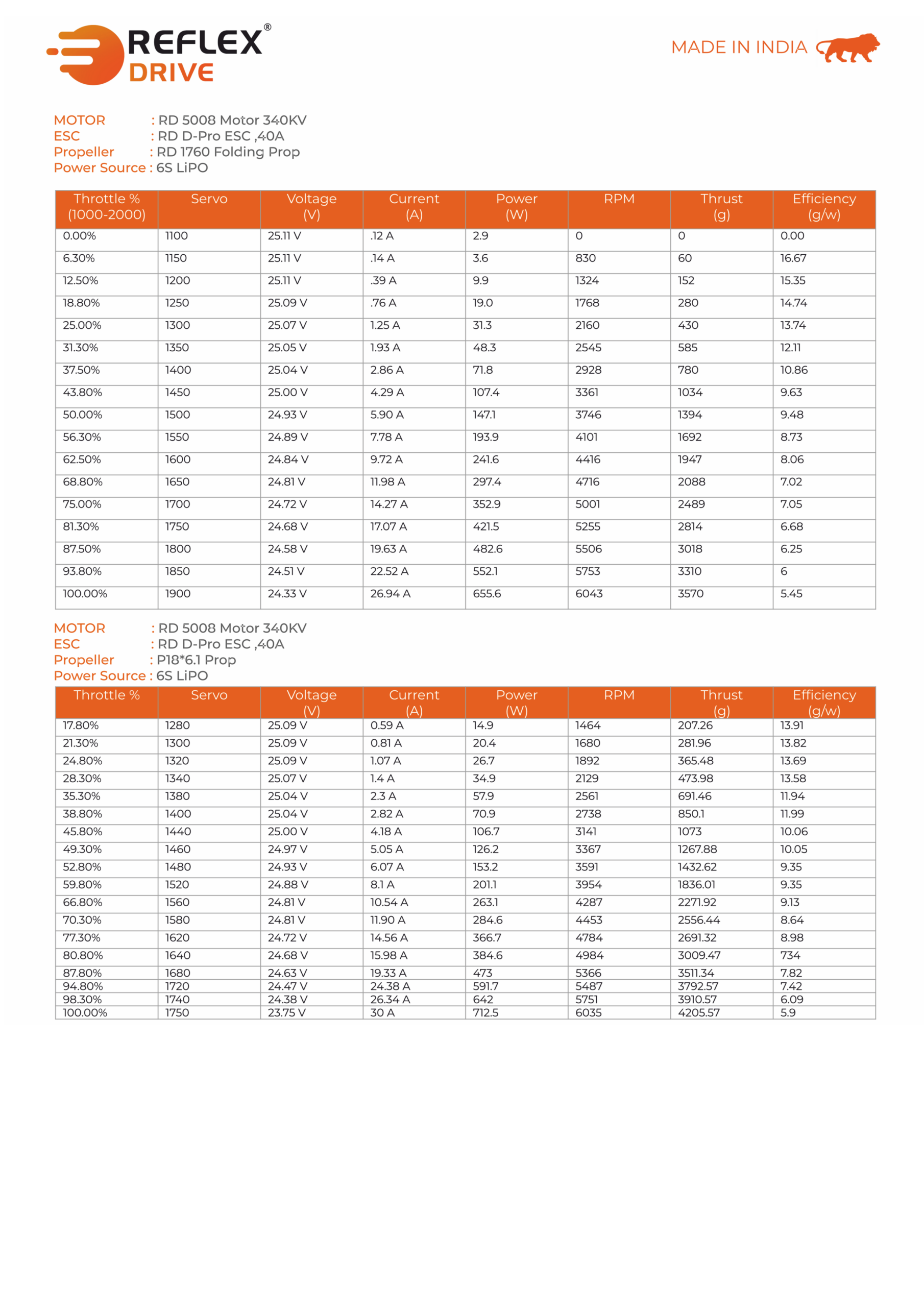

Engineering Data

Motor RD 5008 (340KV)
ESC RD D-Pro ESC 40A
Propeller RD 1760 folding prop
Power source 6S LiPo
Throttle % Servo (µs) Voltage (V) Current (A) Power (W) RPM Thrust (g) Efficiency (g/W)
0.0 1100 25.11 0.12 2.9 0 0 0.00
6.3 1150 25.11 0.14 3.6 830 60 16.67
12.5 1200 25.11 0.39 9.9 1324 152 15.35
18.8 1250 25.09 0.76 19.0 1768 280 14.74
25.0 1300 25.07 1.25 31.3 2160 430 13.74
31.3 1350 25.05 1.93 48.3 2545 585 12.11
37.5 1400 25.04 2.86 71.8 2928 780 10.86
43.8 1450 25.00 4.29 107.4 3361 1034 9.63
50.0 1500 24.93 5.90 147.1 3746 1394 9.48
56.3 1550 24.89 7.78 193.9 4101 1692 8.73
62.5 1600 24.84 9.72 241.6 4416 1947 8.06
68.8 1650 24.81 11.98 297.4 4716 2088 7.02
75.0 1700 24.72 14.27 352.9 5001 2489 7.05
81.3 1750 24.68 17.07 421.5 5255 2814 6.68
87.5 1800 24.58 19.63 482.6 5506 3018 6.25
93.8 1850 24.51 22.52 552.1 5753 3310 6.00
100.0 1900 24.33 26.94 655.6 6043 3570 5.45
Motor RD 5008 (340KV)
ESC RD D-Pro ESC 40A
Propeller P18×6.1
Power source 6S LiPo
Throttle % Servo (µs) Voltage (V) Current (A) Power (W) RPM Thrust (g) Efficiency (g/W)
17.8 1280 25.09 0.59 14.9 1464 207.26 13.91
21.3 1300 25.09 0.81 20.4 1680 281.96 13.82
24.8 1320 25.09 1.07 26.7 1892 365.48 13.69
28.3 1340 25.07 1.4 34.9 2129 473.98 13.58
35.3 1380 25.04 2.3 57.9 2561 691.46 11.94
38.8 1400 25.04 2.82 70.9 2738 850.1 11.99
45.8 1440 25.00 4.18 106.7 3141 1073 10.06
49.3 1460 24.97 5.05 126.2 3367 1267.88 10.05
52.8 1480 24.93 6.07 153.2 3591 1432.62 9.35
59.8 1520 24.88 8.1 201.1 3954 1836.01 9.13
66.8 1560 24.81 10.54 263.1 4287 2271.92 8.64
70.3 1580 24.81 11.90 284.6 4453 2556.44 8.98
77.3 1620 24.72 14.56 366.7 4784 2691.32 7.34
80.8 1640 24.68 15.98 384.6 4984 3009.47 7.82
87.8 1680 24.63 19.33 473 5366 3511.34 7.42
94.8 1720 24.47 24.38 591.7 5487 3792.57 6.41
98.3 1740 24.38 26.34 642 5751 3910.57 6.09
100.0 1750 23.75 30 712.5 6035 4205.57 5.90

2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
