RD3113 900KV

RD3113 900KV

RD3113 900KV

900KV | 6S

₹4,300

Per unit, for orders under 50 units, excl. GST. Discounts apply to volume orders: for 50 units or more, contact [email protected]. See the full price list

Price on requestContact [email protected] for a quote. Discounts apply to volume orders.

Pricing will be announced at launch. Contact [email protected] for availability and early orders.

Product Description

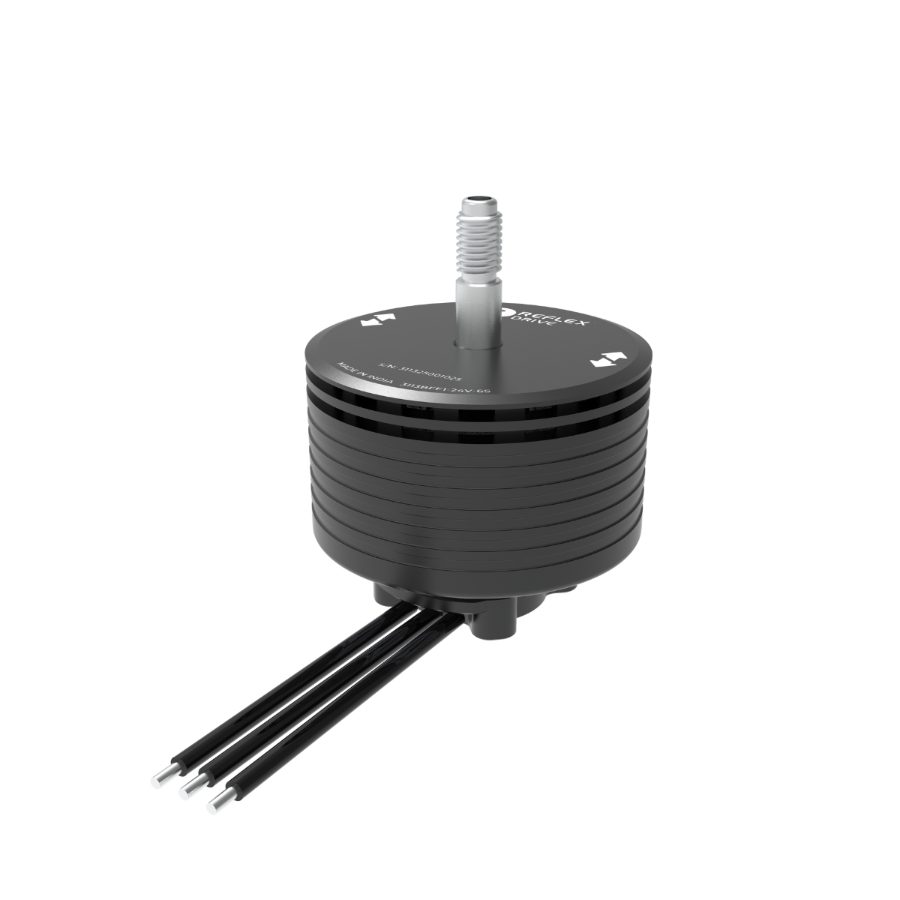

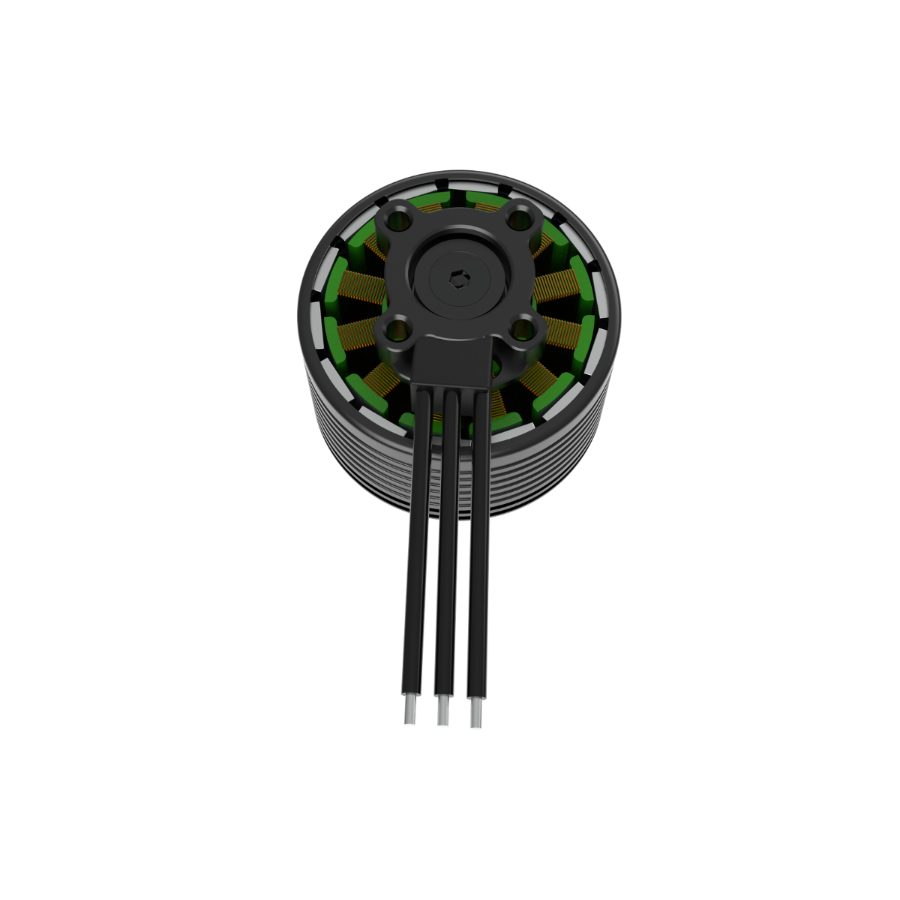

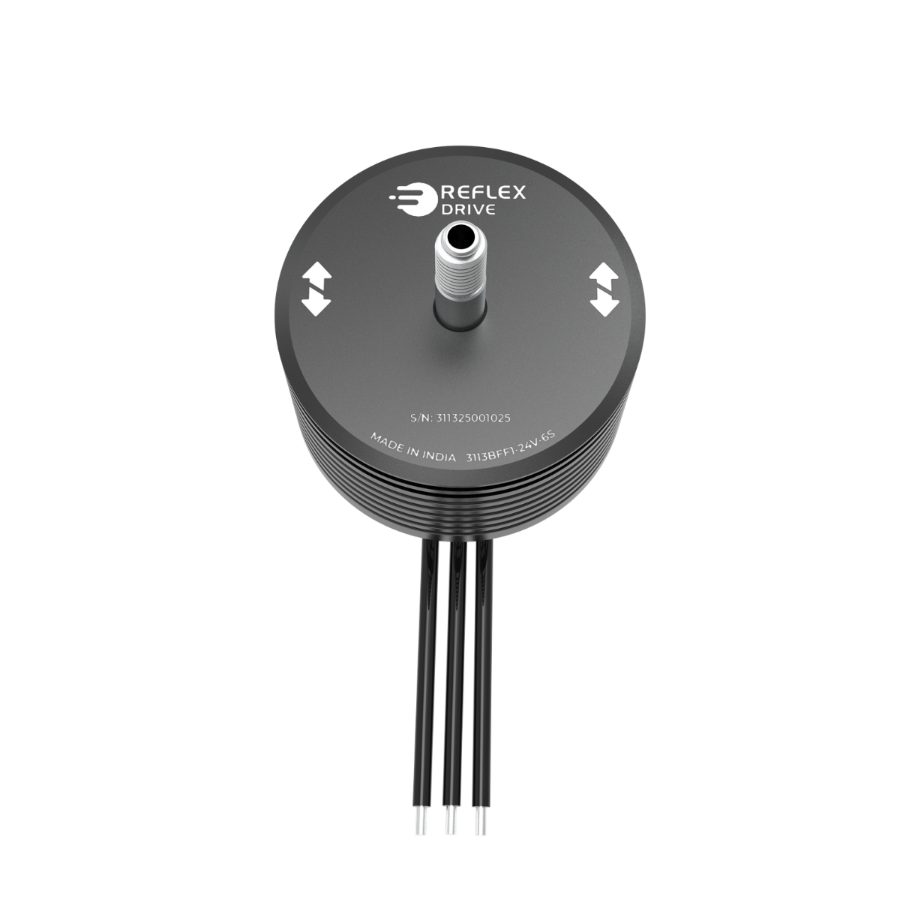

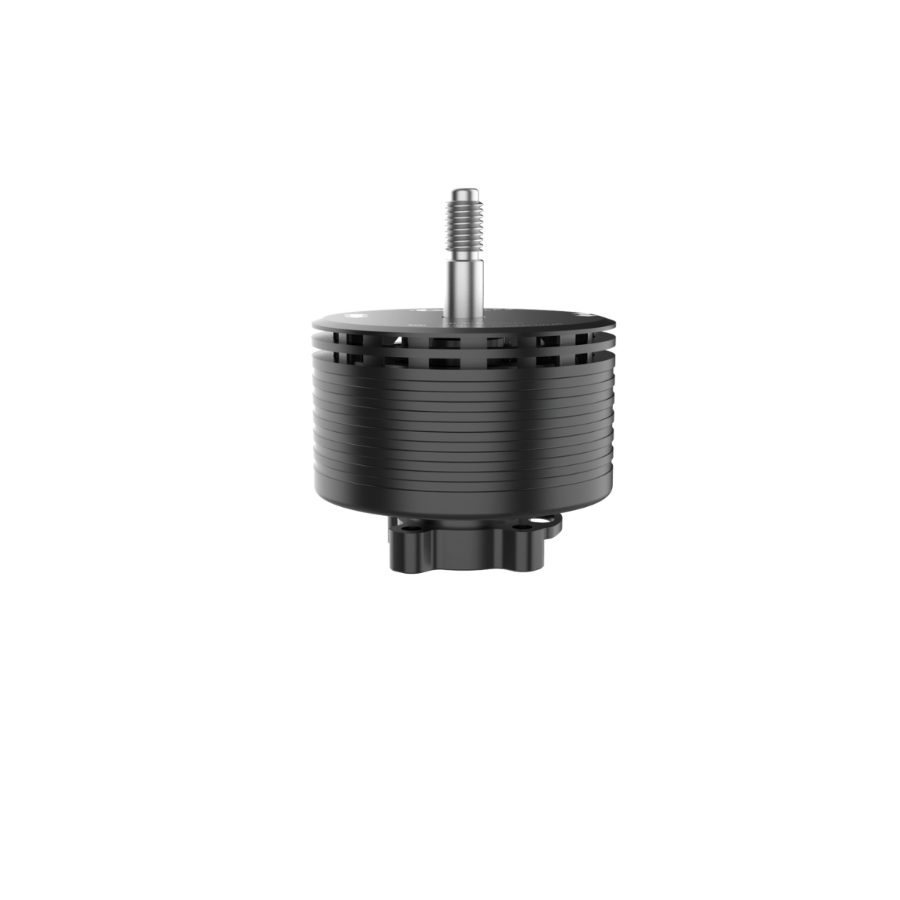

The RD3113 is an outrunner motor for FPV drones. It delivers smooth throttle response, high efficiency, and reliable power. It is lightweight and suited to 4S–6S LiPo setups, with precise control and consistent thrust.

Where the RD3113 fits

The RD3113 is a 900KV motor for 6S (24 V) systems. The datasheet lists 1.85 kgf of maximum thrust, 731 W of maximum power, a 31.81 A peak current and a weight of 96 g. A higher KV means the motor spins faster and works with smaller propellers, so it suits compact multirotors, fast or agile platforms and small-airframe development work rather than slow, large-propeller endurance builds.

The recommended ESC is the RD D-Pro V3 ESC.

How it compares

Among our UAV motors, the RD3113 sits between the lower-KV, lighter motors such as the RD4006 415KV and the RD5008 340KV, and the RD2810 1250KV (1250KV, 2 kgf, 1237 W, 82 g), which is the fastest-spinning motor in the range. Choose the RD3113 when you want a middle ground of speed and thrust for a small airframe. For larger builds that need long endurance, look at the lower-KV, higher-voltage motors in the same category. Contact [email protected] to confirm propeller choice and take-off weight.

Specifications


Product name RD3113 900KV
Country of Origin  India
Motor Type Outrunner
KV Rating 900 KV
Maximum Thrust 1.85 kgf
Maximum Power 731 W
Peak Current 31.81 A
Weight (Incl. Wire) 96 g
Voltage Range 24V, 6S LiPo

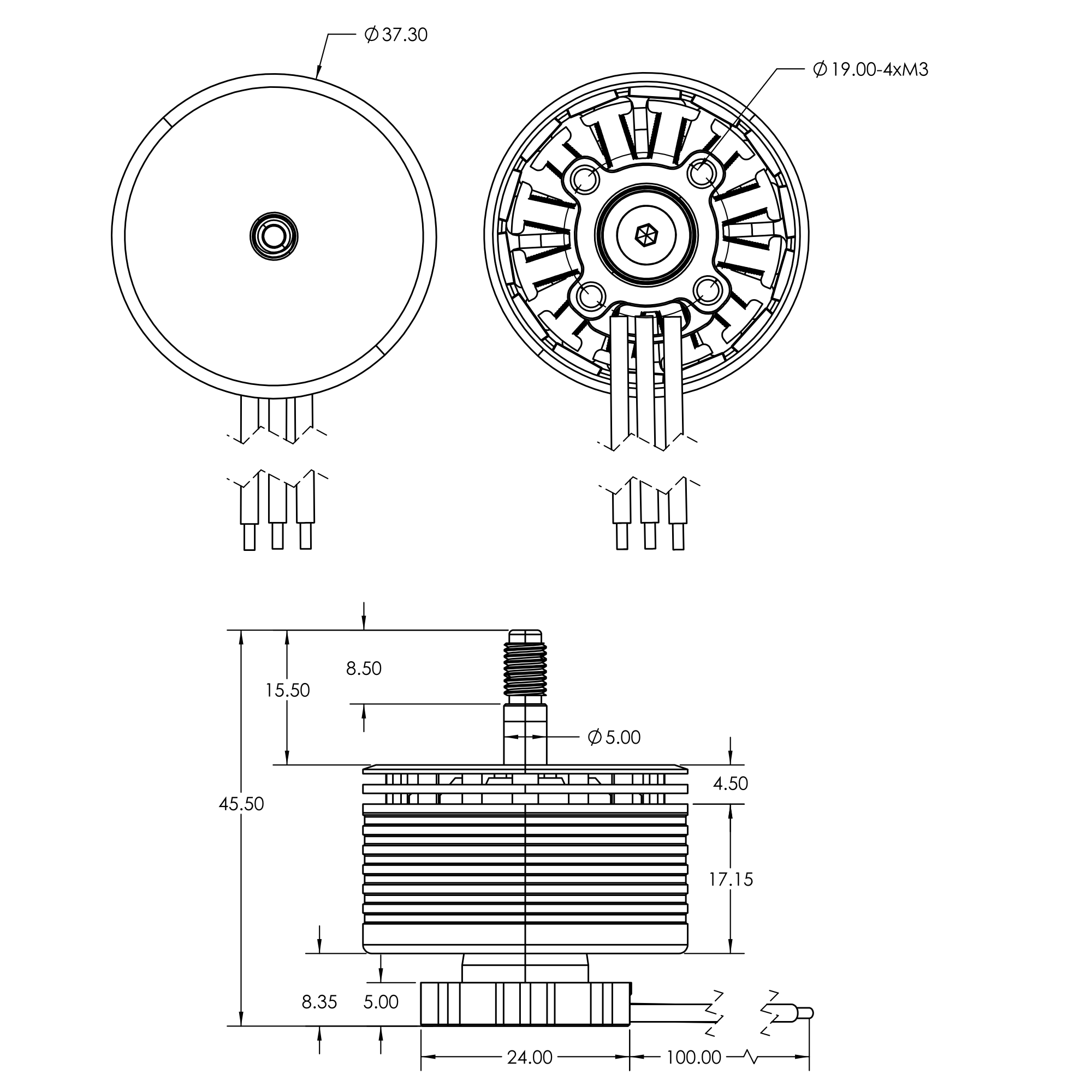

Motor Size Ø37mm x 48 mm
Stator Size Ø31 mm x 13 mm
Cable Length 100 mm
Cable Type 16 AWG
Magnet Temperature Rating 150 ℃
Shaft Diameter Ø5 mm
Winding Material 100% Copper
IP Rating IP34
Maximum Operating Temperature 60 ℃
Production Status Production
Recommended ESC D-Pro V3 ESC
Recommended Propeller RD 8040 (3 blade)

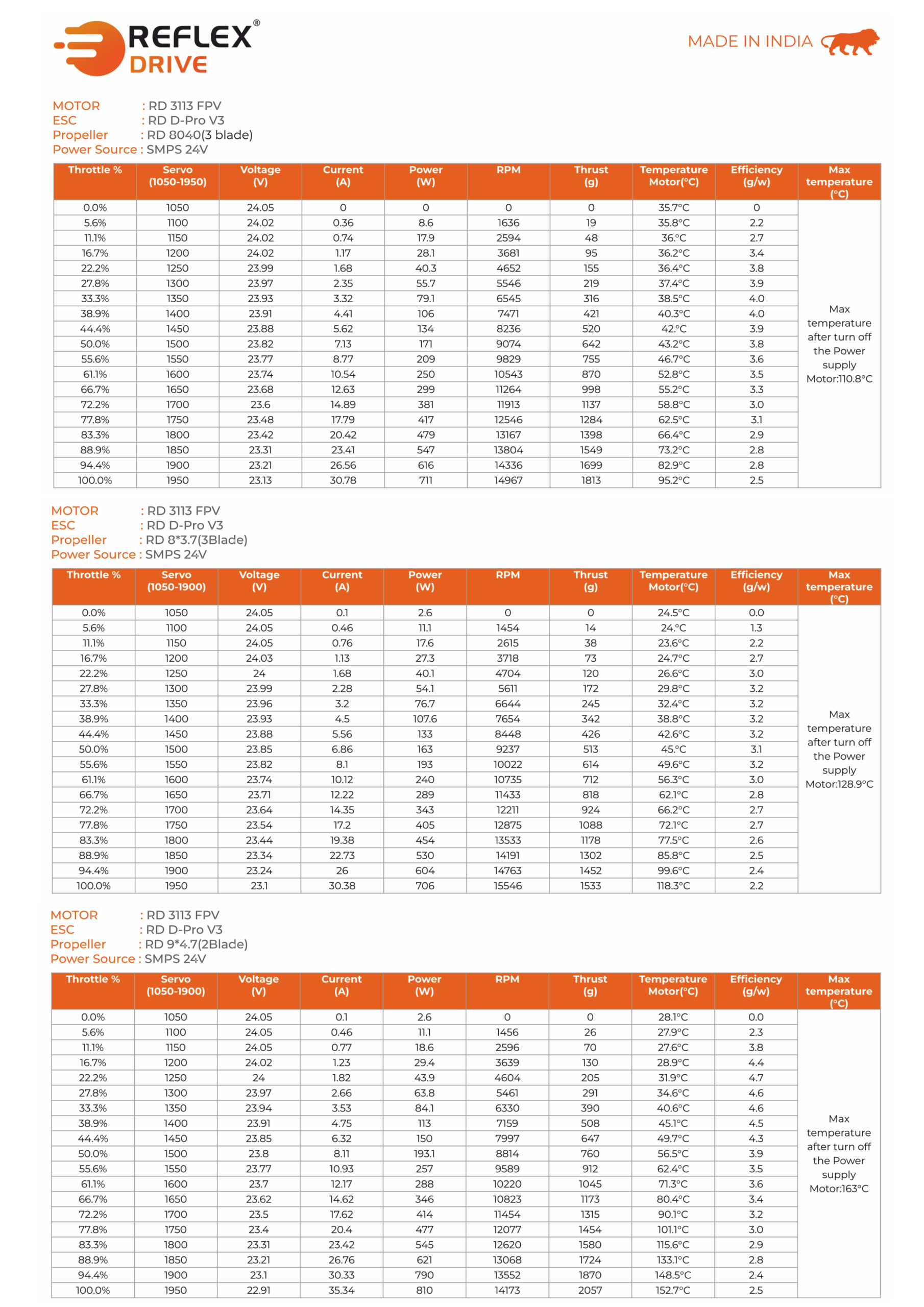

Engineering Data

Motor RD 3113 FPV
ESC RD D-Pro V3
Propeller RD 8040 (3-blade)
Power source SMPS 24 V
Throttle % Servo (µs) Voltage (V) Current (A) Power (W) RPM Thrust (g) Motor Temp (°C) Efficiency (g/W)
0.0 1050 24.05 0 0 0 0 35.7 0
5.6 1100 24.02 0.36 8.6 1636 19 35.8 2.2
11.1 1150 24.02 0.74 17.9 2594 48 36.0 2.7
16.7 1200 24.02 1.17 28.1 3681 95 36.2 3.4
22.2 1250 23.99 1.68 40.3 4652 155 36.4 3.8
27.8 1300 23.97 2.35 55.7 5546 219 37.4 3.9
33.3 1350 23.93 3.32 79.1 6545 316 38.5 4.0
38.9 1400 23.91 4.41 106 7471 421 40.3 4.0
44.4 1450 23.88 5.62 134 8236 520 42.0 3.9
50.0 1500 23.82 7.13 171 9074 642 43.2 3.8
55.6 1550 23.77 8.77 209 9829 755 46.7 3.6
61.1 1600 23.74 10.54 250 10543 870 52.8 3.5
66.7 1650 23.68 12.63 299 11264 998 55.2 3.3
72.2 1700 23.6 14.89 381 11913 1137 58.8 3.0
77.8 1750 23.48 17.79 417 12546 1284 62.5 3.1
83.3 1800 23.42 20.42 479 13167 1398 66.4 2.9
88.9 1850 23.31 23.41 547 13804 1549 73.2 2.8
94.4 1900 23.21 26.56 616 14336 1699 82.9 2.8
100.0 1950 23.13 30.78 711 14967 1813 95.2 2.5

Maximum motor temperature measured after turning off the power supply: 110.8 °C.

Motor RD 3113 FPV
ESC RD D-Pro V3
Propeller RD 8×3.7 (3-blade)
Power source SMPS 24 V
Throttle % Servo (µs) Voltage (V) Current (A) Power (W) RPM Thrust (g) Motor Temp (°C) Efficiency (g/W)
0.0 1050 24.05 0.1 2.6 0 0 24.5 0.0
5.6 1100 24.05 0.46 11.1 1454 14 24.0 1.3
11.1 1150 24.05 0.76 17.6 2615 38 23.6 2.2
16.7 1200 24.03 1.13 27.3 3718 73 24.7 2.7
22.2 1250 24 1.68 40.1 4704 120 26.6 3.0
27.8 1300 23.99 2.28 54.1 5611 172 29.8 3.2
33.3 1350 23.96 3.2 76.7 6644 245 32.4 3.2
38.9 1400 23.93 4.5 107.6 7654 342 38.8 3.2
44.4 1450 23.88 5.56 133 8448 426 42.6 3.2
50.0 1500 23.85 6.86 163 9237 513 45.0 3.1
55.6 1550 23.82 8.1 193 10022 614 49.6 3.2
61.1 1600 23.74 10.12 240 10735 712 56.3 3.0
66.7 1650 23.71 12.22 289 11433 818 62.1 2.8
72.2 1700 23.64 14.35 343 12211 924 66.2 2.7
77.8 1750 23.54 17.2 405 12875 1088 72.1 2.7
83.3 1800 23.44 19.38 454 13533 1178 77.5 2.6
88.9 1850 23.34 22.73 530 14191 1302 85.8 2.5
94.4 1900 23.24 26 604 14763 1452 99.6 2.4
100.0 1950 23.1 30.38 706 15546 1533 118.3 2.2

Maximum motor temperature measured after turning off the power supply: 128.9 °C.

Motor RD 3113 FPV
ESC RD D-Pro V3
Propeller RD 9×4.7 (2-blade)
Power source SMPS 24 V
Throttle % Servo (µs) Voltage (V) Current (A) Power (W) RPM Thrust (g) Motor Temp (°C) Efficiency (g/W)
0.0 1050 24.05 0.1 2.6 0 0 28.1 0.0
5.6 1100 24.05 0.46 11.1 1456 26 27.9 2.3
11.1 1150 24.05 0.77 18.6 2596 70 27.6 3.8
16.7 1200 24.02 1.23 29.4 3639 130 28.9 4.4
22.2 1250 24 1.82 43.9 4604 205 31.9 4.7
27.8 1300 23.97 2.66 63.8 5461 291 34.6 4.6
33.3 1350 23.94 3.53 84.1 6330 390 40.6 4.6
38.9 1400 23.91 4.75 113 7159 508 45.1 4.5
44.4 1450 23.85 6.32 150 7997 647 49.7 4.3
50.0 1500 23.8 8.11 193.1 8814 760 56.5 3.9
55.6 1550 23.77 10.93 257 9589 912 62.4 3.5
61.1 1600 23.7 12.17 288 10220 1045 71.3 3.6
66.7 1650 23.62 14.62 346 10823 1173 80.4 3.4
72.2 1700 23.5 17.62 414 11454 1315 90.1 3.2
77.8 1750 23.4 20.4 477 12077 1454 101.1 3.0
83.3 1800 23.31 23.42 545 12620 1580 115.6 2.9
88.9 1850 23.21 26.76 621 13068 1724 133.1 2.8
94.4 1900 23.1 30.33 790 13552 1870 148.5 2.4
100.0 1950 22.91 35.34 810 14173 2057 152.7 2.5

Maximum motor temperature measured after turning off the power supply: 163 °C.

2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
