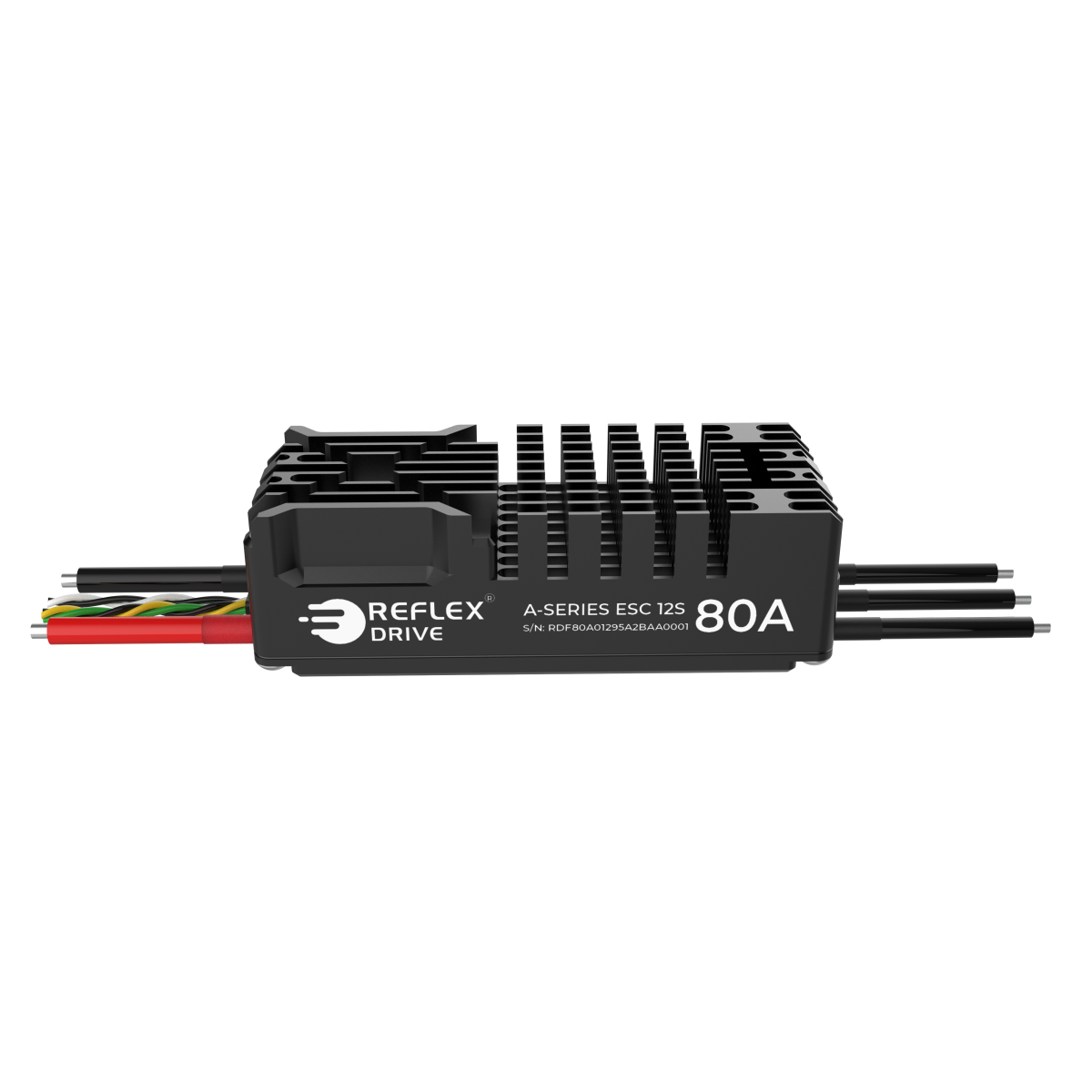

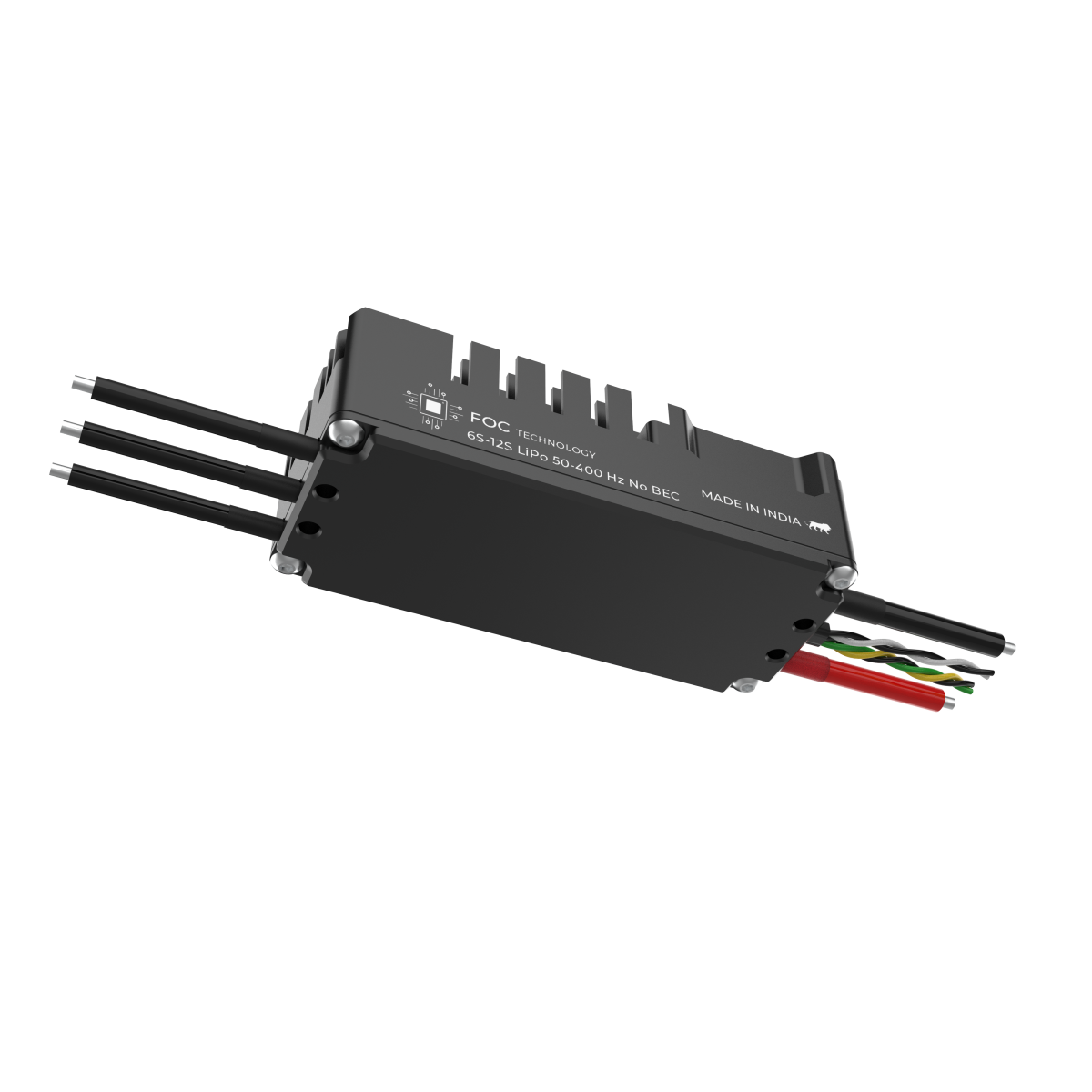

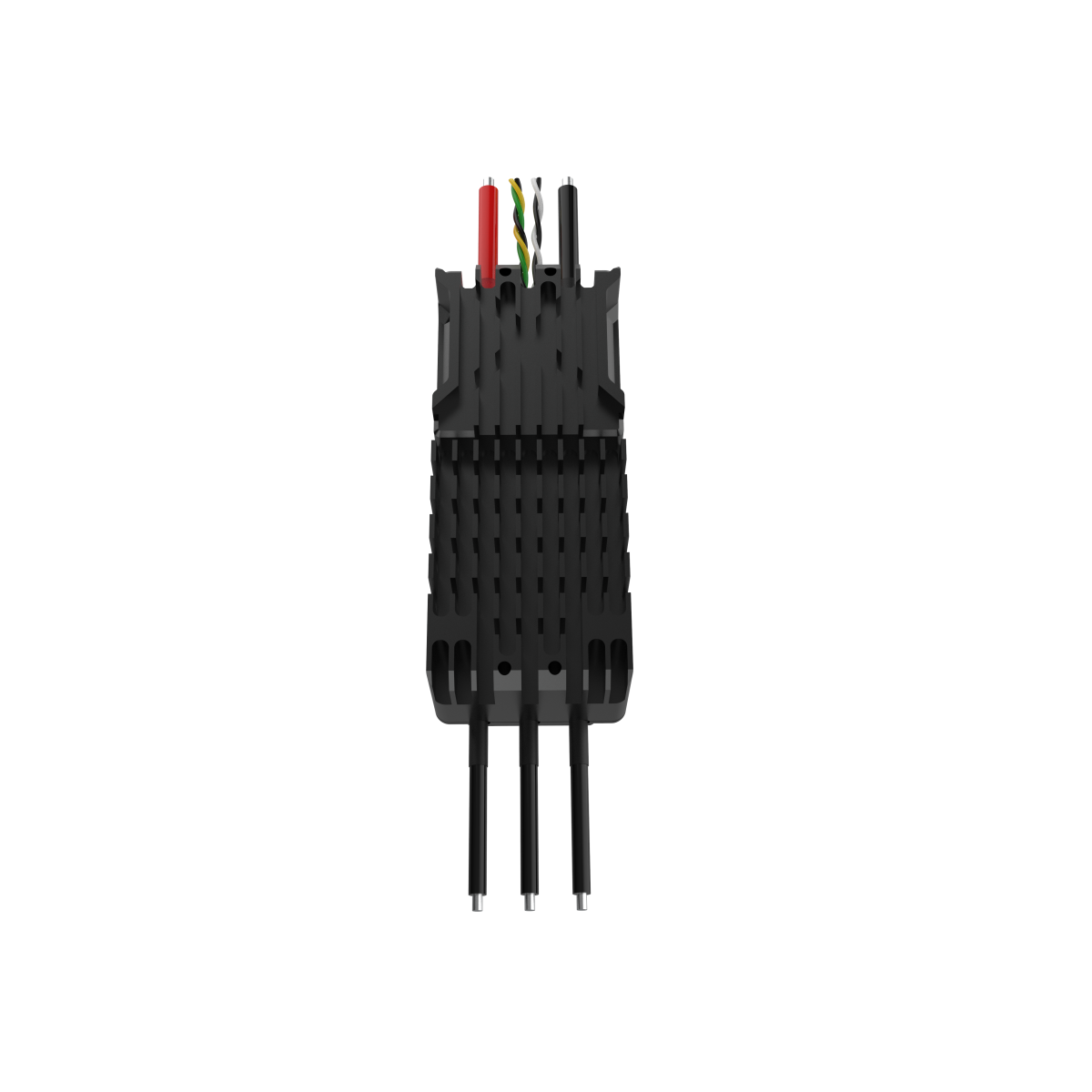

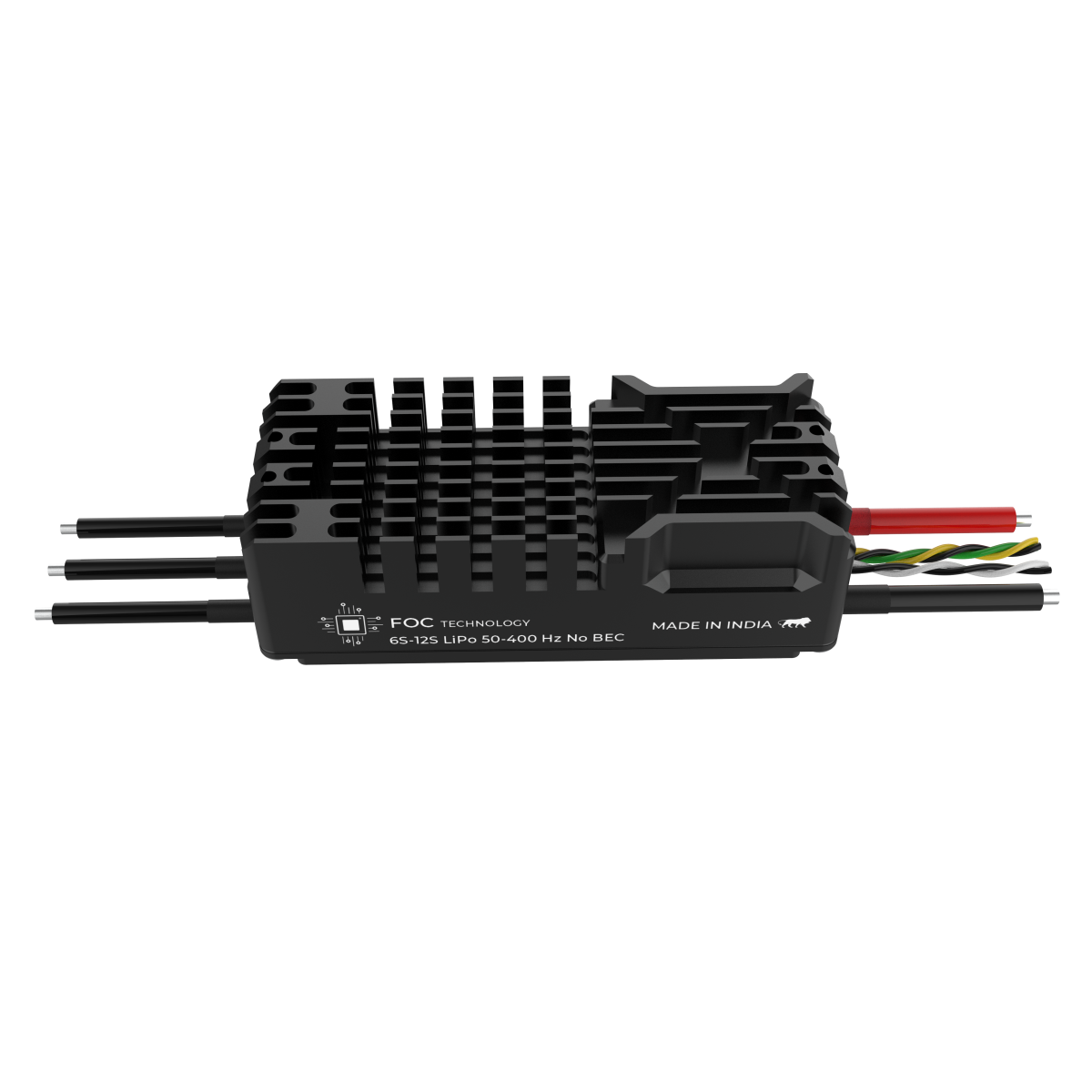

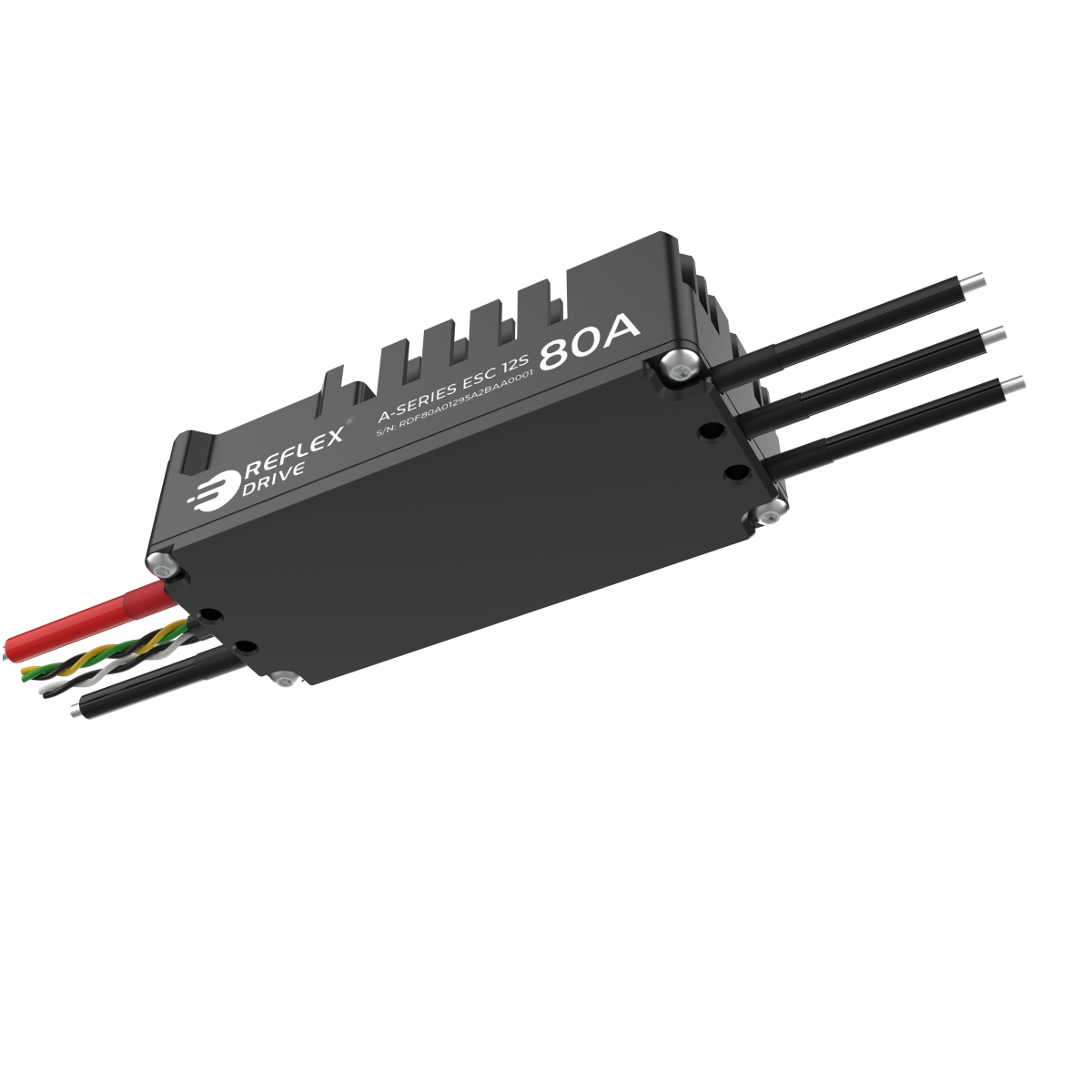

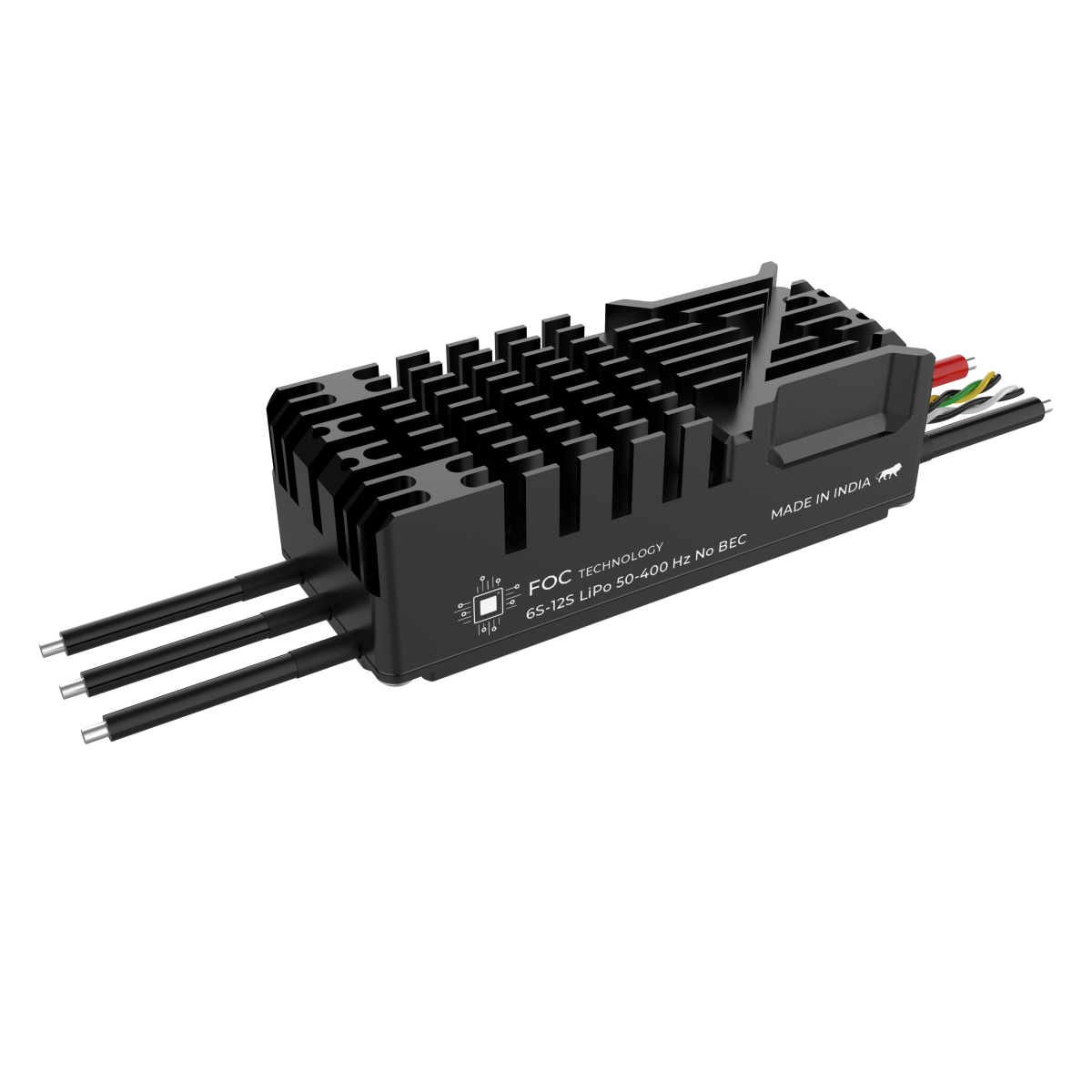

The RD A-Series FOC 80A 12S ESC is a next-generation Electronic Speed Controller (ESC) engineered for ultra-smooth, highly efficient and whisper-quiet motor control. Powered by advanced Field Oriented Control (FOC) technology to deliver precise control, it maximises torque even at very low speeds. Housed in a premium, CNC-machined aluminium enclosure, it offers superior heat dissipation and rugged protection against harsh environmental conditions, making it a strong choice for high-performance applications.
The A-Series ESC 80A is an FOC controller for 6S to 12S LiPo packs. The datasheet lists 55 A continuous current and an 80 A peak for up to 30 seconds, measured at about 30 °C with 12.5 m/s of airflow. It has no BEC, accepts PWM or CAN, supports throttle refresh from 50 to 450 Hz and reports telemetry over CAN. It suits mid-size multirotors and survey platforms, and it is a recommended match for the RD8015 115KV.
Within our FOC ESCs, the 80A sits between the RD A-Series ESC 60A (30 A continuous, 60 A peak) and the RD A-Series ESC 120A (65 A continuous, 120 A peak). Choose it when the 60A is too small for your motor but the larger models would be more than you need. All of these controllers share the same signal options and temperature range of -20 to +65 °C, so moving between them is simple. See our UAV ESCs for the full range. Contact [email protected] for help choosing a motor, ESC and propeller combination.
| S. No. | Parameter | Requirement | Remark |
| 1 | Input Voltage | 6S (22.2V) – 12S (52.2V) | |
| 2 | Continuous Current (A) | 55A | Tested at ambient temperature 29.7 ℃ at air speed of 12.5 m/s |
| 3 | Peak Current (30 s) | 80 A | Tested at ambient temperature 29.7 ℃ at air speed of 12.5 m/sec |
| 4 | BEC Output Voltage | No | – |
| 5 | Operating Ambient Temperature (℃) | (-20℃) ~(+ 65℃) | ±5℃ |
| 6 | Operating Humidity (%) | 15% ~ 85%RH | ±5%RH |
| 7 | Standby Current (at 48V) | ≤ 80mA | – |
| 8 | Throttle Range | 1050us ~ 1900us | – |
| 9 | Throttle Refresh Frequency | 50 ~ 450Hz | – |
| 10 | Input Signal | PWM & CAN | – |
| 11 | Telemetry | Over CAN only | Voltage, Current, Motor RPM, PCB Temperature, Fault status |
| 12 | Input Signal Isolation | Yes (PWM only) | |
| 13 | Braking Feature | Yes | |
| 14 | Invert Motor Spin | Yes | Using CAN |
| Maximum Peak Power | 4000 W (30 sec) | Tested at ambient temperature 29.7 ℃ at air speed of 12.5 m/s | |
| Maximum Continuous Power | 2750 W | Tested at ambient temperature 29.7 ℃ at air speed of 12.5 m/s | |
| Over Temperature Warning (OTW) | PCB temperature above 110℃ | – | |
| Stuck Rotor at Start-up | Motor stuck or can’t rotate | – | |
| Bad Motor Phase at Start-up | Motor phase not connected properly | – | |
| Over Voltage Protection (OVP) | Voltage above 67V | – | |
| Under Voltage Protection (UVP) | Voltage below 20V | – | |
| Over Current Protection (OCP) | Peak current above 120A | – | |
| Motor Phase Short Circuit | Two phases of the ESC output are electrically shorted | – | |
| Signal Loss Protection & Warning | ESC is not receiving the PWM or CAN throttle | – | |
| Protection Reporting | All protections and warnings are visible over CAN telemetry | – | |
| Input cables | Silicone wires, red/black, 12AWG, 10 cm | – | |
| Output cables | Silicone wires, black, 14AWG, 12 cm | – | |
| Signal wires | Black, white (2P), 19 cm | – | |
| CAN wires | Black, white, red (3P), 19 cm | – | |
| Enclosure | Aerospace-grade aluminium, black anodised | – | |
| Measurement Location | Data measured in Lucknow, India at an altitude of 123 m above sea level | – |
| Dimensions | 93 x 38 x 29 mm | ||
| Weight (Inc. wires) | 177 g | ||
| Control Method | Field Oriented Control (FOC) | – | |
| CAN Control | Yes | – | |
| Recommended Motors | RD6218 160KV (RD 2480 foldable); Vector 8015 pro 100KV (Vector 3010 foldable); RD8015 115KV (HW 3011 foldable) | – |
2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
