₹9,870
Per unit, for orders under 50 units, excl. GST. Discounts apply to volume orders: for 50 units or more, contact [email protected]. See the full price list
Price on requestContact [email protected] for a quote. Discounts apply to volume orders.
Pricing will be announced at launch. Contact [email protected] for availability and early orders.

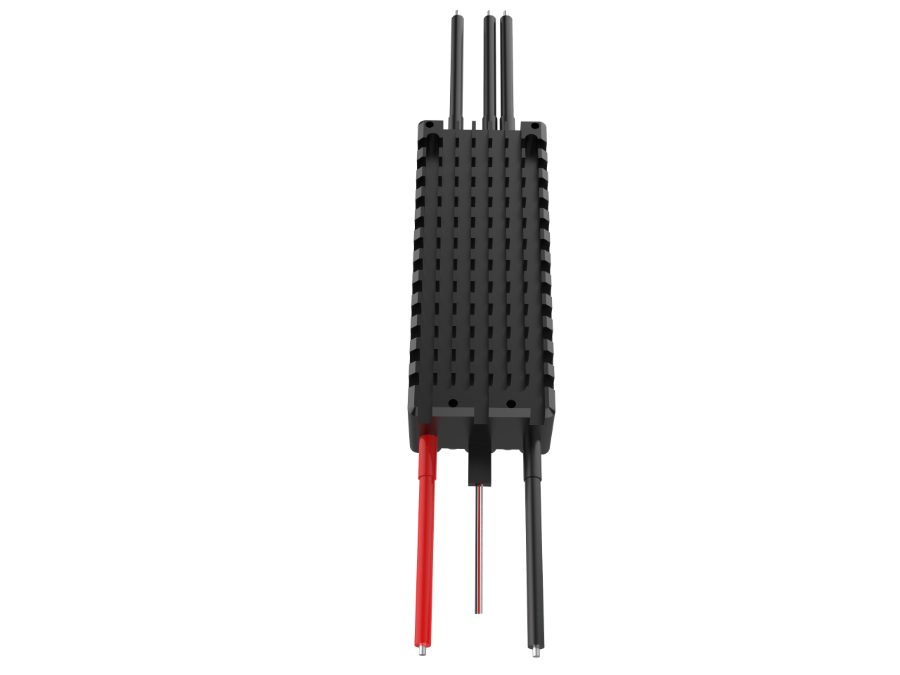

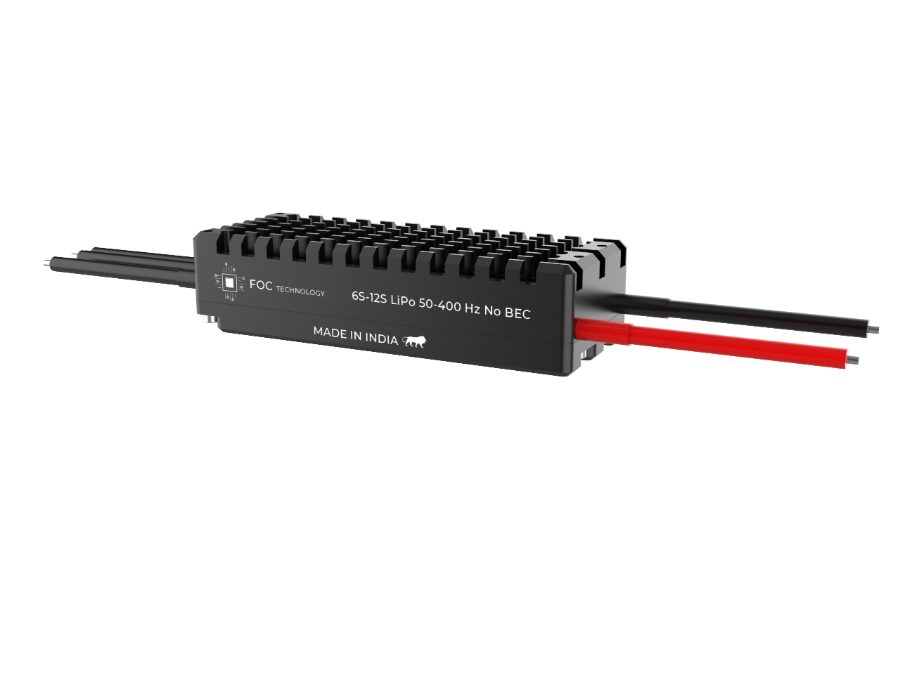

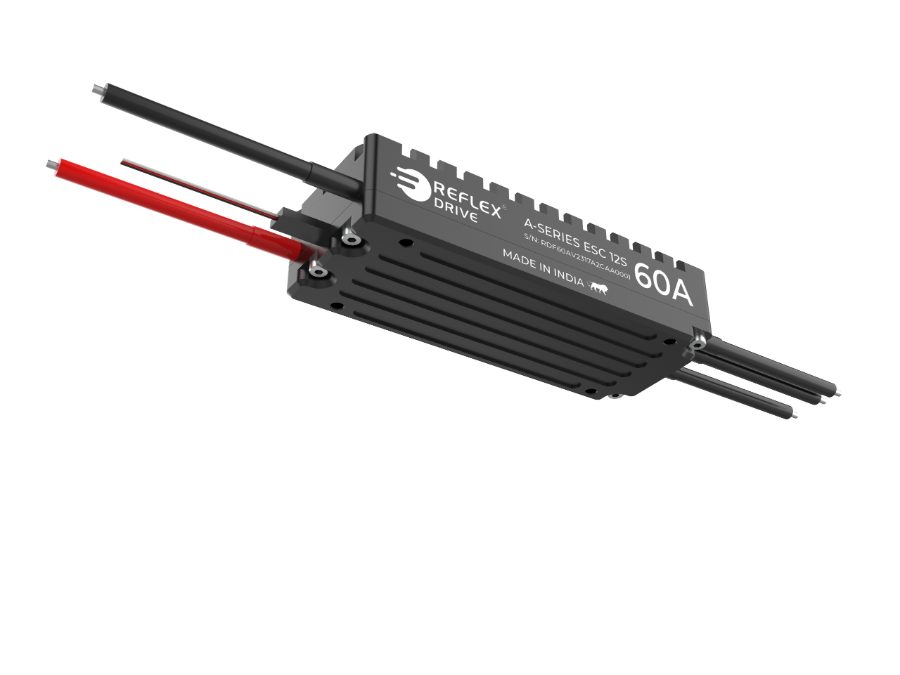

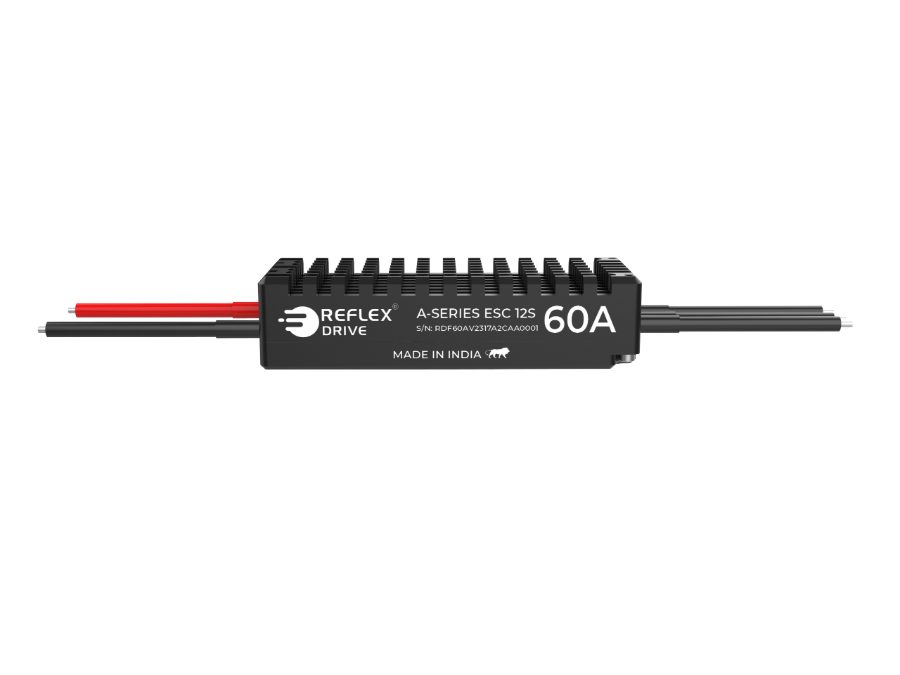

RD A-Series FOC 60A 12S ESC is an advanced Electronic Speed Controller (ESC) designed for high-performance applications. Made in India, this model significantly enhances thermal and current handling capabilities. Housed in a sleek and durable aluminium enclosure, the ESC offers excellent heat dissipation and protection against harsh environmental conditions.
The A-Series ESC 60A is the smallest FOC controller in production. It is made for 6S to 12S LiPo packs, with 30 A continuous current and a 60 A peak for 30 seconds under airflow. There is no BEC, and it accepts PWM or CAN input with telemetry over CAN. It is the recommended match for the RD7006 230KV and the RD6218 160KV, so it covers small to mid-size multirotors that want FOC’s smooth, quiet motor control.
Within our FOC ESCs, this is the entry point, followed by the RD A-Series ESC 80A (55 A continuous, 80 A peak), the RD A-Series ESC 120A and the RD A-Series ESC 150A. If you want a trapezoidal controller at a similar current level, look at the RD V-Series ESC 60A or the RD D-Pro V3 ESC 60A. Because the continuous rating depends on airflow, check cooling in your frame design. Contact [email protected] for help choosing a motor, ESC and propeller combination.
| S No. | Item | Requirement | Remark |
| 1 | Input Voltage | 6S (22.2V) – 12S (52.2V) | – |
| 2 | Continuous Current (A) | 30 A | Tested with air flow of 8.6 m/s and 30℃ ambient temperature |
| 3 | Peak Current (<30s) | 60 A (30 sec) | Tested with air flow of 9.2 m/s and 30℃ ambient temperature |
| 4 | BEC Output Voltage | No | – |
| 5 | Operating Ambient Temperature (℃) | (-20℃) ~(+ 65℃) | ±5℃ |
| 6 | Operating Humidity (%) | 15% ~ 85%RH | ±5%RH |
| 7 | Storage Temperature (℃) | (-40℃)~(+65℃) | ±5℃ |
| 8 | Storage Humidity (%) | 15%~85%RH | ±5RH |
| 9 | Standby Current | ≤ 100mA | – |
| 10 | Throttle Range | 1050us ~ 1900us | – |
| 12 | Throttle Refresh Frequency | 50 ~ 450Hz | – |
| 13 | Input Signal | PWM & CAN | – |
| 14 | Telemetry | CAN only | – |
| 15 | Input Signal Isolation | PWM Only | |
| Maximum Peak Power | 2940 W (30 sec) | Tested with air flow of 9.2 m/s and 30℃ ambient temperature | |
| Maximum Continuous Power | 1600 W | Tested with air flow of 8.6 m/s and 30℃ ambient temperature | |
| Over Temperature Warning (OTW) | 110 °C | – | |
| Stuck Rotor at Start-up | Yes | – | |
| Bad Motor Phase | Yes | – | |
| Over Voltage Protection (OVP) | 70V | – | |
| Over Current Protection (OCP) | Yes | – | |
| Signal Loss | Continuous beep (2-second interval) | – | |
| Under Voltage Protection (UVP) | 20V | – | |
| Start-up Protection | Yes | – | |
| Throttle Not Reset to Zero | Continuous beep (rapid beeping) | – | |
| Input cables | Silicone wires, red/black, 14AWG, 15 cm | – | |
| Output cables | Silicone wires, black, 14AWG, 8 cm | – | |
| Signal wires | Black, white (2P), 19 cm | – | |
| CAN wires | Black, white, red (3P), 19 cm | – | |
| Enclosure | Aluminium, black | – |
| Dimensions | 90 x 37 x 20 mm | ||
| Weight (incl. wire) | 108 g | ||
| Control Method | Field Oriented Control (FOC) | – | |
| CAN Control | Yes | – | |
| Recommended Motors | RD6218, RD7006 | – |
2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
