RD A-Series ESC 120A (FOC)

RD A-Series ESC 120A (FOC)

RD A-Series ESC 120A (FOC)

12S-120A

Product Description

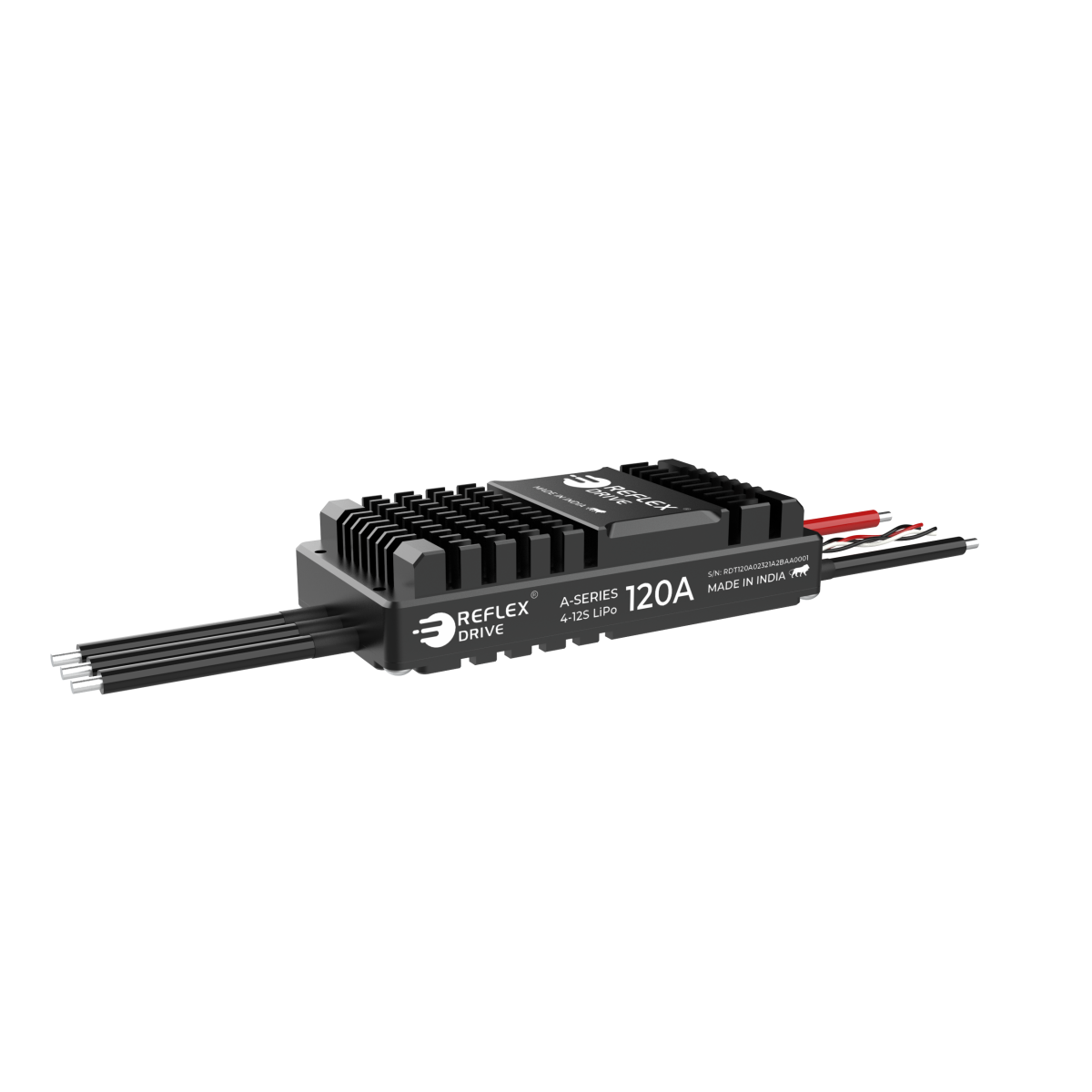

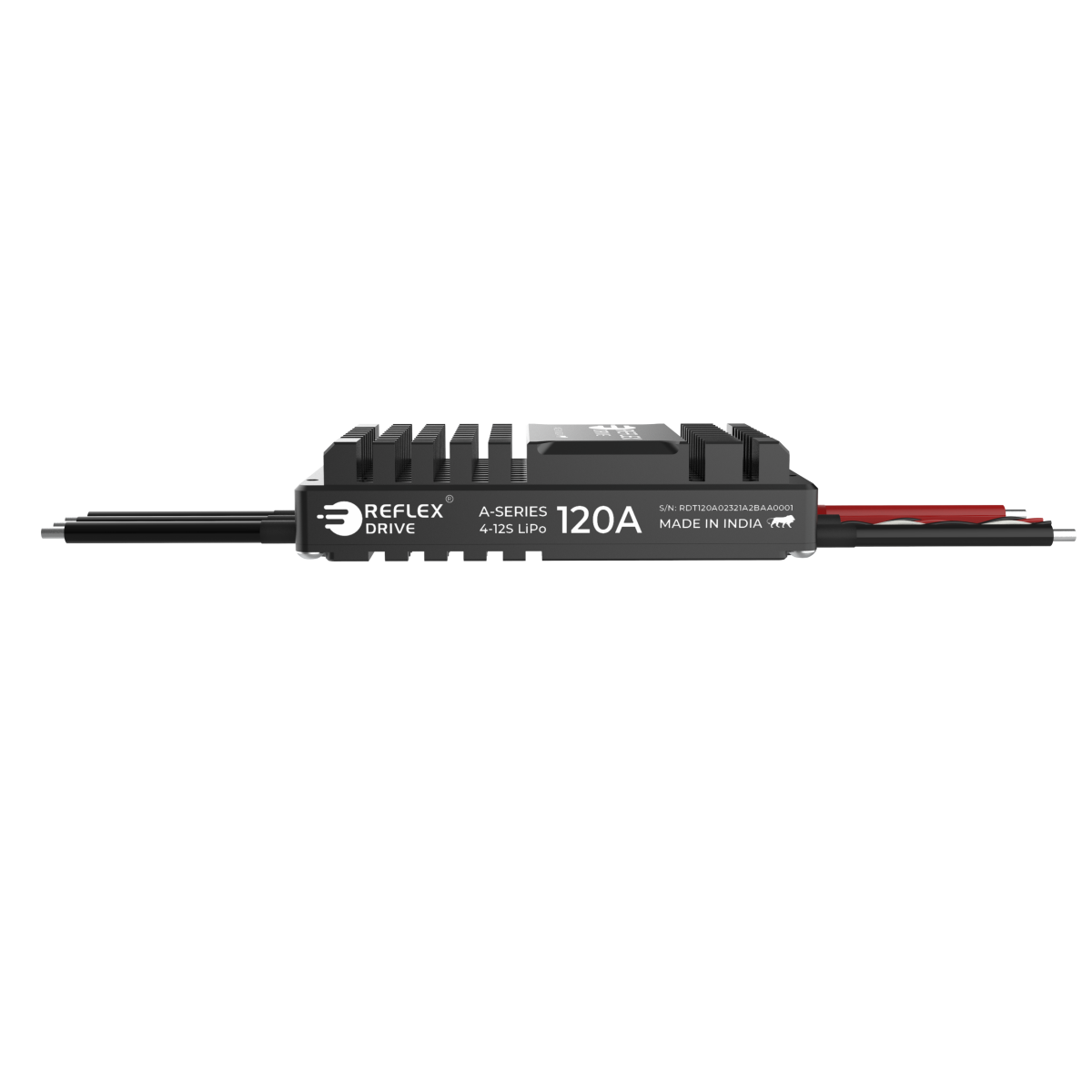

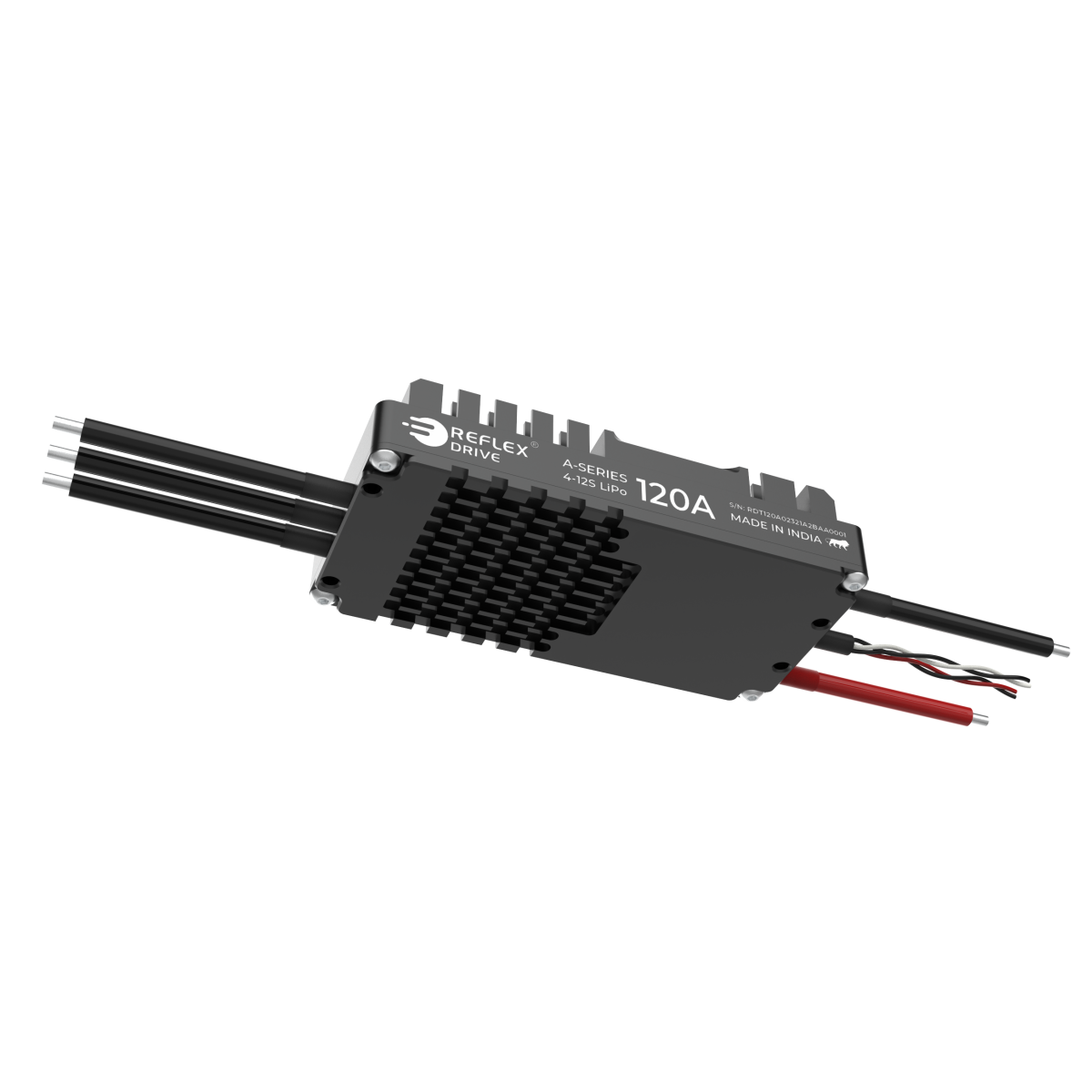

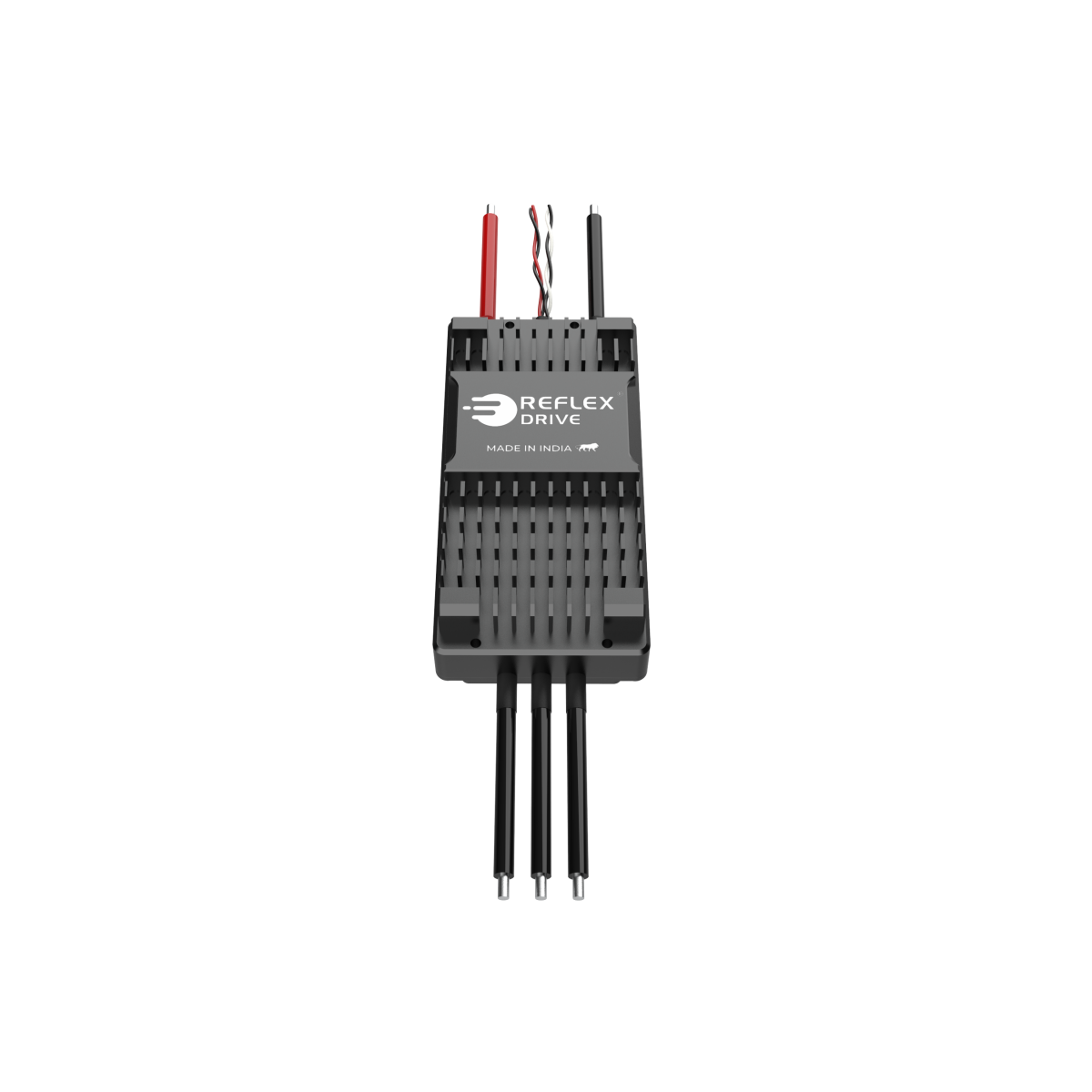

The RD A-Series ESC 120A (FOC) is a field-oriented control (FOC) electronic speed controller. FOC gives smooth, quiet operation and high torque at low speeds. The CNC-machined aluminium enclosure provides heat dissipation and protection in harsh environments. Designed and manufactured in India.

Where the A-Series 120A fits

The A-Series ESC 120A is an FOC controller for 6S to 12S LiPo packs, with 65 A continuous current and a 120 A peak for up to 30 seconds (tested at about 30 °C with 12.5 m/s of airflow). It has no BEC, accepts PWM or CAN input, supports throttle refresh from 50 to 450 Hz and reports telemetry over CAN. The 120 A peak rating makes it a good choice for mid-size multirotors that need strong take-off power, such as builds around the RD8015 115KV.

How it compares

In our FOC ESCs, the 120A is the step below the RD A-Series ESC 150A, which peaks at 150 A for 30 seconds, and above the RD A-Series ESC 80A (55 A continuous, 80 A peak). If your platform uses a trapezoidal controller today, the RD Q-Pro V2 ESC 120A is the closest option in that family. Contact [email protected] for help choosing a motor, ESC and propeller combination.

Specifications


 S. No. Parameter  Requirement  Remark
1  Input Voltage 6S~12S LiPo
2 Continuous Current (A) 65 A Tested at ambient temperature 29.7 ℃ at air speed of 12.5 m/s
3 Peak Current (30 s) 120A Tested at ambient temperature 29.7 ℃ at air speed of 12.5 m/sec
4 BEC Output Voltage No –
5 Operating Ambient Temperature (℃) (-20℃) ~(+ 65℃) ±5℃
6 Operating Humidity (ï¼…)  15% ~ 85%RH ±5%RH
7 Standby Current (at 48V) ≤ 80mA –
8 Throttle Range 1050us ~ 1900us –
9 Throttle Refresh Frequency  50 ~ 450Hz –
10 Input Signal  PWM & CAN –
11 Telemetry Over CAN only Voltage, Current, Motor RPM, PCB Temperature, Fault status
12 Input Signal Isolation Yes (PWM only)
13 Braking Feature Yes
14 Invert Motor Spin Yes Using CAN
Dimensions 103 x 50 x 24 mm
Weight (Inc. wires) 222g
Control Method Field Oriented Control (FOC) –
CAN Control Yes –
Recommended Motors RD8015 –

Engineering Data

2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
