RD2810 1250KV

RD2810 1250KV

RD2810 1250KV

1250KV | 6S

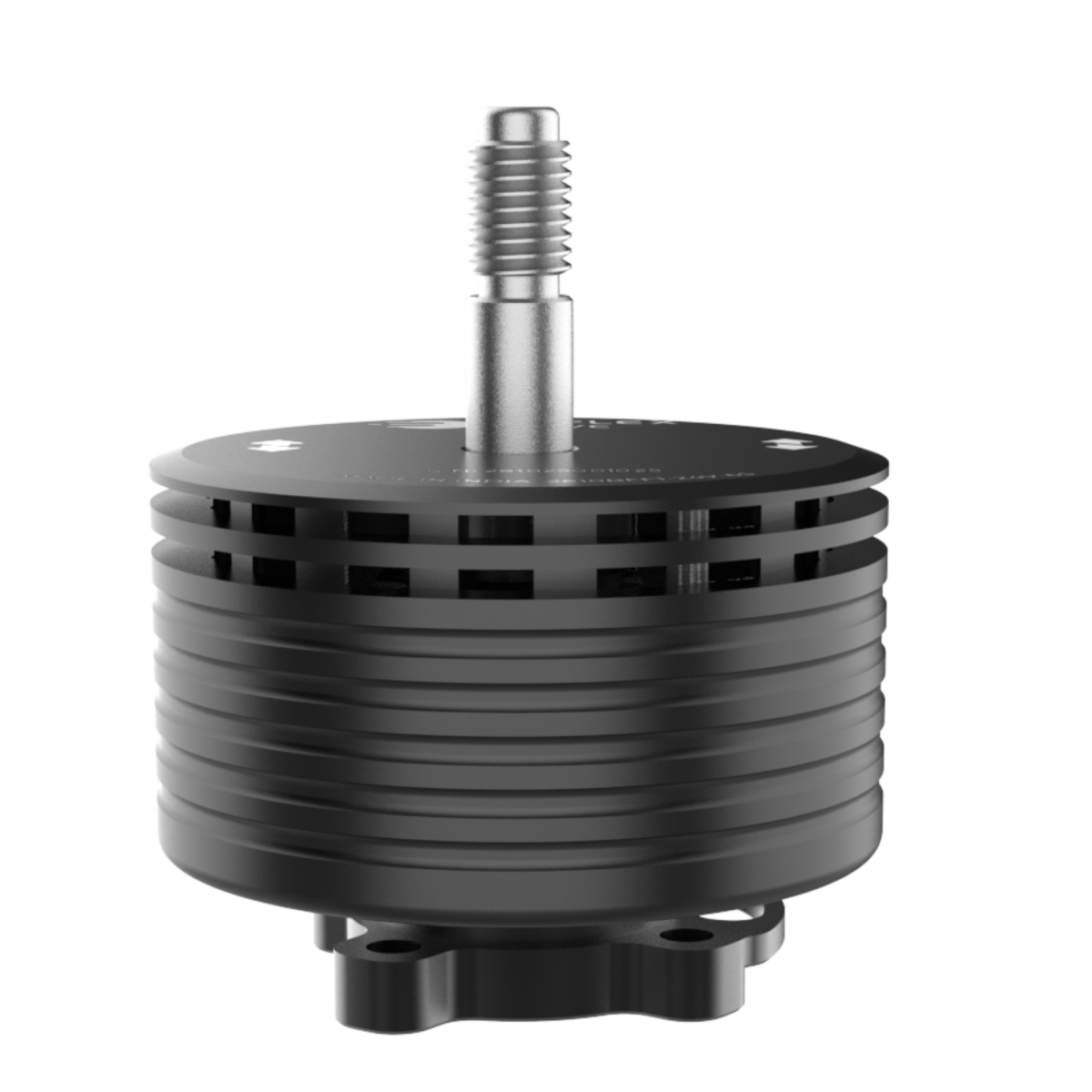

Product Description

The RD 2810 is an outrunner motor for FPV drones. It delivers smooth throttle response, high efficiency, and reliable power. It is lightweight and suited to 4S–6S LiPo setups, with precise control and consistent thrust.

Where the RD2810 fits

The RD2810 is the highest-KV motor in the Reflex Drive range. At 1250KV it is designed for 6S (24 V) systems and has a datasheet maximum thrust of 2 kgf, a maximum power of 1237 W, a 61.65 A peak current and a weight of 82 g. That profile suits small, fast multirotors and compact airframes where a short, powerful burst matters more than long endurance. The datasheet lists a recommended propeller of RD 8040.

The recommended ESC is the RD D-Pro ESC 2S-6S 40A. Because the peak current is high for the motor’s size, give the ESC and wiring good airflow.

How it compares

Among our UAV motors, the RD2810 spins faster than the RD3113 900KV (900KV, 1.85 kgf, 96 g) and much faster than the lower-KV motors such as the RD5008 340KV. If your design needs endurance, a larger propeller and lower current, a lower-KV motor is the better choice. If you need a small, quick, light powertrain, the RD2810 is the one to look at. Write to [email protected] for help with matching.

Specifications

Product name RD 2810 FPV DRONE MOTOR
Recommended Propeller RD 8040
Country of Origin India
Motor Type Outrunner
KV Rating 1250 KV
Maximum Thrust 2 kgf
Maximum Power 1237 W
Peak Current 61.65A
Weight (Incl. Wire) 82 g
Voltage Range 24V, 6S LiPo

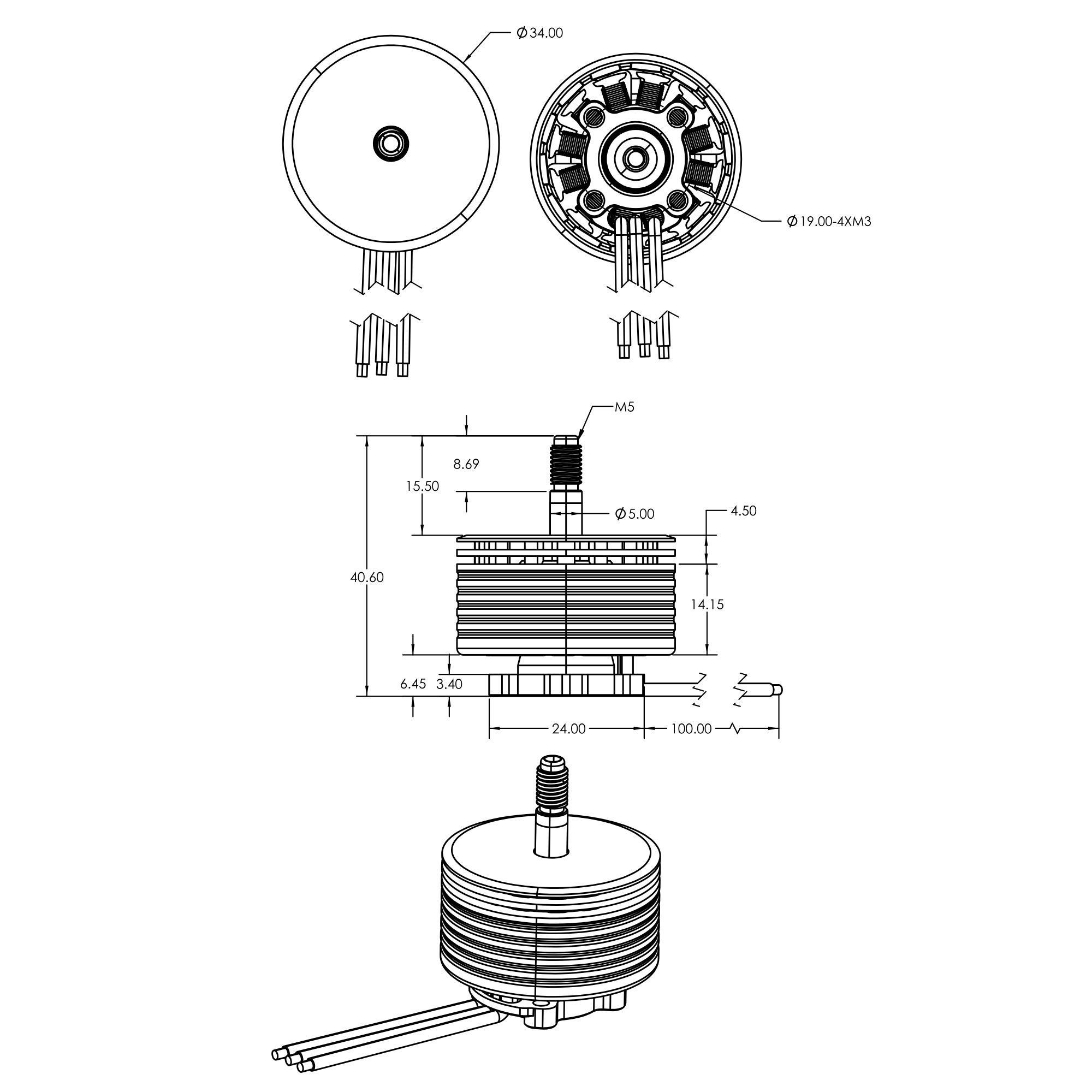

Motor Size Ø34mm x 40 mm
Stator Size Ø28 mm x 10 mm
Cable Length 100 mm
Cable Type 16 AWG
Magnet Temperature Rating 150 ℃
Shaft Diameter Ø5 mm
Winding Material 100% Copper
IP Rating IP34
Maximum Operating Temperature 60 ℃
Production Status Production
Recommended ESC D-Pro ESC 2S-6S 40A

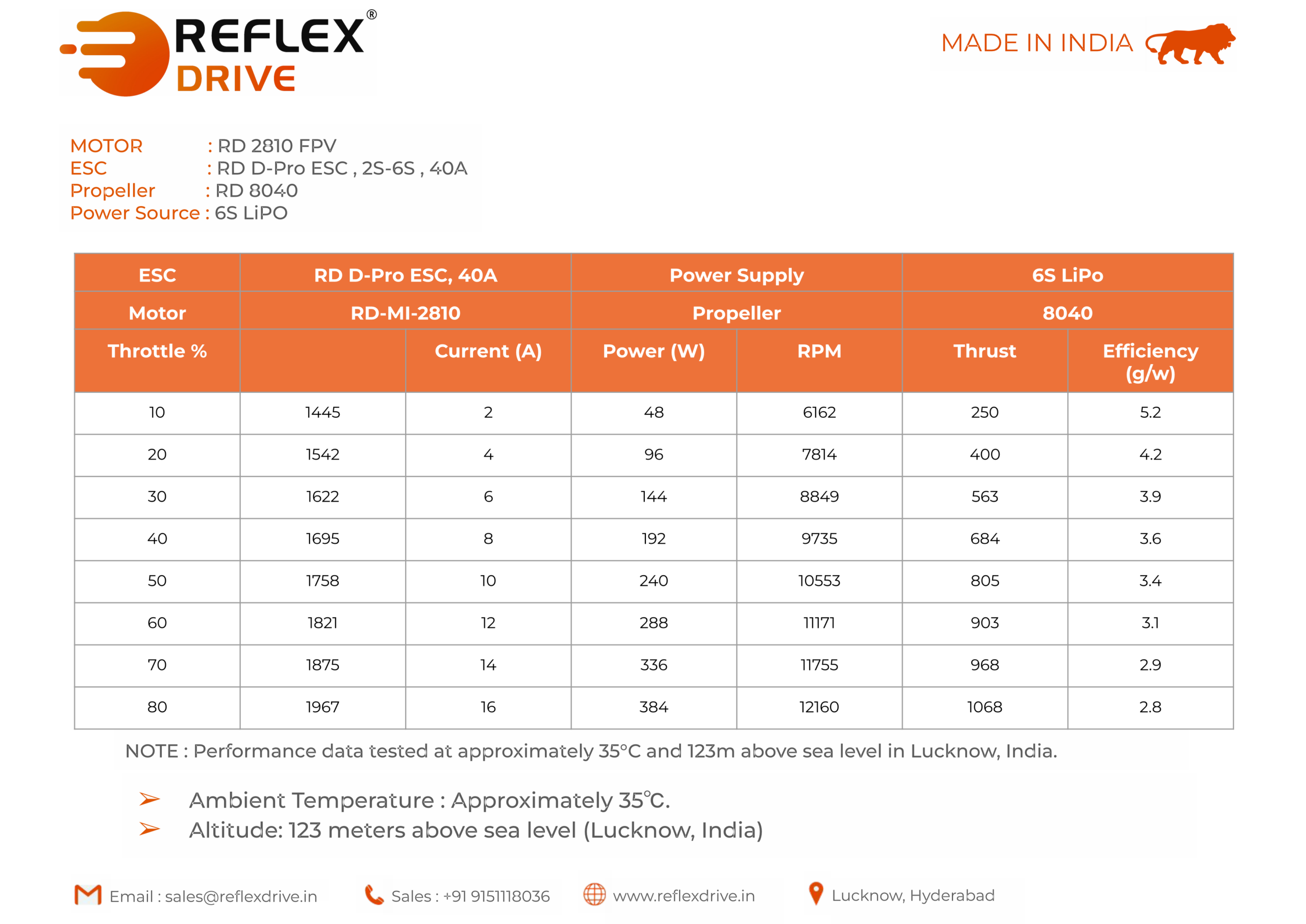

Engineering Data

ESC RD D-Pro ESC 2S-6S, 40A
Motor RD-MI-2810 FPV
Propeller RD 8040
Power source 6S LiPo
Throttle % Servo (µs) Current (A) Power (W) RPM Thrust (g) Efficiency (g/W)
10 1445 2 48 6162 250 5.2
20 1542 4 96 7814 400 4.2
30 1622 6 144 8849 563 3.9
40 1695 8 192 9735 684 3.6
50 1758 10 240 10553 805 3.4
60 1821 12 288 11171 903 3.1
70 1875 14 336 11755 968 2.9
80 1967 16 384 12160 1068 2.8

Performance data tested at approximately 35 °C and 123 m above sea level in Lucknow, India.

2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
