RD A-Series ESC 150A (FOC)

RD A-Series ESC 150A (FOC)

RD A-Series ESC 150A (FOC)

12S-150A

Product Description

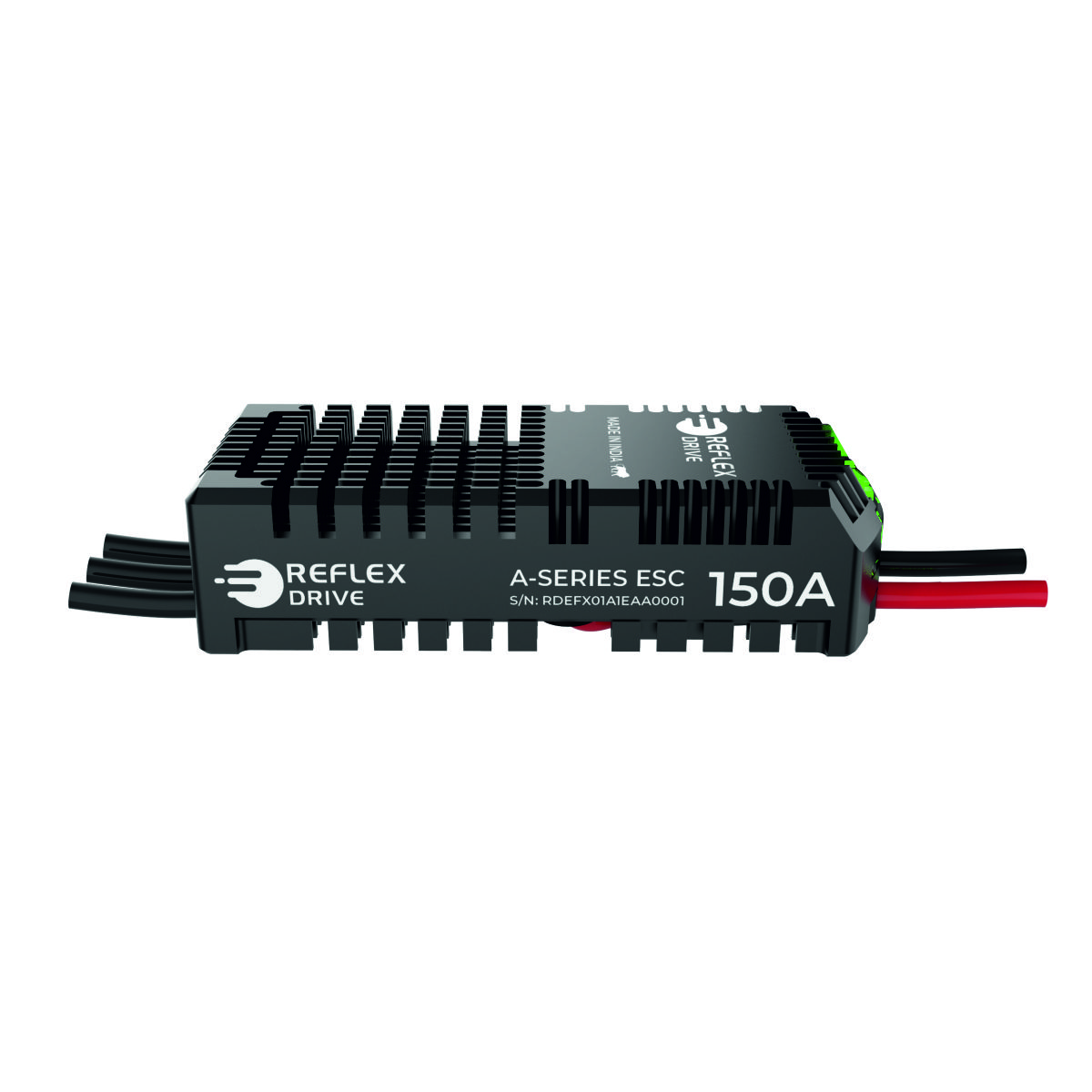

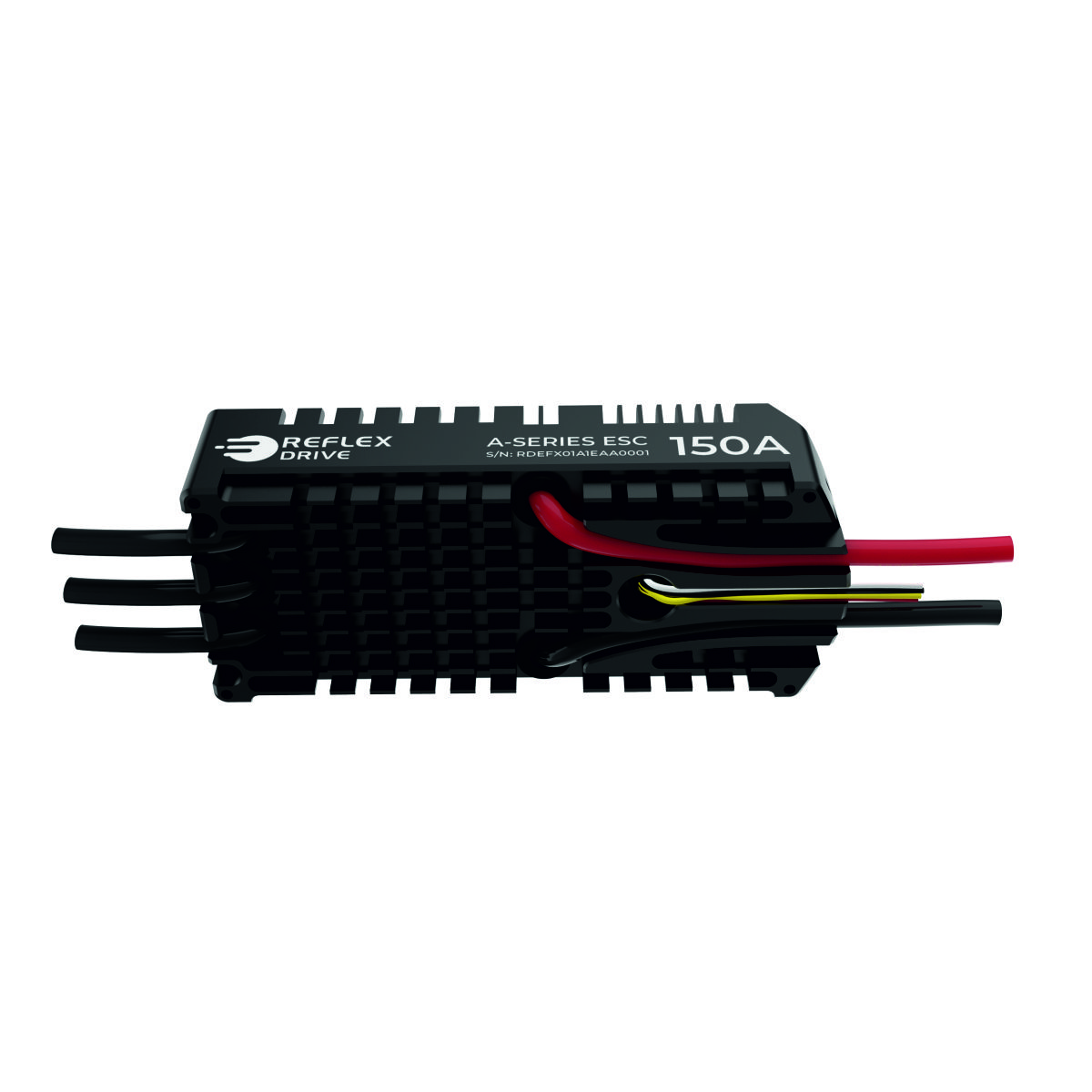

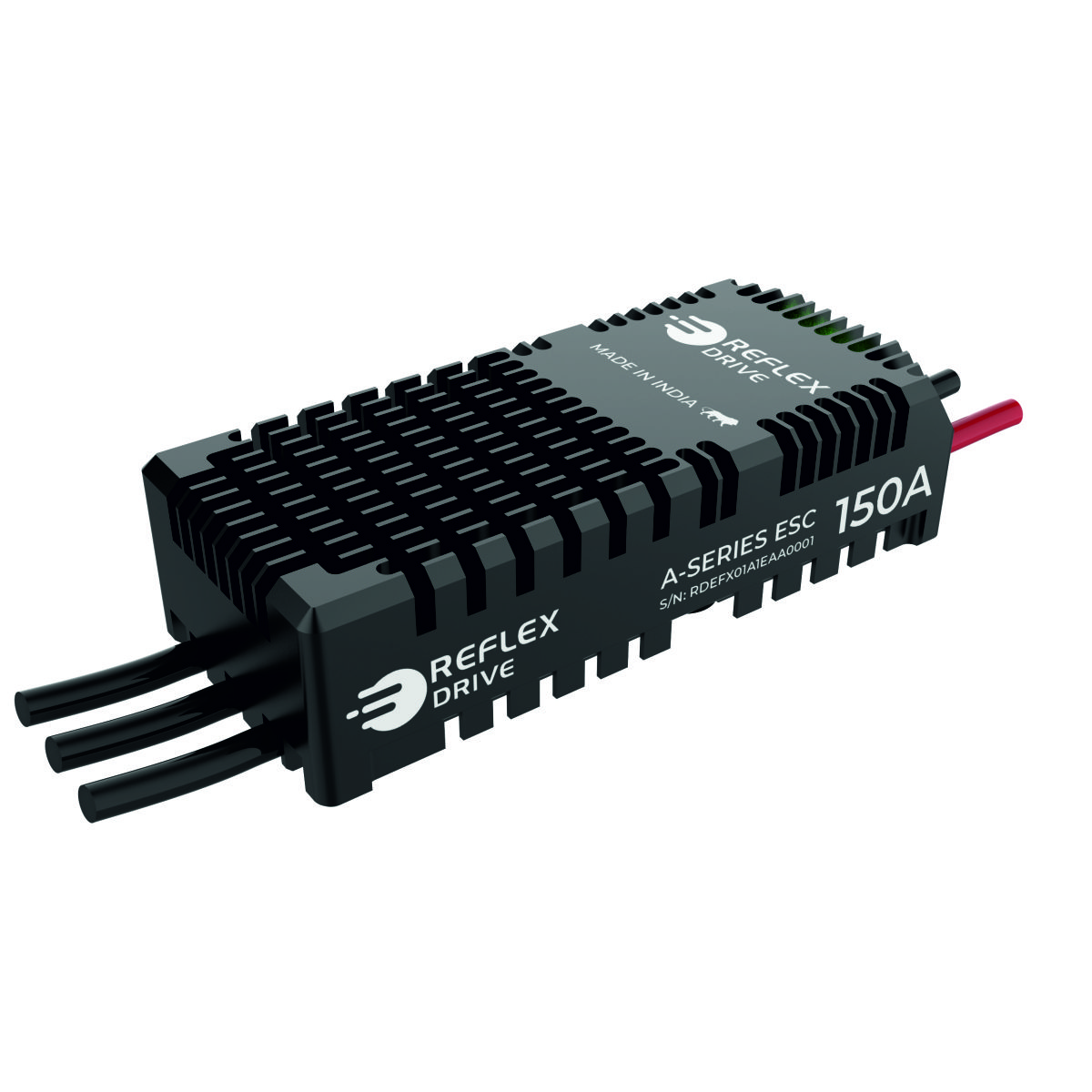

The RD A-Series ESC 150A (FOC) is a field-oriented control (FOC) electronic speed controller. FOC gives smooth, quiet operation and high torque at low speeds. It is rated for 6S to 12S LiPo input, 75 A continuous and 150 A peak (30 s). The CNC-machined aluminium enclosure provides heat dissipation and protection in harsh environments. Designed and manufactured in India.

Where the A-Series 150A fits

The A-Series ESC 150A is the highest-rated ESC in our FOC range that is in production. It accepts 6S to 12S LiPo, carries 75 A continuous and 150 A peak for under 30 seconds (tested at about 30 °C with 12.5 m/s of airflow), and has no BEC. It takes a PWM or CAN input, supports throttle refresh from 50 to 450 Hz, and returns telemetry over CAN. It is meant for heavy-lift and long-endurance multirotors where a motor like the RD8030 160KV needs a controller that can ride out high peak current.

How it compares

Field-oriented control (FOC) drives the motor with smoother current than trapezoidal commutation, which usually means quieter operation and better efficiency at low throttle. Within our FOC ESCs, the 150A is the top peak rating; the RD A-Series ESC 120A peaks at 120 A, the RD A-Series ESC 80A at 80 A and the RD A-Series ESC 60A at 60 A. Choose it for the largest motors in our UAV motors range. Operating temperature is -20 to +65 °C, so allow cooling airflow in hot conditions. Contact [email protected] for help choosing a motor, ESC and propeller combination.

Specifications

 S. No. Parameter  Requirement  Remark
1  Input Voltage 6S~12S LiPo
2 Continuous Current (A) 75A Tested at ambient temperature 30.2 ℃ at air speed of 12.5 m/sec
3 Peak Current (<30s) 150A Tested at ambient temperature 29.7 ℃ at air speed of 12.5 m/sec
4 BEC Output Voltage No –
5 Operating Ambient Temperature (℃) (-20℃) ~(+ 65℃) ±5℃
6 Operating Humidity (%)  15% ~ 85%RH ±5%RH
7 Standby Current (at 48V) ≤ 80mA –
8 Throttle Range 1050us ~ 1900us –
9 Throttle Refresh Frequency  50 ~ 450Hz –
10 Input Signal  PWM & CAN –
11 Telemetry Over CAN only Voltage, Current, Motor RPM, PCB Temperature, Fault status
12 Input Signal Isolation Yes (PWM only)
13 Braking Feature Yes
14 Invert Motor Spin Yes Using CAN
Dimensions 137.41 x 56.23 x 33.95 mm
Weight (Inc. wires) 400g
Control Method Field Oriented Control (FOC) –
CAN Control Yes –
Recommended Motors RD8030 –

Engineering Data

ESC RD A-Series 150A (FOC)
Motor 10025 drone motor
Propeller 30 inch
Power source 54.88 V SMPS
PWM (µs) Current (A) RPM Thrust (g) Voltage (V) Power (W) ESC temp (°C)
1200 0.5 510 253 54.83 27.4 32.1
1300 1.51 1231 1448.7 54.77 83.1 32.1
1400 5.23 1943 3640 54.72 283.8 32.0
1500 11.86 2697 6701.8 54.52 647 32.0
1600 23.33 3397 9674 54.24 1265.7 33.0
1700 39.78 4115 14963 53.85 2142.5 37.4
1800 67.48 4859 21059 53.27 3595.2 39.7
1900 154 5592 27523 51.4 7910 42.5

Final ESC temperature: 44.6 °C.

2D CAD, 3D CAD files and datasheets for this product are available in the Downloads section.
